audioEnvelope

Compute envelope of an audio file

Since R2023a

collapse all in page

    Syntax

    [minEnv,maxEnv] = audioEnvelope(audioIn)
    [minEnv,maxEnv] = audioEnvelope(filename)
    [minEnv,maxEnv] = audioEnvelope(___,Name=Value)
    [minEnv,maxEnv,loc] = audioEnvelope(___)
    [minEnv,maxEnv,loc,fs] = audioEnvelope(___)
    audioEnvelope(___)

    Description

    example

    [minEnv,maxEnv] = audioEnvelope(audioIn) returns the envelope of the input audio signal. The audio envelope contains maximum and minimum values over nonoverlapping frames of the input signal, and it approximates the shape of the waveform.

    example

    [minEnv,maxEnv] = audioEnvelope(filename) returns the envelope of the audio file.

    example

    [minEnv,maxEnv] = audioEnvelope(___,Name=Value) specifies options using one or more name-value arguments. For example, audioEnvelope(filename,Range=[1000, 5000]) computes the envelope of the signal from samples 1000 through 5000 in the audio file.

    example

    [minEnv,maxEnv,loc] = audioEnvelope(___) also returns the locations of the envelope frames within the original signal.

    example

    [minEnv,maxEnv,loc,fs] = audioEnvelope(___) also returns the sample rate of the audio signal.

    example

    audioEnvelope(___) with no output arguments plots the audio envelope.

    Examples

    collapse all

    Open Live Script

    Compute the envelope of a file containing a 10-minute audio signal.

    [envMin,envMax] = audioEnvelope("SoftGuitar-44p1_mono-10mins.ogg");

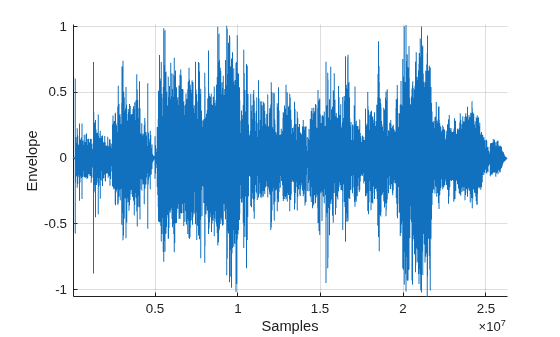

    Plot the envelope by calling audioEnvelope with no output arguments.

    audioEnvelope("SoftGuitar-44p1_mono-10mins.ogg")

    Open Live Script

    Read in a 10-minute audio signal from a file.

    [audioIn,fs] = audioread("SoftGuitar-44p1_mono-10mins.ogg");

    Compute the audio envelope of the signal.

    [envMin,envMax] = audioEnvelope(audioIn);

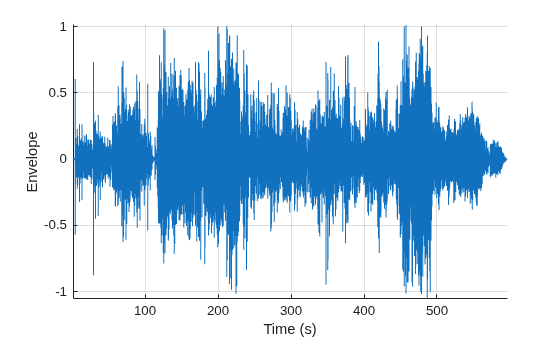

    Call audioEnvelope with no output arguments to plot the envelope.

    audioEnvelope(audioIn)

    Specify the SampleRate of the signal to see time on the x-axis of the plot instead of samples.

    audioEnvelope(audioIn,SampleRate=fs)

    Open Live Script

    Compute the envelope from samples 5000 to 10,000 of the audio file. Set the number of points in the envelope to be 500.

    [envMin,envMax] = audioEnvelope("Counting-16-44p1-mono-15secs.wav", ...
                                Range=[5000, 10000],NumPoints=500);

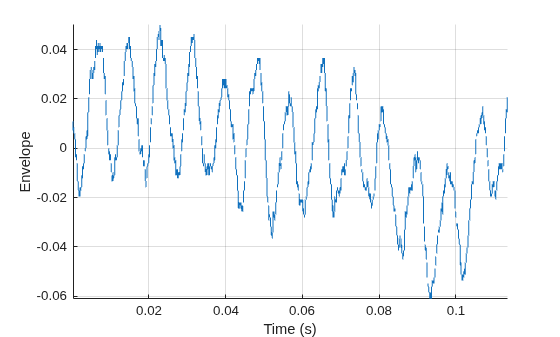

    Plot the envelope of the specified size and range.

    audioEnvelope("Counting-16-44p1-mono-15secs.wav", ...
    Range=[5000, 10000],NumPoints=500);

    Open Live Script

    Compute the envelope of an audio file. Specify additional output arguments to obtain the locations of the envelope frames and the sample rate of the audio signal.

    [minEnv,maxEnv,loc,fs] = audioEnvelope("SoftGuitar-44p1_mono-10mins.ogg");

    Use the sample rate to convert the frame locations from samples to seconds.

    loc = loc./fs;

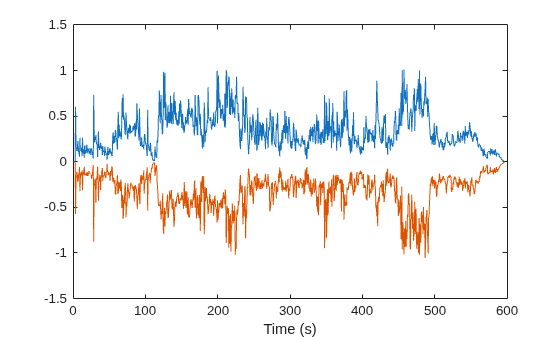

    Plot the maximum and minimum values of the envelope with the time of the original audio signal on the x-axis.

    plot(loc,maxEnv,loc,minEnv)
xlabel("Time (s)")

    Input Arguments

    collapse all

    Audio input signal, specified as a column vector or matrix. If the input is a matrix, the columns are treated as individual channels.

    Data Types: single | double

    Name of the audio file, specified as a string scalar or character vector. audioEnvelope accepts the same file formats as audioread.

    Data Types: char | string

    Name-Value Arguments

    Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

    Example: audioEnvelope(audioIn,NumPoints=5000)

    Number of points in the audio envelope, specified as a positive integer.

    Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

    Range of the envelope in samples, specified as a row vector of two positive integers. The range specifies the start and end indices into the input signal that define the region over which to compute the envelope. The default range is the entire input signal.

    Example: Range=[1000, 2000]

    Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

    Sample rate in Hz, specified as a positive scalar.

    You can use this name-value argument only when the input is a numeric array. If the input is a file name, the function derives the sample rate from the audio file information.

    Data Types: single | double

    Output Arguments

    collapse all

    Minimum values of the envelope, returned as a NumPoints-by-C matrix, where C is the number of channels in the input signal. The values are the minimums over nonoverlapping frames in the input signal. The frame size is equal to floor(L/NumPoints), where L is the length of the signal.

    Maximum values of the envelope, returned as a NumPoints-by-C matrix, where C is the number of channels in the input signal. The values are the maximums over nonoverlapping frames in the input signal. The frame size is equal to floor(L/NumPoints), where L is the length of the signal.

    Frame locations, returned as a row vector of length NumPoints. The locations are indices into the input signal of the most recent sample of each frame.

    Sample rate of the input signal in Hz, returned as a positive scalar.

    If you specify the input signal as a numeric array instead of a file and do not specify the SampleRate argument, then the sample rate is returned as 1.
