Audio Plugin

Include audio plugin in model

Since R2022b

Libraries:
Audio Toolbox / User-Defined Functions

Description

The Audio Plugin block allows you to use an audio plugin as a block in your Simulink^® model. The Audio Plugin block generates a new block that has the same functionality as the desired plugin, and you can use the generated block to process audio signals in Simulink. For more information about audio plugins in MATLAB^®, see Audio Plugins in MATLAB.

Using the Block

To use the Audio Plugin block, place the block in your model and double-click it to open the dialog box.

Specify the desired audio plugin in the Audio plugin field. You can specify the audio plugin as:

The name or file path of an audio plugin class. The class must derive from audioPlugin or audioPluginSource.
An audio plugin binary file that is supported by loadAudioPlugin.
An instance of an audio plugin class. This can either be a plugin authored in MATLAB or an externally authored plugin that is returned by loadAudioPlugin.

The Audio Plugin block generates a System object™ class file from the plugin and uses that System object to create the new block. You can optionally specify the file name and location of the generated System object with the Generated file name field. For more information about how the Audio Plugin block works and the System object it generates, see Algorithms.

Note

The generated System object file must be on the MATLAB path for the plugin block to work. If the plugin is a hosted external plugin, the block generates additional files required by the generated System object. For more information, see Code Generation.

After you specify an audio plugin and click OK, you have a block with the same functionality as the audio plugin.

For an example with a model that uses the Audio Plugin block, see Include an Audio Plugin in Simulink.

Generated Block Parameters

The generated block has the same parameters as the specified audio plugin. These parameters are tunable, unless the parameter is an enumeration class that uses strings or characters as the underlying type. Each tunable parameter can be specified from an input port if you select the associated Specify parameter from input port parameter, where parameter is the name of the tunable parameter.

Note

For audio plugins authored in MATLAB, a parameter must be specified as an audioPluginParameter in the plugin's audioPluginInterface for it to show in the block.

In addition to the parameters of the original plugin, the generated block has other, nontunable parameters that depend on whether the plugin is a source plugin or not. See Parameters for more information.

Examples

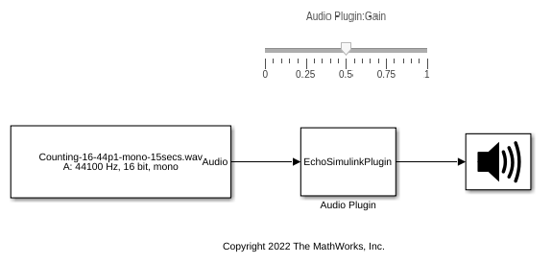

Use Generated Audio Plugin Block in Model

Use the plugin in a model to process an audio signal and listen to the results. Add a Slider (Simulink) block to the model to tune the gain parameter of the plugin during simulation.

Open Model

Limitations

Some Simulink functionality, such as Step Back, requires saving and restoring the simulation state. Blocks that use hosted external plugins do not support simulation save and restore and therefore do not support associated functionality. For tips on using simulation save and restore functionality with blocks that use plugins authored in MATLAB, see Tips.

Ports

Input

expand all

x — Plugin input
column vector | matrix

The block input is the same as the original audio plugin input and accepts the same data types. If the original plugin takes multiple inputs, the block has multiple input ports. The block has additional input ports if you select any of the Specify parameter from input port parameters, where parameter is the name of a tunable parameter.

The block does not have an input port if the original plugin is a source plugin. Source plugins derive from audioPluginSource or externalAudioPluginSource.

Note

For audio plugins authored in MATLAB, the number of inputs and the number of channels per input are defined by the InputChannels property in the plugin's audioPluginInterface.

Output

expand all

y — Plugin output
scalar | column vector | matrix

The block output is the same as the original audio plugin and returns the same data types. If the original plugin returns multiple outputs, the block has multiple output ports.

Note

For audio plugins authored in MATLAB, the number of outputs and the number of channels per output are defined by the OutputChannels property in the plugin's audioPluginInterface.

Parameters

expand all

Note

These parameters are not part of the block until after you specify an audio plugin in the dialog box.

Inherit sample rate from input — Specify source of input sample rate
`off` (default) | `on`

When you select this parameter, the block inherits its sample rate from the input signal. When you clear this parameter, you specify the sample rate in Input sample rate (Hz).

The block does not have this parameter if the audio plugin is a source plugin.

Input sample rate (Hz) — Sample rate of input
positive scalar

Sample rate of the input, specified as a positive scalar. The default is what the getSampleRate method returns for the original audio plugin.

The block does not have this parameter if the audio plugin is a source plugin.

Dependencies

To enable this parameter, clear the Inherit sample rate from input parameter.

Samples per frame — Number of samples per frame
positive integer

Number of samples per frame output by the block, specified as a positive scalar. The default is what the getSamplesPerFrame method returns for the original audio plugin.

The block has this parameter only if the audio plugin is a source plugin.

Output data type — Data type of output signal
`double` (default) | `single`

Data type of the output signal, specified as double or single.

The block has this parameter only if the audio plugin is a source plugin.

Sample rate (Hz) — Sample rate of output signal
positive scalar

Sample rate of the output signal, specified as a positive scalar. The default value of this parameter is the sample rate that the getSampleRate method returns for the original audio plugin.

The block has this parameter only if the audio plugin is a source plugin.

Simulate using — Specify type of simulation to run
`Code generation` (default) | `Interpreted execution`

Interpreted execution –– Simulate model using the MATLAB interpreter. This option shortens startup time but has a slower simulation speed than Code generation. In this mode, you can debug the source code of the block.
Code generation –– Simulate model using generated C code. The first time you run a simulation, Simulink generates C code for the block. The C code is reused for subsequent simulations as long as the model does not change. This option requires additional startup time, but the speed of the subsequent simulations is comparable to Interpreted execution.

Block Characteristics

Data Types	`Boolean^a` \| `bus^b^a` \| `double^a` \| `enumerated^a` \| `fixed point^a` \| `half^a` \| `integer^a` \| `single^a` \| `string^a`
Direct Feedthrough	`no`
Multidimensional Signals	`yes^a`
Variable-Size Signals	`yes^c^a`
Zero-Crossing Detection	`no`
^a Actual data type or capability support depends on block implementation. ^b See Nonvirtual Buses and MATLAB System Block for more information. ^c See Variable-Size Signals for more information.

Tips

To use Simulink functionality that requires saving and restoring the simulation state, such as Step Back, with a block that uses a plugin authored in MATLAB, the original plugin implementation must correctly save and load its state.

If the original plugin is a System object, it must correctly save and load its state using the saveObjectImpl and loadObjectImpl methods.
If the original plugin is an audioPlugin and not a System object plugin, it must correctly save and load its state using the saveobj and loadobj methods.

Note

If the original plugin does not maintain any state, no additional considerations are necessary for the save and restore functionality.

Algorithms

The Audio Plugin block generates the code for a System object class from the specified audio plugin using the generateSimulinkAudioPlugin function. generateSimulinkAudioPlugin designs the System object to be compatible with Simulink through the MATLAB System (Simulink) block. The Audio Plugin block then uses the MATLAB System block to create a new block from the generated System object with the same parameters and functionality as the original audio plugin.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Generating code from blocks that use external audio plugins has additional requirements. External audio plugins include plugins loaded into MATLAB with loadAudioPlugin and plugin binaries such as VST plugins.

The Audio Plugin block generates files in addition to the System object file to aid in code generation. These files include sysObjNamePluginLoader.m and sysObjNameInterface.m where sysObjName is the name of the generated System object. The block also generates sysObjNameTables.mat if the plugin has any parameters. These additional files are required for code generation and running the block in simulation.
You must select the Support long long (Simulink) parameter in the Hardware Implementation pane of the Model Settings.
If you are using an ERT target, you must set the Language (Simulink Coder) parameter to C++ under the Target selection section of the Code Generation pane in the Model Settings. You must also select the Dynamic memory allocation in MATLAB functions (Simulink) parameter in the Advanced parameters section of the Simulation Target pane.
To use a standalone executable generated from a block with an external plugin, you must generate the jucehost.dll file on Windows^® or the libjucehost.dylib file on macOS by selecting the Package code and artifacts (Simulink Coder) parameter under the Build process section of the Code Generation pane in the Model Settings.
- On Windows platforms, you must make the jucehost.dll file visible to the standalone executable. To do this, add the path to the jucehost.dll file to the PATH environment variable or copy the jucehost.dll file to the same folder as the standalone executable.
- On macOS platforms, you must make the libjucehost.dylib file visible to the standalone executable. To do this, place the libjucehost.dylib file in the /usr/lib directory.

Hosted AUv3 plugins do not support code generation.

Version History

Introduced in R2022b
