Speaker Verification Using i-vectors

Open Live Script

Speaker verification, or authentication, is the task of confirming that the identity of a speaker is who they purport to be. Speaker verification has been an active research area for many years. An early performance breakthrough was to use a Gaussian mixture model and universal background model (GMM-UBM) [1] on acoustic features (usually mfcc). For an example, see Speaker Verification Using Gaussian Mixture Model. One of the main difficulties of GMM-UBM systems involves intersession variability. Joint factor analysis (JFA) was proposed to compensate for this variability by separately modeling inter-speaker variability and channel or session variability [2] [3]. However, [4] discovered that channel factors in the JFA also contained information about the speakers, and proposed combining the channel and speaker spaces into a total variability space. Intersession variability was then compensated for by using backend procedures, such as linear discriminant analysis (LDA) and within-class covariance normalization (WCCN), followed by a scoring, such as the cosine similarity score. [5] proposed replacing the cosine similarity scoring with a probabilistic LDA (PLDA) model. [11] and [12] proposed a method to Gaussianize the i-vectors and therefore make Gaussian assumptions in the PLDA, referred to as G-PLDA or simplified PLDA. While i-vectors were originally proposed for speaker verification, they have been applied to many problems, like language recognition, speaker diarization, emotion recognition, age estimation, and anti-spoofing [10]. Recently, deep learning techniques have been proposed to replace i-vectors with d-vectors or x-vectors [8] [6].

Use an i-vector System

Audio Toolbox provides ivectorSystem which encapsulates the ability to train an i-vector system, enroll speakers or other audio labels, evaluate the system for a decision threshold, and identify or verify speakers or other audio labels. See ivectorSystem for examples of using this feature and applying it to several applications.

To learn more about how an i-vector system works, continue with the example.

Develop an i-vector System

In this example, you develop a standard i-vector system for speaker verification that uses an LDA-WCCN backend with either cosine similarity scoring or a G-PLDA scoring.

Throughout the example, you will find live controls on tunable parameters. Changing the controls does not rerun the example. If you change a control, you must rerun the example.

Data Set Management

This example uses the Pitch Tracking Database from Graz University of Technology (PTDB-TUG) [7]. The data set consists of 20 English native speakers reading 2342 phonetically rich sentences from the TIMIT corpus. Download and extract the data set.

downloadFolder = matlab.internal.examples.downloadSupportFile("audio","ptdb-tug.zip");
dataFolder = tempdir;
unzip(downloadFolder,dataFolder)
dataset = fullfile(dataFolder,"ptdb-tug");

Create an audioDatastore object that points to the data set. The data set was originally intended for use in pitch-tracking training and evaluation, and includes laryngograph readings and baseline pitch decisions. Use only the original audio recordings.

ads = audioDatastore([fullfile(dataset,"SPEECH DATA","FEMALE","MIC"),fullfile(dataset,"SPEECH DATA","MALE","MIC")], ...
                     IncludeSubfolders=true, ...
                     FileExtensions=".wav");
fileNames = ads.Files;

The file names contain the speaker IDs. Decode the file names to set the labels on the audioDatastore object.

speakerIDs = extractBetween(fileNames,"mic_","_");
ads.Labels = categorical(speakerIDs);
countEachLabel(ads)

ans=20×2 table
    Label    Count
    _____    _____

     F01      236
     F02      236
     F03      236
     F04      236
     F05      236
     F06      236
     F07      236
     F08      234
     F09      236
     F10      236
     M01      236
     M02      236
     M03      236
     M04      236
     M05      236
     M06      236
      ⋮

Separate the audioDatastore object into training, evaluation, and test sets. The training set contains 16 speakers. The evaluation set contains four speakers and is further divided into an enrollment set and a set to evaluate the detection error tradeoff of the trained i-vector system, and a test set.

developmentLabels = categorical(["M01","M02","M03","M04","M06","M07","M08","M09","F01","F02","F03","F04","F06","F07","F08","F09"]);
evaluationLabels = categorical(["M05","M10","F05","F10"]);

adsTrain = subset(ads,ismember(ads.Labels,developmentLabels));

adsEvaluate = subset(ads,ismember(ads.Labels,evaluationLabels));
numFilesPerSpeakerForEnrollment = 3;
[adsEnroll,adsTest,adsDET] = splitEachLabel(adsEvaluate,numFilesPerSpeakerForEnrollment,2);

Display the label distributions of the resulting audioDatastore objects.

countEachLabel(adsTrain)

ans=16×2 table
    Label    Count
    _____    _____

     F01      236
     F02      236
     F03      236
     F04      236
     F06      236
     F07      236
     F08      234
     F09      236
     M01      236
     M02      236
     M03      236
     M04      236
     M06      236
     M07      236
     M08      236
     M09      236

countEachLabel(adsEnroll)

ans=4×2 table
    Label    Count
    _____    _____

     F05       3
     F10       3
     M05       3
     M10       3

countEachLabel(adsDET)

ans=4×2 table
    Label    Count
    _____    _____

     F05      231
     F10      231
     M05      231
     M10      231

countEachLabel(adsTest)

ans=4×2 table
    Label    Count
    _____    _____

     F05       2
     F10       2
     M05       2
     M10       2

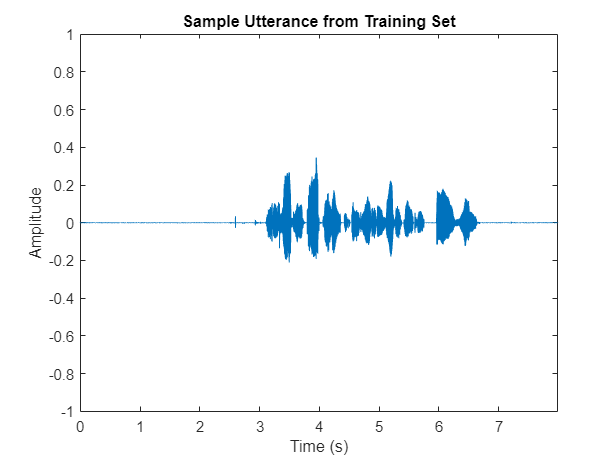

Read an audio file from the training data set, listen to it, and plot it. Reset the datastore.

[audio,audioInfo] = read(adsTrain);
fs = audioInfo.SampleRate;

t = (0:size(audio,1)-1)/fs;
sound(audio,fs)
plot(t,audio)
xlabel("Time (s)")
ylabel("Amplitude")
axis([0 t(end) -1 1])
title("Sample Utterance from Training Set")

reset(adsTrain)

You can reduce the data set and the number of parameters used in this example to speed up the runtime at the cost of performance. In general, reducing the data set is a good practice for development and debugging.

speedUpExample = false;
if speedUpExample
    adsTrain = splitEachLabel(adsTrain,30);
    adsDET = splitEachLabel(adsDET,21);
end

Feature Extraction

Create an audioFeatureExtractor object to extract 20 MFCCs, 20 delta-MFCCs, and 20 delta-delta MFCCs. Use a delta window length of 9. Extract features from 25 ms Hann windows with a 10 ms hop.

numCoeffs = 20;
deltaWindowLength = 9;

windowDuration = 0.025;
hopDuration = 0.01;

windowSamples = round(windowDuration*fs);
hopSamples = round(hopDuration*fs);
overlapSamples = windowSamples - hopSamples;

afe = audioFeatureExtractor( ...
    SampleRate=fs, ...
    Window=hann(windowSamples,"periodic"), ...
    OverlapLength=overlapSamples, ...
    ...
    mfcc=true, ...
    mfccDelta=true, ...
    mfccDeltaDelta=true);
setExtractorParameters(afe,"mfcc",DeltaWindowLength=deltaWindowLength,NumCoeffs=numCoeffs)

Extract features from the audio read from the training datastore. Features are returned as a numHops-by-numFeatures matrix.

features = extract(afe,audio);
[numHops,numFeatures] = size(features)

numHops = 797

numFeatures = 60

Training

Training an i-vector system is computationally expensive and time-consuming. If you have Parallel Computing Toolbox™, you can spread the work across multiple cores to speed up the example. Determine the optimal number of partitions for your system. If you do not have Parallel Computing Toolbox™, use a single partition.

if ~isempty(ver("parallel")) && ~speedUpExample
    pool = gcp;
    numPar = numpartitions(adsTrain,pool);
else
    numPar = 1;
end

Starting parallel pool (parpool) using the 'local' profile ...
Connected to the parallel pool (number of workers: 6).

Feature Normalization Factors

Use the helper function, helperFeatureExtraction, to extract all features from the data set. The helperFeatureExtraction function extracts MFCC from regions of speech in the audio. The speech detection is performed by the detectSpeech function.

featuresAll = {};
tic
parfor ii = 1:numPar
    adsPart = partition(adsTrain,numPar,ii);
    featuresPart = cell(0,numel(adsPart.Files));
    for iii = 1:numel(adsPart.Files)
        audioData = read(adsPart);
        featuresPart{iii} = helperFeatureExtraction(audioData,afe,[]);
    end
    featuresAll = [featuresAll,featuresPart];
end
allFeatures = cat(2,featuresAll{:});
disp("Feature extraction from training set complete (" + toc + " seconds).")

Feature extraction from training set complete (64.0731 seconds).

Calculate the global mean and standard deviation of each feature. You will use these in future calls to the helperFeatureExtraction function to normalize the features.

normFactors.Mean = mean(allFeatures,2,"omitnan");
normFactors.STD = std(allFeatures,[],2,"omitnan");

Universal Background Model (UBM)

Initialize the Gaussian mixture model (GMM) that will be the universal background model (UBM) in the i-vector system. The component weights are initialized as evenly distributed. Systems trained on the TIMIT data set usually contain around 2048 components.

numComponents = 64;
if speedUpExample
    numComponents = 32;
end
alpha = ones(1,numComponents)/numComponents;
mu = randn(numFeatures,numComponents);
vari = rand(numFeatures,numComponents) + eps;
ubm = struct(ComponentProportion=alpha,mu=mu,sigma=vari);

Train the UBM using the expectation-maximization (EM) algorithm.

maxIter = 10;
if speedUpExample
    maxIter = 2;
end
tic
for iter = 1:maxIter
    tic
    % EXPECTATION
    N = zeros(1,numComponents);
    F = zeros(numFeatures,numComponents);
    S = zeros(numFeatures,numComponents);
    L = 0;
    parfor ii = 1:numPar
        adsPart = partition(adsTrain,numPar,ii);
        while hasdata(adsPart)
            audioData = read(adsPart);

            % Extract features
            Y = helperFeatureExtraction(audioData,afe,normFactors);

            % Compute a posteriori log-liklihood
            logLikelihood = helperGMMLogLikelihood(Y,ubm);

            % Compute a posteriori normalized probability
            amax = max(logLikelihood,[],1);
            logLikelihoodSum = amax + log(sum(exp(logLikelihood-amax),1));
            gamma = exp(logLikelihood - logLikelihoodSum)';

            % Compute Baum-Welch statistics
            n = sum(gamma,1);
            f = Y * gamma;
            s = (Y.*Y) * gamma;

            % Update the sufficient statistics over utterances
            N = N + n;
            F = F + f;
            S = S + s;

            % Update the log-likelihood
            L = L + sum(logLikelihoodSum);
        end
    end

    % Print current log-likelihood
    disp("Training UBM: " + iter + "/" + maxIter + " complete (" + round(toc) + " seconds), Log-likelihood = " + round(L))

    % MAXIMIZATION
    N = max(N,eps);
    ubm.ComponentProportion = max(N/sum(N),eps);
    ubm.ComponentProportion = ubm.ComponentProportion/sum(ubm.ComponentProportion);
    ubm.mu = F./N;
    ubm.sigma = max(S./N - ubm.mu.^2,eps);
end

Training UBM: 1/10 complete (57 seconds), Log-likelihood = -75180473
Training UBM: 2/10 complete (57 seconds), Log-likelihood = -75115244
Training UBM: 3/10 complete (57 seconds), Log-likelihood = -75064164
Training UBM: 4/10 complete (57 seconds), Log-likelihood = -75024270
Training UBM: 5/10 complete (57 seconds), Log-likelihood = -74994504
Training UBM: 6/10 complete (57 seconds), Log-likelihood = -74970605
Training UBM: 7/10 complete (55 seconds), Log-likelihood = -74950526
Training UBM: 8/10 complete (58 seconds), Log-likelihood = -74933181
Training UBM: 9/10 complete (58 seconds), Log-likelihood = -74917145
Training UBM: 10/10 complete (55 seconds), Log-likelihood = -74901292

Calculate Baum-Welch Statistics

The Baum-Welch statistics are the N (zeroth order) and F (first order) statistics used in the EM algorithm, calculated using the final UBM.

$N_{c} (s) = \sum_{t} γ_{t} (c)$

$F_{c} (s) = \sum_{t} γ_{t} (c) Y_{t}$

$Y_{t}$ is the feature vector at time $t$ .
$s \in {s_{1}, s_{2,} . . ., s_{N}}$ , where $N$ is the number of speakers. For the purposes of training the total variability space, each audio file is considered a separate speaker (whether or not it belongs to a physical single speaker).
$γ_{t} (c)$ is the posterior probability that the UBM component $c$ accounts for the feature vector $Y_{t}$ .

Calculate the zeroth and first order Baum-Welch statistics over the training set.

numSpeakers = numel(adsTrain.Files);
Nc = {};
Fc = {};

tic
parfor ii = 1:numPar
    adsPart = partition(adsTrain,numPar,ii);
    numFiles = numel(adsPart.Files);

    Npart = cell(1,numFiles);
    Fpart = cell(1,numFiles);
    for jj = 1:numFiles
        audioData = read(adsPart);

        % Extract features
        Y = helperFeatureExtraction(audioData,afe,normFactors);

        % Compute a posteriori log-likelihood
        logLikelihood = helperGMMLogLikelihood(Y,ubm);

        % Compute a posteriori normalized probability
        amax = max(logLikelihood,[],1);
        logLikelihoodSum = amax + log(sum(exp(logLikelihood-amax),1));
        gamma = exp(logLikelihood - logLikelihoodSum)';

        % Compute Baum-Welch statistics
        n = sum(gamma,1);
        f = Y * gamma;

        Npart{jj} = reshape(n,1,1,numComponents);
        Fpart{jj} = reshape(f,numFeatures,1,numComponents);
    end
    Nc = [Nc,Npart];
    Fc = [Fc,Fpart];
end
disp("Baum-Welch statistics completed (" + toc + " seconds).")

Baum-Welch statistics completed (57.5179 seconds).

Expand the statistics into matrices and center $F (s)$ , as described in [3], such that

$N (s)$ is a $C F \times C F$ diagonal matrix whose blocks are $N_{c} (s) I (c = 1, . . . C)$ .
$F (s)$ is a $C F \times 1$ supervector obtained by concatenating $F_{c} (s) (c = 1, . . . C)$ .
$C$ is the number of components in the UBM.
$F$ is the number of features in a feature vector.

N = Nc;
F = Fc;
muc = reshape(ubm.mu,numFeatures,1,[]);
for s = 1:numSpeakers
    N{s} = repelem(reshape(Nc{s},1,[]),numFeatures);
    F{s} = reshape(Fc{s} - Nc{s}.*muc,[],1);
end

Because this example assumes a diagonal covariance matrix for the UBM, N are also diagonal matrices, and are saved as vectors for efficient computation.

Total Variability Space

In the i-vector model, the ideal speaker supervector consists of a speaker-independent component and a speaker-dependent component. The speaker-dependent component consists of the total variability space model and the speaker's i-vector.

$M = m + Tw$

$M$ is the speaker utterance supervector
$m$ is the speaker- and channel-independent supervector, which can be taken to be the UBM supervector.
$T$ is a low-rank rectangular matrix and represents the total variability subspace.
$w$ is the i-vector for the speaker

The dimensionality of the i-vector, $w$ , is typically much lower than the C F -dimensional speaker utterance supervector, making the i-vector, or i-vectors, a much more compact and tractable representation.

To train the total variability space, $T$ , first randomly initialize T, then perform these steps iteratively [3]:

Calculate the posterior distribution of the hidden variable.

$l_{T} (s) = I + T^{'} \times Σ^{- 1} \times N (s) \times T$

2. Accumulate statistics across the speakers.

$Κ = \sum_{s} F (s) \times {(l_{T}^{- 1} (s) \times T^{'} \times Σ^{- 1} \times F (s))}^{'}$

$A_{c} = \sum_{s} N_{c} (s) l_{T}^{- 1} (s)$

3. Update the total variability space.

$T_{c} = A_{c}^{- 1} \times Κ$

$T = [\begin{array}{c} T_{1} \\ T_{2} \\ ⋮ \\ T_{C} \end{array}]$

[3] proposes initializing $Σ$ by the UBM variance, and then updating $Σ$ according to the equation:

$Σ = {(\sum_{s} N (s))}^{- 1} ((\sum_{s} S (s)) - diag (Κ \times T^{'}))$

where S(s) is the centered second-order Baum-Welch statistic. However, updating $Σ$ is often dropped in practice as it has little effect. This example does not update $Σ$ .

Create the sigma variable.

Sigma = ubm.sigma(:);

Specify the dimension of the total variability space. A typical value used for the TIMIT data set is 1000.

numTdim = 32;
if speedUpExample
    numTdim = 16;
end

Initialize T and the identity matrix, and preallocate cell arrays.

T = randn(numel(ubm.sigma),numTdim);
T = T/norm(T);

I = eye(numTdim);

Ey = cell(numSpeakers,1);
Eyy = cell(numSpeakers,1);
Linv = cell(numSpeakers,1);

Set the number of iterations for training. A typical value reported is 20.

numIterations = 5;

Run the training loop.

for iterIdx = 1:numIterations
    tic

    % 1. Calculate the posterior distribution of the hidden variable
    TtimesInverseSSdiag = (T./Sigma)';
    parfor s = 1:numSpeakers
        L = (I + TtimesInverseSSdiag.*N{s}*T);
        Linv{s} = pinv(L);
        Ey{s} = Linv{s}*TtimesInverseSSdiag*F{s};
        Eyy{s} = Linv{s} + Ey{s}*Ey{s}';
    end

    % 2. Accumlate statistics across the speakers
    Eymat = cat(2,Ey{:});
    FFmat = cat(2,F{:});
    Kt = FFmat*Eymat';
    K = mat2cell(Kt',numTdim,repelem(numFeatures,numComponents));

    newT = cell(numComponents,1);
    for c = 1:numComponents
        AcLocal = zeros(numTdim);
        for s = 1:numSpeakers
            AcLocal = AcLocal + Nc{s}(:,:,c)*Eyy{s};
        end

    % 3. Update the Total Variability Space
        newT{c} = (pinv(AcLocal)*K{c})';
    end
    T = cat(1,newT{:});

    disp("Training Total Variability Space: " + iterIdx + "/" + numIterations + " complete (" + round(toc,2) + " seconds).")
end

Training Total Variability Space: 1/5 complete (1.97 seconds).
Training Total Variability Space: 2/5 complete (1.69 seconds).
Training Total Variability Space: 3/5 complete (1.79 seconds).
Training Total Variability Space: 4/5 complete (1.56 seconds).
Training Total Variability Space: 5/5 complete (1.74 seconds).

i-vector Extraction

Once the total variability space is calculated, you can calculate the i-vectors as [4]:

$w = {(I + T^{'} Σ^{- 1} NT)}^{'} T^{'} Σ^{- 1} F$

At this point, you are still considering each training file as a separate speaker. However, in the next step, when you train a projection matrix to reduce dimensionality and increase inter-speaker differences, the i-vectors must be labeled with the appropriate, distinct speaker IDs.

Create a cell array where each element of the cell array contains a matrix of i-vectors across files for a particular speaker.

speakers = unique(adsTrain.Labels);
numSpeakers = numel(speakers);
ivectorPerSpeaker = cell(numSpeakers,1);
TS = T./Sigma;
TSi = TS';
ubmMu = ubm.mu;
tic
parfor speakerIdx = 1:numSpeakers

    % Subset the datastore to the speaker you are adapting.
    adsPart = subset(adsTrain,adsTrain.Labels==speakers(speakerIdx));
    numFiles = numel(adsPart.Files);

    ivectorPerFile = zeros(numTdim,numFiles);
    for fileIdx = 1:numFiles
        audioData = read(adsPart);

        % Extract features
        Y = helperFeatureExtraction(audioData,afe,normFactors);

        % Compute a posteriori log-likelihood
        logLikelihood = helperGMMLogLikelihood(Y,ubm);

        % Compute a posteriori normalized probability
        amax = max(logLikelihood,[],1);
        logLikelihoodSum = amax + log(sum(exp(logLikelihood-amax),1));
        gamma = exp(logLikelihood - logLikelihoodSum)';

        % Compute Baum-Welch statistics
        n = sum(gamma,1);
        f = Y * gamma - n.*(ubmMu);

        ivectorPerFile(:,fileIdx) = pinv(I + (TS.*repelem(n(:),numFeatures))' * T) * TSi * f(:);
    end
    ivectorPerSpeaker{speakerIdx} = ivectorPerFile;
end
disp("I-vectors extracted from training set (" + toc + " seconds).")

I-vectors extracted from training set (65.8347 seconds).

Projection Matrix

Many different backends have been proposed for i-vectors. The most straightforward and still well-performing one is the combination of linear discriminant analysis (LDA) and within-class covariance normalization (WCCN).

Create a matrix of the training vectors and a map indicating which i-vector corresponds to which speaker. Initialize the projection matrix as an identity matrix.

w = ivectorPerSpeaker;
utterancePerSpeaker = cellfun(@(x)size(x,2),w);

ivectorsTrain = cat(2,w{:});
projectionMatrix = eye(size(w{1},1));

LDA attempts to minimize the intra-class variance and maximize the variance between speakers. It can be calculated as outlined in [4]:

Given:

$S_{b} = \sum_{s = 1}^{S} (\overline{w_{s}} - \overline{w}) {(\overline{w_{s}} - \overline{w})}^{'}$

$S_{w} = \sum_{s = 1}^{S} \frac{1}{n_{s}} \sum_{i = 1}^{n_{s}} (w_{i}^{s} - \overline{w_{s}}) {(w_{i}^{s} - \overline{w_{s}})}^{'}$

where

$\overline{w_{s}} = (\frac{1}{n_{s}}) \sum_{i = 1}^{n_{s}} w_{i}^{s}$ is the mean of i-vectors for each speaker.
$\overline{w} = \frac{1}{N} \sum_{s = 1}^{S} \sum_{i = 1}^{n_{s}} w_{i}^{s}$ is the mean i-vector across all speakers.
$n_{s}$ is the number of utterances for each speaker.

Solve the eigenvalue equation for the best eigenvectors:

$S_{b} v = λ S_{w} v$

The best eigenvectors are those with the highest eigenvalues.

performLDA = true;
if performLDA
    tic
    numEigenvectors = 16;

    Sw = zeros(size(projectionMatrix,1));
    Sb = zeros(size(projectionMatrix,1));
    wbar = mean(cat(2,w{:}),2);
    for ii = 1:numel(w)
        ws = w{ii};
        wsbar = mean(ws,2);
        Sb = Sb + (wsbar - wbar)*(wsbar - wbar)';
        Sw = Sw + cov(ws',1);
    end

    [A,~] = eigs(Sb,Sw,numEigenvectors);
    A = (A./vecnorm(A))';

    ivectorsTrain = A * ivectorsTrain;

    w = mat2cell(ivectorsTrain,size(ivectorsTrain,1),utterancePerSpeaker);

    projectionMatrix = A * projectionMatrix;

    disp("LDA projection matrix calculated (" + round(toc,2) + " seconds).")
end

LDA projection matrix calculated (0.22 seconds).

WCCN attempts to scale the i-vector space inversely to the in-class covariance, so that directions of high intra-speaker variability are de-emphasized in i-vector comparisons [9].

Given the within-class covariance matrix:

$W = \frac{1}{S} \sum_{s = 1}^{S} \frac{1}{n_{s}} \sum_{i = 1}^{n_{s}} (w_{i}^{s} - \overline{w_{s}}) {(w_{i}^{s} - \overline{w_{s}})}^{'}$

where

$\overline{w_{s}} = (\frac{1}{n_{s}}) \sum_{i = 1}^{n_{s}} w_{i}^{s}$ is the mean of i-vectors for each speaker.
$n_{s}$ is the number of utterances for each speaker.

Solve for B using Cholesky decomposition:

$W^{- 1} = {BB}^{'}$

performWCCN = true;
if performWCCN
    tic
    alpha = 0.9;

    W = zeros(size(projectionMatrix,1));
    for ii = 1:numel(w)
        W = W + cov(w{ii}',1);
    end
    W = W/numel(w);

    W = (1 - alpha)*W + alpha*eye(size(W,1));

    B = chol(pinv(W),"lower");

    projectionMatrix = B * projectionMatrix;

    disp("WCCN projection matrix calculated (" + round(toc,4) + " seconds).")
end

WCCN projection matrix calculated (0.0096 seconds).

The training stage is now complete. You can now use the universal background model (UBM), total variability space (T), and projection matrix to enroll and verify speakers.

Train G-PLDA Model

Apply the projection matrix to the train set.

ivectors = cellfun(@(x)projectionMatrix*x,ivectorPerSpeaker,UniformOutput=false);

This algorithm implemented in this example is a Gaussian PLDA as outlined in [13]. In the Gaussian PLDA, the i-vector is represented with the following equation:

$ϕ_{ij} = μ + {Vy}_{i} + ε_{ij}$

$y_{i} \sim Ν (0, Ι)$

$ε_{ij} \sim Ν (0, Λ^{- 1})$

where $μ$ is a global mean of the i-vectors, $Λ$ is a full precision matrix of the noise term $ε_{ij}$ , and $V$ is the factor loading matrix, also known as the eigenvoices.

Specify the number of eigenvoices to use. Typically numbers are between 10 and 400.

numEigenVoices = 16;

Determine the number of disjoint persons, the number of dimensions in the feature vectors, and the number of utterances per speaker.

K = numel(ivectors);
D = size(ivectors{1},1);
utterancePerSpeaker = cellfun(@(x)size(x,2),ivectors);

Find the total number of samples and center the i-vectors.

$N = \sum_{i = 1}^{K} n_{i}$

$μ = \frac{1}{N} \sum_{i, j} ϕ_{i, j}$

$φ_{ij} = ϕ_{ij} - μ$

ivectorsMatrix = cat(2,ivectors{:});
N = size(ivectorsMatrix,2);
mu = mean(ivectorsMatrix,2);

ivectorsMatrix = ivectorsMatrix - mu;

Determine a whitening matrix from the training i-vectors and then whiten the i-vectors. Specify either ZCA whitening, PCA whitening, or no whitening.

whiteningType = 'ZCA';

if strcmpi(whiteningType,"ZCA")
    S = cov(ivectorsMatrix');
    [~,sD,sV] = svd(S);
    W = diag(1./(sqrt(diag(sD)) + eps))*sV';
    ivectorsMatrix = W * ivectorsMatrix;
elseif strcmpi(whiteningType,"PCA")
    S = cov(ivectorsMatrix');
    [sV,sD] = eig(S);
    W = diag(1./(sqrt(diag(sD)) + eps))*sV';
    ivectorsMatrix = W * ivectorsMatrix;
else
    W = eye(size(ivectorsMatrix,1));
end

Apply length normalization and then convert the training i-vector matrix back to a cell array.

ivectorsMatrix = ivectorsMatrix./vecnorm(ivectorsMatrix);

Compute the global second-order moment as

$S = \sum_{ij} φ_{ij} φ_{ij}^{T}$

S = ivectorsMatrix*ivectorsMatrix';

Convert the training i-vector matrix back to a cell array.

ivectors = mat2cell(ivectorsMatrix,D,utterancePerSpeaker);

Sort persons according to the number of samples and then group the i-vectors by number of utterances per speaker. Precalculate the first-order moment of the $i$ -th person as

$f_{i} = \sum_{j = 1}^{n_{i}} φ_{ij}$

uniqueLengths = unique(utterancePerSpeaker);
numUniqueLengths = numel(uniqueLengths);

speakerIdx = 1;
f = zeros(D,K);
for uniqueLengthIdx = 1:numUniqueLengths
    idx = find(utterancePerSpeaker==uniqueLengths(uniqueLengthIdx));
    temp = {};
    for speakerIdxWithinUniqueLength = 1:numel(idx)
        rho = ivectors(idx(speakerIdxWithinUniqueLength));
        temp = [temp;rho]; %#ok<AGROW>

        f(:,speakerIdx) = sum(rho{:},2);
        speakerIdx = speakerIdx+1;
    end
    ivectorsSorted{uniqueLengthIdx} = temp; %#ok<SAGROW>
end

Initialize the eigenvoices matrix, V, and the inverse noise variance term, $Λ$ .

V = randn(D,numEigenVoices);
Lambda = pinv(S/N);

Specify the number of iterations for the EM algorithm and whether or not to apply the minimum divergence.

numIter = 5;
minimumDivergence = true;

Train the G-PLDA model using the EM algorithm described in [13].

for iter = 1:numIter
    % EXPECTATION
    gamma = zeros(numEigenVoices,numEigenVoices);
    EyTotal = zeros(numEigenVoices,K);
    R = zeros(numEigenVoices,numEigenVoices);

    idx = 1;
    for lengthIndex = 1:numUniqueLengths
        ivectorLength = uniqueLengths(lengthIndex);

        % Isolate i-vectors of the same given length
        iv = ivectorsSorted{lengthIndex};

        % Calculate M
        M = pinv(ivectorLength*(V'*(Lambda*V)) + eye(numEigenVoices)); % Equation (A.7) in [13]

        % Loop over each speaker for the current i-vector length
        for speakerIndex = 1:numel(iv)

            % First moment of latent variable for V
            Ey = M*V'*Lambda*f(:,idx); % Equation (A.8) in [13]

            % Calculate second moment.
            Eyy = Ey * Ey';

            % Update Ryy
            R = R + ivectorLength*(M + Eyy); % Equation (A.13) in [13]

            % Append EyTotal
            EyTotal(:,idx) = Ey;
            idx = idx + 1;

            % If using minimum divergence, update gamma.
            if minimumDivergence
                gamma = gamma + (M + Eyy); % Equation (A.18) in [13]
            end
        end
    end

    % Calculate T
    TT = EyTotal*f'; % Equation (A.12) in [13]

    % MAXIMIZATION
    V = TT'*pinv(R); % Equation (A.16) in [13]
    Lambda = pinv((S - V*TT)/N); % Equation (A.17) in [13]

    % MINIMUM DIVERGENCE
    if minimumDivergence
        gamma = gamma/K; % Equation (A.18) in [13]
        V = V*chol(gamma,'lower');% Equation (A.22) in [13]
    end
end

Once you've trained the G-PLDA model, you can use it to calculate a score based on the log-likelihood ratio as described in [14]. Given two i-vectors that have been centered, whitened, and length-normalized, the score is calculated as:

$score (w_{1}, w_{t}) = [\begin{array}{c} w_{1}^{T} & w_{t}^{T} \end{array}] [\begin{array}{c} Σ + {VV}^{T} & {VV}^{T} \\ {VV}^{T} & Σ + {VV}^{T} \end{array}] [\begin{array}{c} w_{1} & w_{t} \end{array}] - w_{1}^{T} {[\begin{array}{c} Σ + {VV}^{T} \end{array}]}^{- 1} w_{1} - w_{t}^{T} {[\begin{array}{c} Σ + {VV}^{T} \end{array}]}^{- 1} w_{t} + C$

where $w_{1}$ and $w_{t}$ are the enrollment and test i-vectors, $Σ$ is the variance matrix of the noise term, $V$ is the eigenvoice matrix. The $C$ term are factored-out constants and can be dropped in practice.

speakerIdx = 2;
utteranceIdx = 1;
w1 = ivectors{speakerIdx}(:,utteranceIdx);

speakerIdx = 1;
utteranceIdx = 10;
wt = ivectors{speakerIdx}(:,utteranceIdx);

VVt = V*V';
SigmaPlusVVt = pinv(Lambda) + VVt;

term1 = pinv([SigmaPlusVVt VVt;VVt SigmaPlusVVt]);
term2 = pinv(SigmaPlusVVt);

w1wt = [w1;wt];
score = w1wt'*term1*w1wt - w1'*term2*w1 - wt'*term2*wt

score = 56.2336

In practice, the test i-vectors, and depending on your system, the enrollment ivectors, are not used in the training of the G-PLDA model. In the following evaluation section, you use previously unseen data for enrollment and verification. The supporting function, gpldaScore encapsulates the scoring steps above, and additionally performs centering, whitening, and normalization. Save the trained G-PLDA model as a struct for use with the supporting function gpldaScore.

gpldaModel = struct(mu=mu, ...
                    WhiteningMatrix=W, ...
                    EigenVoices=V, ...
                    Sigma=pinv(Lambda));

Enroll

Enroll new speakers that were not in the training data set.

Create i-vectors for each file for each speaker in the enroll set using the this sequence of steps:

Feature Extraction
Baum-Welch Statistics: Determine the zeroth and first order statistics
i-vector Extraction
Intersession compensation

Then average the i-vectors across files to create an i-vector model for the speaker. Repeat the for each speaker.

speakers = unique(adsEnroll.Labels);
numSpeakers = numel(speakers);
enrolledSpeakersByIdx = cell(numSpeakers,1);
tic
parfor speakerIdx = 1:numSpeakers
    % Subset the datastore to the speaker you are adapting.
    adsPart = subset(adsEnroll,adsEnroll.Labels==speakers(speakerIdx));
    numFiles = numel(adsPart.Files);

    ivectorMat = zeros(size(projectionMatrix,1),numFiles);
    for fileIdx = 1:numFiles
        audioData = read(adsPart);

        % Extract features
        Y = helperFeatureExtraction(audioData,afe,normFactors);

        % Compute a posteriori log-likelihood
        logLikelihood = helperGMMLogLikelihood(Y,ubm);

        % Compute a posteriori normalized probability
        amax = max(logLikelihood,[],1);
        logLikelihoodSum = amax + log(sum(exp(logLikelihood-amax),1));
        gamma = exp(logLikelihood - logLikelihoodSum)';

        % Compute Baum-Welch statistics
        n = sum(gamma,1);
        f = Y * gamma - n.*(ubmMu);

        %i-vector Extraction
        w = pinv(I + (TS.*repelem(n(:),numFeatures))' * T) * TSi * f(:);

        % Intersession Compensation
        w = projectionMatrix*w;

        ivectorMat(:,fileIdx) = w;
    end
    % i-vector model
    enrolledSpeakersByIdx{speakerIdx} = mean(ivectorMat,2);
end
disp("Speakers enrolled (" + round(toc,2) + " seconds).")

Speakers enrolled (0.44 seconds).

For bookkeeping purposes, convert the cell array of i-vectors to a structure, with the speaker IDs as fields and the i-vectors as values

enrolledSpeakers = struct;
for s = 1:numSpeakers
    enrolledSpeakers.(string(speakers(s))) = enrolledSpeakersByIdx{s};
end

Verification

Specify either the CSS or G-PLDA scoring method.

scoringMethod = 'GPLDA';

False Rejection Rate (FRR)

The speaker false rejection rate (FRR) is the rate that a given speaker is incorrectly rejected. Create an array of scores for enrolled speaker i-vectors and i-vectors of the same speaker.

speakersToTest = unique(adsDET.Labels);
numSpeakers = numel(speakersToTest);
scoreFRR = cell(numSpeakers,1);
tic
parfor speakerIdx = 1:numSpeakers
    adsPart = subset(adsDET,adsDET.Labels==speakersToTest(speakerIdx));
    numFiles = numel(adsPart.Files);

    ivectorToTest = enrolledSpeakers.(string(speakersToTest(speakerIdx))); %#ok<PFBNS>

    score = zeros(numFiles,1);
    for fileIdx = 1:numFiles
        audioData = read(adsPart);

        % Extract features
        Y = helperFeatureExtraction(audioData,afe,normFactors);

        % Compute a posteriori log-likelihood
        logLikelihood = helperGMMLogLikelihood(Y,ubm);

        % Compute a posteriori normalized probability
        amax = max(logLikelihood,[],1);
        logLikelihoodSum = amax + log(sum(exp(logLikelihood-amax),1));
        gamma = exp(logLikelihood - logLikelihoodSum)';

        % Compute Baum-Welch statistics
        n = sum(gamma,1);
        f = Y * gamma - n.*(ubmMu);

        % Extract i-vector
        w = pinv(I + (TS.*repelem(n(:),numFeatures))' * T) * TSi * f(:);

        % Intersession Compensation
        w = projectionMatrix*w;

        % Score
        if strcmpi(scoringMethod,"CSS")
            score(fileIdx) = dot(ivectorToTest,w)/(norm(w)*norm(ivectorToTest));
        else
            score(fileIdx) = gpldaScore(gpldaModel,w,ivectorToTest);
        end
    end
    scoreFRR{speakerIdx} = score;
end
disp("FRR calculated (" + round(toc,2) + " seconds).")

FRR calculated (20.77 seconds).

False Acceptance Rate (FAR)

The speaker false acceptance rate (FAR) is the rate that utterances not belonging to an enrolled speaker are incorrectly accepted as belonging to the enrolled speaker. Create an array of scores for enrolled speakers and i-vectors of different speakers.

speakersToTest = unique(adsDET.Labels);
numSpeakers = numel(speakersToTest);
scoreFAR = cell(numSpeakers,1);
tic
parfor speakerIdx = 1:numSpeakers
    adsPart = subset(adsDET,adsDET.Labels~=speakersToTest(speakerIdx));
    numFiles = numel(adsPart.Files);

    ivectorToTest = enrolledSpeakers.(string(speakersToTest(speakerIdx))); %#ok<PFBNS>
    score = zeros(numFiles,1);
    for fileIdx = 1:numFiles
        audioData = read(adsPart);

        % Extract features
        Y = helperFeatureExtraction(audioData,afe,normFactors);

        % Compute a posteriori log-likelihood
        logLikelihood = helperGMMLogLikelihood(Y,ubm);

        % Compute a posteriori normalized probability
        amax = max(logLikelihood,[],1);
        logLikelihoodSum = amax + log(sum(exp(logLikelihood-amax),1));
        gamma = exp(logLikelihood - logLikelihoodSum)';

        % Compute Baum-Welch statistics
        n = sum(gamma,1);
        f = Y * gamma - n.*(ubmMu);

        % Extract i-vector
        w = pinv(I + (TS.*repelem(n(:),numFeatures))' * T) * TSi * f(:);

        % Intersession compensation
        w = projectionMatrix * w;

        % Score
        if strcmpi(scoringMethod,"CSS")
            score(fileIdx) = dot(ivectorToTest,w)/(norm(w)*norm(ivectorToTest));
        else
            score(fileIdx) = gpldaScore(gpldaModel,w,ivectorToTest);
        end
    end
    scoreFAR{speakerIdx} = score;
end
disp("FAR calculated (" + round(toc,2) + " seconds).")

FAR calculated (58.14 seconds).

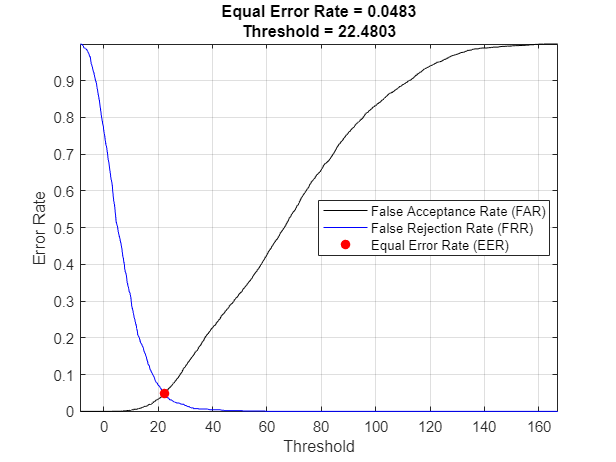

Equal Error Rate (EER)

To compare multiple systems, you need a single metric that combines the FAR and FRR performance. For this, you determine the equal error rate (EER), which is the threshold where the FAR and FRR curves meet. In practice, the EER threshold might not be the best choice. For example, if speaker verification is used as part of a multi-authentication approach for wire transfers, FAR would most likely be more heavily weighted than FRR.

amin = min(cat(1,scoreFRR{:},scoreFAR{:}));
amax = max(cat(1,scoreFRR{:},scoreFAR{:}));

thresholdsToTest = linspace(amin,amax,1000);

% Compute the FRR and FAR for each of the thresholds.
if strcmpi(scoringMethod,"CSS")
    % In CSS, a larger score indicates the enroll and test ivectors are
    % similar.
    FRR = mean(cat(1,scoreFRR{:})<thresholdsToTest);
    FAR = mean(cat(1,scoreFAR{:})>thresholdsToTest);
else
    % In G-PLDA, a smaller score indicates the enroll and test ivectors are
    % similar.
    FRR = mean(cat(1,scoreFRR{:})>thresholdsToTest);
    FAR = mean(cat(1,scoreFAR{:})<thresholdsToTest);
end

[~,EERThresholdIdx] = min(abs(FAR - FRR));
EERThreshold = thresholdsToTest(EERThresholdIdx);
EER = mean([FAR(EERThresholdIdx),FRR(EERThresholdIdx)]);

figure
plot(thresholdsToTest,FAR,"k", ...
     thresholdsToTest,FRR,"b", ...
     EERThreshold,EER,"ro",MarkerFaceColor="r")
title(["Equal Error Rate = " + round(EER,4),"Threshold = " + round(EERThreshold,4)])
xlabel("Threshold")
ylabel("Error Rate")
legend("False Acceptance Rate (FAR)","False Rejection Rate (FRR)","Equal Error Rate (EER)",Location="best")
grid on
axis tight

Supporting Functions

Feature Extraction and Normalization

function [features,numFrames] = helperFeatureExtraction(audioData,afe,normFactors)
    % Input:
    % audioData   - column vector of audio data
    % afe         - audioFeatureExtractor object
    % normFactors - mean and standard deviation of the features used for normalization.
    %               If normFactors is empty, no normalization is applied.
    %
    % Output
    % features    - matrix of features extracted
    % numFrames   - number of frames (feature vectors) returned

    % Normalize
    audioData = audioData/max(abs(audioData(:)));

    % Protect against NaNs
    audioData(isnan(audioData)) = 0;

    % Isolate speech segment
    idx = detectSpeech(audioData,afe.SampleRate);
    features = [];
    for ii = 1:size(idx,1)
        f = extract(afe,audioData(idx(ii,1):idx(ii,2)));
        features = [features;f]; %#ok<AGROW>
    end

    % Feature normalization
    if ~isempty(normFactors)
        features = (features-normFactors.Mean')./normFactors.STD';
    end
    features = features';

    % Cepstral mean subtraction (for channel noise)
    if ~isempty(normFactors)
        features = features - mean(features,"all");
    end

    numFrames = size(features,2);
end

Gaussian Multi-Component Mixture Log-Likelihood

function L = helperGMMLogLikelihood(x,gmm)
    xMinusMu = repmat(x,1,1,numel(gmm.ComponentProportion)) - permute(gmm.mu,[1,3,2]);
    permuteSigma = permute(gmm.sigma,[1,3,2]);

    Lunweighted = -0.5*(sum(log(permuteSigma),1) + sum(xMinusMu.*(xMinusMu./permuteSigma),1) + size(gmm.mu,1)*log(2*pi));

    temp = squeeze(permute(Lunweighted,[1,3,2]));
    if size(temp,1)==1
        % If there is only one frame, the trailing singleton dimension was
        % removed in the permute. This accounts for that edge case.
        temp = temp';
    end

    L = temp + log(gmm.ComponentProportion)';
end

G-PLDA Score

function score = gpldaScore(gpldaModel,w1,wt)
% Center the data
w1 = w1 - gpldaModel.mu;
wt = wt - gpldaModel.mu;

% Whiten the data
w1 = gpldaModel.WhiteningMatrix*w1;
wt = gpldaModel.WhiteningMatrix*wt;

% Length-normalize the data
w1 = w1./vecnorm(w1);
wt = wt./vecnorm(wt);

% Score the similarity of the i-vectors based on the log-likelihood.
VVt = gpldaModel.EigenVoices * gpldaModel.EigenVoices';
SVVt = gpldaModel.Sigma + VVt;

term1 = pinv([SVVt VVt;VVt SVVt]);
term2 = pinv(SVVt);

w1wt = [w1;wt];
score = w1wt'*term1*w1wt - w1'*term2*w1 - wt'*term2*wt;
end

References

[1] Reynolds, Douglas A., et al. "Speaker Verification Using Adapted Gaussian Mixture Models." Digital Signal Processing, vol. 10, no. 1–3, Jan. 2000, pp. 19–41. DOI.org (Crossref), doi:10.1006/dspr.1999.0361.

[2] Kenny, Patrick, et al. "Joint Factor Analysis Versus Eigenchannels in Speaker Recognition." IEEE Transactions on Audio, Speech and Language Processing, vol. 15, no. 4, May 2007, pp. 1435–47. DOI.org (Crossref), doi:10.1109/TASL.2006.881693.

[3] Kenny, P., et al. "A Study of Interspeaker Variability in Speaker Verification." IEEE Transactions on Audio, Speech, and Language Processing, vol. 16, no. 5, July 2008, pp. 980–88. DOI.org (Crossref), doi:10.1109/TASL.2008.925147.

[4] Dehak, Najim, et al. "Front-End Factor Analysis for Speaker Verification." IEEE Transactions on Audio, Speech, and Language Processing, vol. 19, no. 4, May 2011, pp. 788–98. DOI.org (Crossref), doi:10.1109/TASL.2010.2064307.

[5] Matejka, Pavel, Ondrej Glembek, Fabio Castaldo, M.j. Alam, Oldrich Plchot, Patrick Kenny, Lukas Burget, and Jan Cernocky. "Full-Covariance UBM and Heavy-Tailed PLDA in i-Vector Speaker Verification." 2011 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), 2011. https://doi.org/10.1109/icassp.2011.5947436.

[6] Snyder, David, et al. "X-Vectors: Robust DNN Embeddings for Speaker Recognition." 2018 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), IEEE, 2018, pp. 5329–33. DOI.org (Crossref), doi:10.1109/ICASSP.2018.8461375.

[7] Signal Processing and Speech Communication Laboratory. Accessed December 12, 2019. https://www.spsc.tugraz.at/databases-and-tools/ptdb-tug-pitch-tracking-database-from-graz-university-of-technology.html.

[8] Variani, Ehsan, et al. "Deep Neural Networks for Small Footprint Text-Dependent Speaker Verification." 2014 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), IEEE, 2014, pp. 4052–56. DOI.org (Crossref), doi:10.1109/ICASSP.2014.6854363.

[9] Dehak, Najim, Réda Dehak, James R. Glass, Douglas A. Reynolds and Patrick Kenny. “Cosine Similarity Scoring without Score Normalization Techniques.” Odyssey (2010).

[10] Verma, Pulkit, and Pradip K. Das. “I-Vectors in Speech Processing Applications: A Survey.” International Journal of Speech Technology, vol. 18, no. 4, Dec. 2015, pp. 529–46. DOI.org (Crossref), doi:10.1007/s10772-015-9295-3.

[11] D. Garcia-Romero and C. Espy-Wilson, “Analysis of I-vector Length Normalization in Speaker Recognition Systems.” Interspeech, 2011, pp. 249–252.

[12] Kenny, Patrick. "Bayesian Speaker Verification with Heavy-Tailed Priors". Odyssey 2010 - The Speaker and Language Recognition Workshop, Brno, Czech Republic, 2010.

[13] Sizov, Aleksandr, Kong Aik Lee, and Tomi Kinnunen. “Unifying Probabilistic Linear Discriminant Analysis Variants in Biometric Authentication.” Lecture Notes in Computer Science Structural, Syntactic, and Statistical Pattern Recognition, 2014, 464–75. https://doi.org/10.1007/978-3-662-44415-3_47.

[14] Rajan, Padmanabhan, Anton Afanasyev, Ville Hautamäki, and Tomi Kinnunen. 2014. “From Single to Multiple Enrollment I-Vectors: Practical PLDA Scoring Variants for Speaker Verification.” Digital Signal Processing 31 (August): 93–101. https://doi.org/10.1016/j.dsp.2014.05.001.
