jcampread
Read JCAMP-DX-formatted files
Syntax
JCAMPStruct
=
jcampread(File
)
Input Arguments
File | Either of the following:
|
Output Arguments
JCAMPStruct | MATLAB structure containing information from a JCAMP-DX-formatted file. |
Description
JCAMP-DX is a file format for infrared, NMR, and mass spectrometry
data from the Joint Committee on Atomic and Molecular Physical Data
(JCAMP). jcampread
supports reading data from files
saved with Versions 4.24, 5, or 6 of the JCAMP-DX format. For more
details, see:
reads data from JCAMPStruct
=
jcampread(File
)File
,
a JCAMP-DX-formatted file, and creates JCAMPStruct
,
a MATLAB structure containing the following fields.
Field |
---|
Title |
DataType |
DataClass (version 5.00 and above) |
Origin |
Owner |
Blocks |
Notes |
The Blocks
field of the structure is an array
of structures corresponding to each set of data in the file. These
structures have the following fields.
Field |
---|
XData |
YData |
ZData (if multiple blocks) |
XUnits |
YUnits |
ZUnits (if multiple blocks) |
Notes |
Examples
Open a Web browser to http://www.jcamp-dx.org/testdata.html.
Download the
testdata.zip
file to your MATLAB Current Folder.Extract
isas_ms1.dx
, a JCAMP-DX-formatted file, from thetestdata.zip
file to your MATLAB Current Folder.Read the data from the JCAMP-DX-formatted file,
isas_ms1.dx
, into the MATLAB softwarejcampStruct = jcampread('isas_ms1.dx') jcampStruct = Title: '2-Chlorphenol' DataType: 'MASS SPECTRUM' DataClass: 'PEAKTABLE' Origin: 'H. Mayer, ISAS Dortmund' Owner: 'COPYRIGHT (C) 1993 by ISAS Dortmund, FRG' Blocks: [1x1 struct] Notes: {8x2 cell}

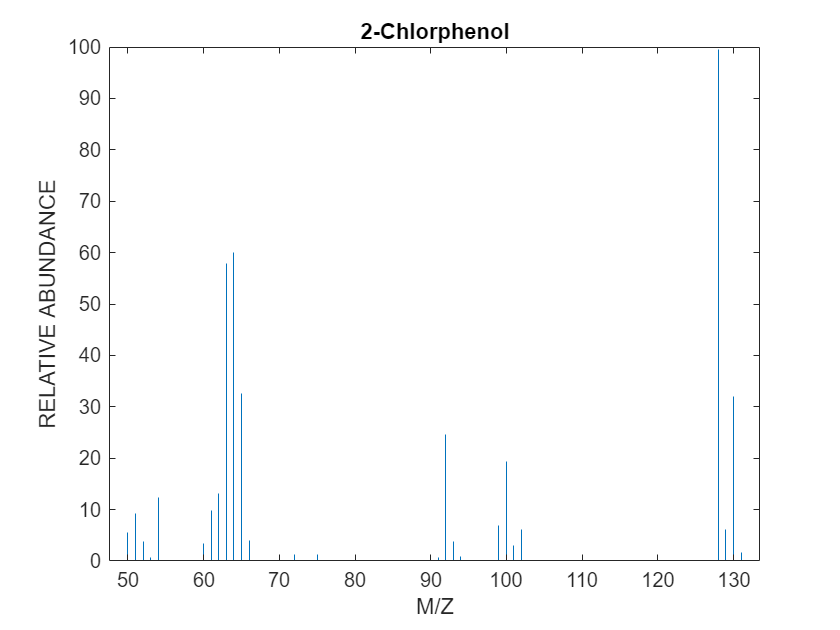

Plot the mass spectrum.
data = jcampStruct.Blocks(1); stem(data.XData,data.YData, '.', 'MarkerEdgeColor','w'); title(jcampStruct.Title); xlabel(data.XUnits); ylabel(data.YUnits);
Version History
Introduced before R2006a
