Prepare Edge Detection Code for Deployment to NVIDIA Jetson

Examine the Entry-Point Function

The sobelEdgeDetection_init function connects to the Jetson hardware, takes a snapshot using the webcam on the Jetson board, and detects edges in the snapshot.

type sobelEdgeDetection_init.m;

function sobelEdgeDetection_init(cameraName,resolution)
hwObj = jetson;
camObj = camera(hwObj,cameraName,resolution);
% Sobel kernel
kern = [1 2 1; 0 0 0; -1 -2 -1];

% Capture the image from the camera on hardware.
img = snapshot(camObj);

% Finding horizontal and vertical gradients.
h = conv2(img(:,:,2),kern,'same');
v = conv2(img(:,:,2),kern','same');

% Finding magnitude of the gradients.
e = sqrt(h.*h + v.*v);

% Threshold the edges
edgeImg = uint8((e > 100) * 240);

% Display image.
imshow(edgeImg)

end

Prepare the Entry-Point Function

To prepare the entry-point function for code generation, check the function for features not supported for code generation. Next, you replace functions that require MATLAB with Jetson-specific features that you can deploy in standalone code.

Insert the %#codegen Directive

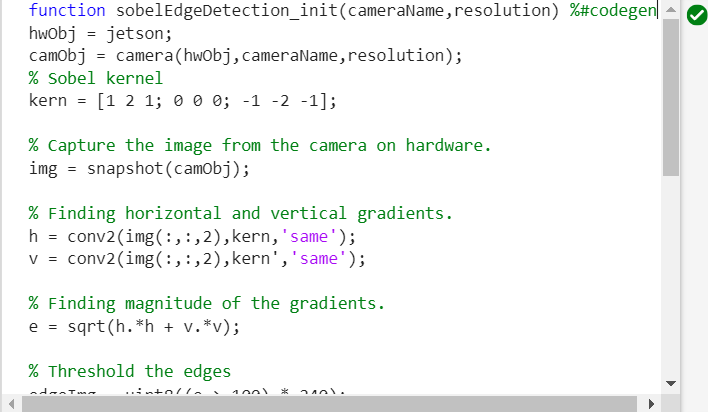

To check for issues related to code generation, add the %#codegen directive to the first line of the sobelEdgeDetection function. This directive causes the Code Analyzer in the MATLAB Editor to flag warnings and errors related to code generation.

function sobelEdgeDetection_init(cameraName,resolution) %#codegen

In the top-right corner of the MATLAB Editor, the Code Analyzer displays the No warnings found icon , which indicates that the analyzer did not detect errors, warnings, or opportunities for improvement in the code.

Replace Unsupported Functions

To display the edge-detected image in MATLAB, the function uses the imshow function, which requires MATLAB. To display the result of the algorithm on the board during deployment, use the imageDisplay object instead. At the top of the entry-point function, create an imageDisplay object inside the entry-point function. For example, you can create an imageDisplay object for a Jetson board hwObj by using this code.

hwobj = jetson;
dispObj = imageDisplay(hwobj);

To display the result by using the imageDisplay object, insert this code after the code that calculates the output image edgeImg.

image(dispObj,edgeImg');

Modify the Algorithm to Run in a Loop

To display the result for more than a single frame, use a for-loop to with 1000 iterations to take snapshots, detect edges, and use the imageDisplay object to display the result after each snapshot. Replace the code that captures and processes the snapshot inside sobelEdgeDetection_init with this code.

% Main loop
for k = 1:1000
    % Capture the image from the camera on hardware.
    img = snapshot(camObj);

    % Finding horizontal and vertical gradients.
    h = conv2(img(:,:,2),kern,'same');
    v = conv2(img(:,:,2),kern','same');

    % Finding magnitude of the gradients.
    e = sqrt(h.*h + v.*v);

    % Threshold the edges
    edgeImg = uint8((e > 100) * 240);

    % Display image.
    image(dispObj,edgeImg');
end

Save the function as sobelEdgeDetection.m.

type sobelEdgeDetection.m

function sobelEdgeDetection(cameraName,resolution) %#codegen
%SOBELEDGEDETECTION() Entry-point function for Sobel edge detection
%   This function is the entry-point function that supports examples in
%   MATLAB Coder Support Package for NVIDIA Jetson and NVIDIA DRIVE
%   Platforms that use Sobel algorithms for edge detection.

%   Copyright 2023 The MathWorks, Inc.

hwobj = jetson;
camObj = camera(hwobj,cameraName,resolution);
dispObj = imageDisplay(hwobj);

% Sobel kernel
kern = [1 2 1; 0 0 0; -1 -2 -1];

% Main loop
for k = 1:1000
    % Capture the image from the camera on hardware.
    img = snapshot(camObj);

    % Finding horizontal and vertical gradients.
    h = conv2(img(:,:,2),kern,'same');
    v = conv2(img(:,:,2),kern','same');

    % Finding magnitude of the gradients.
    e = sqrt(h.*h + v.*v);

    % Threshold the edges
    edgeImg = uint8((e > 100) * 240);

    % Display image.
    image(dispObj,edgeImg');
end

end
