Deinterlacer

Distribute elements of input vector alternately between two output vectors

expand all in page
  • Deinterlacer block

Libraries:
Communications Toolbox / Sequence Operations

Description

The Deinterlacer block accepts an even length column vector input signal. The block alternately places the elements in two output vectors. As a result, each output vector size is half the input vector size. The outputs inherit the sample time from the Sample time parameter of the input block.

Examples

Deinterlace Vector Input

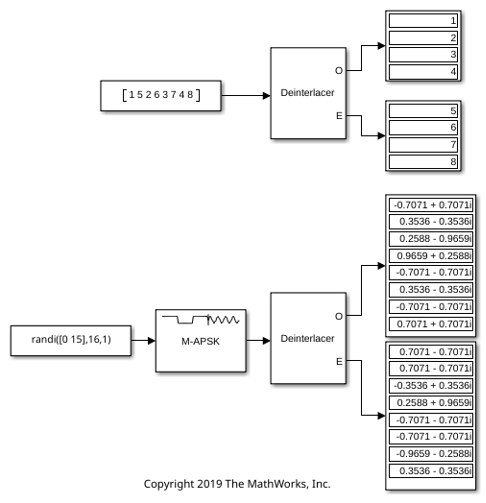

Deinterlace Vector Input

Use the Deinterlacer block to deinterlace a vector input.

Ports

Input

expand all

Input signal, specified as an even length column vector.

Data Types: double | single
Complex Number Support: Yes

Output

expand all

Odd-numbered elements of the input vector, returned as a vector. If the input is a vector of length N, the output length is N/2.

Even-numbered elements of the input vector, returned as a vector. If the input is a vector of length N, the output length is N/2.

Block Characteristics

Data Types

Boolean | double | enumerated | fixed point | integer | single

Multidimensional Signals

no

Variable-Size Signals

no

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced before R2006a
