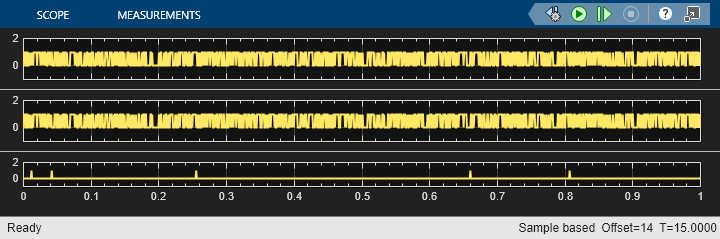

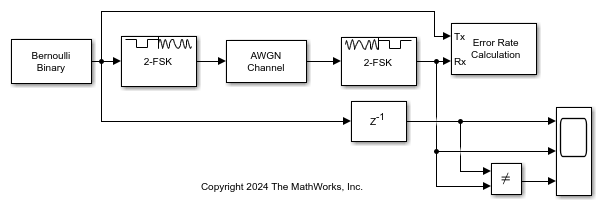

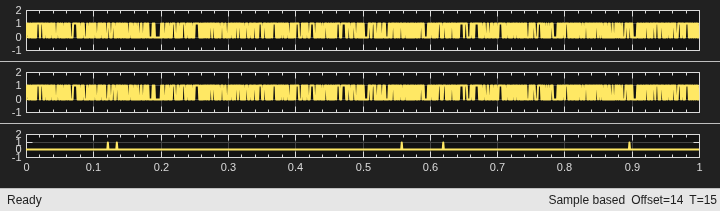

M-FSK Modulator Baseband

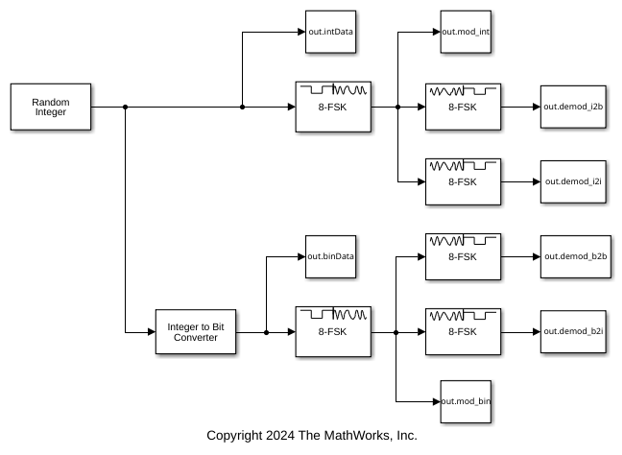

Integer-Valued Signals and Binary-Valued Signals

The input and output signals for this block are discrete-time signals.

When you set the Input type parameter to Integer, the block accepts integer values in the range [0, (M-1)]. M is the modulation order as specified by the M-ary number block parameter.

When you set the Input type parameter to Bit, the block accepts binary-valued inputs that represent integers. The block collects binary-valued signals into groups of K = log₂(M) bits

where

K represents the number of bits per symbol.

The input vector length must be an integer multiple of K. In this configuration, the block accepts a group of K bits and maps that group onto a symbol at the block output. The block outputs one modulated symbol, oversampled by the Samples per symbol parameter value, for each group of K bits.

The Symbol set ordering parameter indicates how the block maps a group of K input bits to a corresponding symbol. When you set the parameter to Binary, the block maps [u(1) u(2) ... u(K)] to the integer

and assumes that this integer is the input value. u(1) is the most significant bit.

If you set M = 8, Symbol set ordering to Binary, and the binary input word is [1 1 0], the block converts [1 1 0] to the integer 6. The block produces the same output when the input is 6 and the Input type parameter is Integer.

When you set Symbol set ordering to Gray, the block uses a Gray-coded arrangement and assigns binary inputs to points of a predefined Gray-coded signal constellation. The predefined M-ary Gray-coded signal constellation assigns the binary representation.

M = 8;
k = log2(M);
P = [0:M-1];
reshape(int2bit(bitxor(P,floor(P/2)),k),k,[])'

to the P^th integer.

The following tables show the typical Binary to Gray mapping for M = 8.

Single-Rate Processing

In single-rate processing mode, the input and output signals have the same port sample time. The block implicitly implements the rate change by making a size change at the output when compared to the input. In this mode, the input to the block can be multiple symbols.

The output width equals the product of the number of input symbols and the Samples per symbol parameter value.

Multirate Processing

In multirate processing mode, the input and output signals have different port sample times. In this mode, the input to the block must be one symbol.

The output sample time equals the symbol period divided by the Samples per symbol parameter value.

To run the M-FSK Modulator block in multirate mode, clear the Treat each discrete rate as a separate task checkbox (in Simulation > Configuration Parameters > Solver).
