# CORDIC-Based QPSK Carrier Synchronization

This model shows the use of a CORDIC (COordinate Rotation DIgital Computer) rotation algorithm in a digital PLL (Phase Locked Loop) implementation for QPSK carrier synchronization. Fixed-Point Designer™ is needed to run this model.

### Introduction

The structure of a digital PLL is essentially equivalent to that of a continuous-time PLL. A PLL has the following components: a phase error detector (PED), a loop filter, and a controlled oscillator.

In the case of QPSK carrier (phase and frequency) synchronization, implementing the loop filter as a digital `P+I`

(proportional-plus-integrator) filter produces a second order PLL. The controlled oscillator (`Phase Accumulator`

) adjusts the angle of the received QPSK signal via a complex rotation.

You can implement the complex rotation using a variety of approaches, including direct complex multiplication by `exp(j*theta)`

. However, such an implementation can be relatively expensive in terms of hardware (e.g., FPGA or ASIC) resources. An alternative approach uses a CORDIC-based rotation algorithm to implement the complex multiplication. This example uses this approach, via the Fixed-Point Designer™ `CORDICROTATE`

function. This results in a multiplier-less complex rotation approximation, where the trade-off is in terms of speed. A small number of CORDIC iterations may often be enough to achieve a good digital PLL response, without the full hardware resource cost of a true complex multiplication.

### Structure of the Example

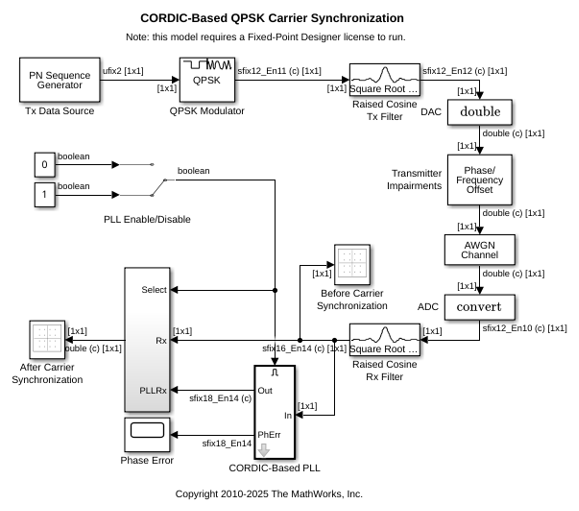

**Tx Data Source**

The `PN Sequence Generator`

library block from the Communications Toolbox™ is the Tx Data Source, generating unsigned 2-bit integer symbols.

**QPSK Modulator**

The `QPSK Modulator Baseband`

library block from the Communications Toolbox uses a `pi/4`

phase offset and binary ordering to compute signed 12-bit fixed-point modulator output values.

**Raised Cosine Tx Filter**

The `Raised Cosine Transmit Filter`

library block from the Communications Toolbox performs square root FIR filtering with an upsampling factor of 8.

**Transmitter Impairments**

The `Phase/Frequency Offset`

library block from the Communications Toolbox simulates the associated transmitter impairments. You can tune the `Phase offset`

and `Frequency offset`

parameter values to see the effect on the PLL `Phase Error`

time scope and the receive signal scatter plot displays.

**AWGN Channel**

The `AWGN Channel`

library block from the Communications Toolbox simulates a noisy channel. You can tune the block `Eb/No`

parameter to see the effect on the PLL `Phase Error`

time scope and the receive signal scatter plot displays.

**Raised Cosine Rx Filter**

The `Raised Cosine Receive Filter`

library block from the Communications Toolbox performs square root FIR filtering with a downsampling factor of 8.

**CORDIC-Based PLL Subsystem**

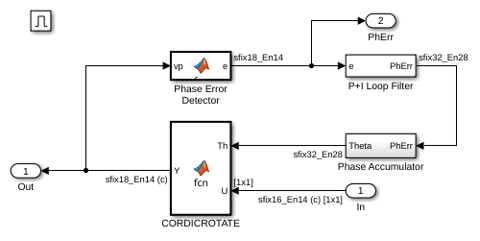

The `CORDIC-Based PLL`

subsystem consists of a `Phase Error Detector`

(PED), `P+I Loop Filter`

, `Phase Accumulator`

, and `CORDICROTATE`

to form the corrected complex signal output values.

### CORDIC-Based PLL

**Phase Error Detector**

The `Phase Error Detector`

is implemented using a MATLAB® function.

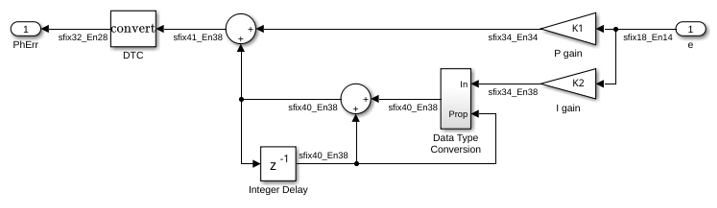

**P+I Loop Filter**

A `P+I Loop Filter`

implements a second order PLL. The loop constants `K1`

(P gain) and `K2`

(I gain) are derived from the `Normalized loop bandwidth`

and `Damping factor`

parameters of the masked `CORDIC-Based PLL`

subsystem.

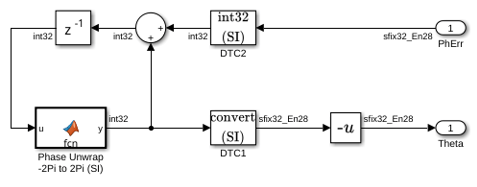

**Phase Accumulator**

The `Phase Accumulator`

computes the angle `Theta`

.

**CORDICROTATE**

The MATLAB function `CORDICROTATE`

rotates the complex received signal by `Theta`

using an iterative, multiplier-less, CORDIC-based algorithm.

### Results and Displays

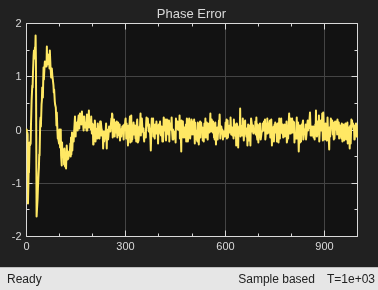

**Phase Error**

Use the `Phase Error`

time scope block to view the time-varying PLL `Phase Error Detector`

output values.

**Scatter Plots**

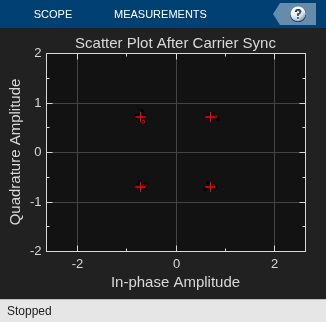

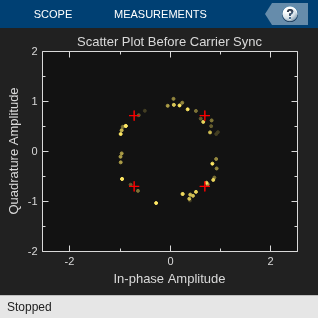

Use the `Before Carrier Synchronization`

and `After Carrier Synchronization`

scope blocks to observe the effects of tuning the `Transmitter Impairments`

and `AWGN Channel`

parameters.

### Experimenting with the Example

**Transmitter Impairments**

To see the effects of transmitter phase and frequency offset impairments, change the `Phase offset`

and `Frequency offset`

parameter values while the model is running. Set the model `StopTime`

to `inf`

and use the `PLL Enable/Disable`

switch to observe changes in the transient response.

**AWGN Channel**

To see the effects of a noisy channel, change the `Eb/No`

parameter value while the model is running. Set the model `StopTime`

to `inf`

and use the `PLL Enable/Disable`

switch to observe changes in the transient response.

**CORDIC-Based PLL**

Vary the PLL `Normalized loop bandwidth`

and `Damping factor`

parameters to tune the underlying `P+I Loop Filter`

behavior while the model is running. Set the model `StopTime`

to `inf`

and use the `PLL Enable/Disable`

switch to observe changes in the transient response.

Note that the phase-locked QPSK receive signal output contains phase ambiguity. For further analysis (e.g., symbol error rate computations), this phase ambiguity may be resolved using one of a number of well known methods, including known training (preamble) signals, varying demodulator phase offsets, constellation re-ordering, etc.
