Set Receive Delay Using Find Delay Block

This example uses:

Open Script

This example shows how to use the Find Delay block to determine the delay between two signals. Here, you can use the same punctured coding model as in Calculate and Specify Receive Delay for Error Rate Block example.

Create and Add Delay Blocks

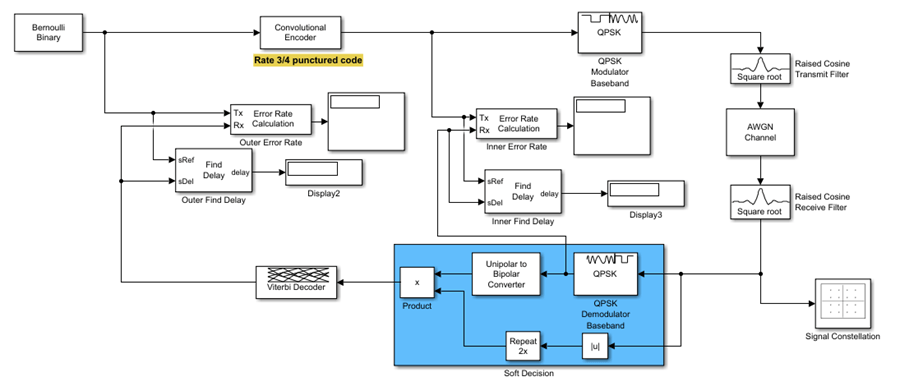

In the punctured coding model, add two Find Delay blocks: one to determine the receive delay for the Inner Error Rate block and one to determine the receive delay for the Outer Error Rate block.

Simulate Model

Now run the model to view the inner and outer receive delay.

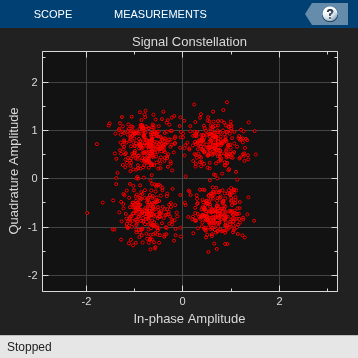

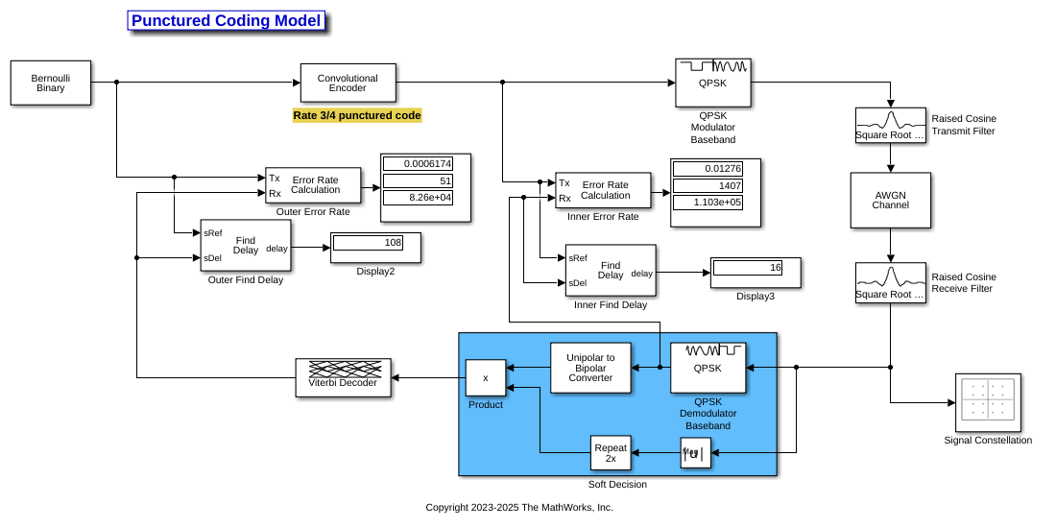

Simulate the model. You can see that the Find Delay block displays have the same values as the receive delay that you calculated in Calculate and Specify Receive Delay for Error Rate Block.
