gridtop

Grid layer topology function

collapse all in page

Syntax

gridtop(dimensions)

Description

pos = gridtop calculates neuron positions for layers whose neurons are arranged in an N-dimensional grid.

gridtop(dimensions) takes one argument:

dimensions

Row vector of dimension sizes

and returns an N-by-S matrix of N coordinate vectors where N is the number of dimensions and S is the product of dimensions.

Examples

collapse all

Display Layer with Grid Pattern

Open Live Script

This example shows how to display a two-dimensional layer with 40 neurons arranged in an 8-by-5 grid pattern.

pos = gridtop([8 5]);
plotsom(pos)

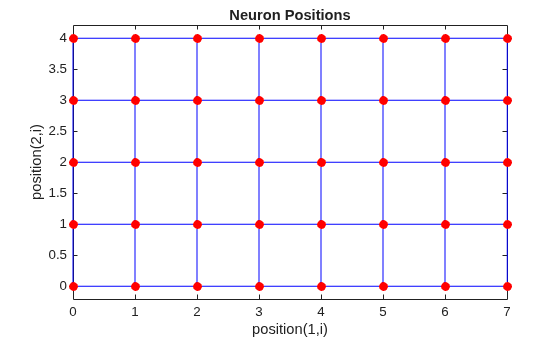

Figure contains an axes object. The axes object with title Neuron Positions, xlabel position(1,i), ylabel position(2,i) contains 2 objects of type line. One or more of the lines displays its values using only markers

Version History

Introduced before R2006a
