iirlp2bsc

Transform IIR lowpass filter to complex bandstop filter

Syntax

[num,den,allpassNum,allpassDen] =
iirlp2bsc(b,a,wo,wt)

Description

[num,den,allpassNum,allpassDen] = iirlp2bsc(b,a,wo,wt) transform an IIR lowpass filter to a complex bandstop filter.

The prototype lowpass filter is specified with the numerator b and the denominator a. The function returns the numerator and denominator coefficients of the transformed complex bandstop filter. The function also returns the numerator, allpassNum, and the denominator, allpassDen, of the allpass mapping filter.

The function transforms a real lowpass prototype filter to a complex bandstop filter by applying a first-order real lowpass to complex bandstop frequency transformation. For more details, see IIR Lowpass Filter to IIR Complex Bandstop Filter Transformation.

example

Examples

collapse all

Transform Lowpass Filter to Complex Bandstop Filter

Open Live Script

Transform a lowpass IIR filter to a complex bandstop filter using the iirlp2bsc function.

Input Lowpass IIR Filter

Design a prototype real IIR lowpass elliptic filter with a gain of about –3 dB at 0.5π rad/sample.

[b,a] = ellip(3,0.1,30,0.409);

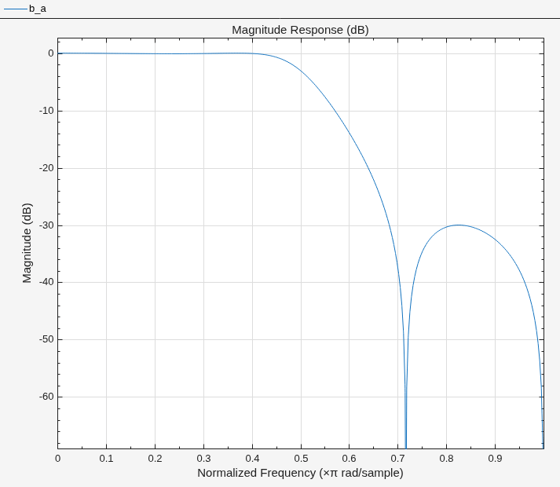

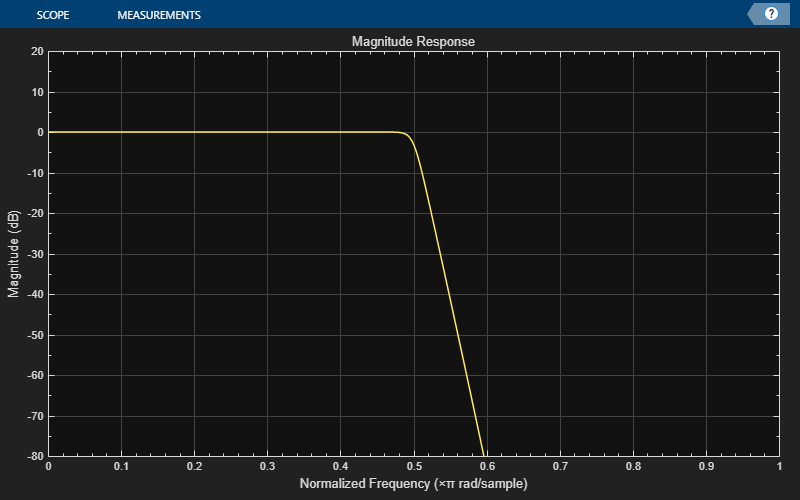

filterAnalyzer(b,a)

Transform Filter Using iirlp2bsc

Transform the prototype lowpass filter into a complex bandstop filter by placing the cutoff frequencies of the prototype filter at –0.25π and 0.75π.

Specify the prototype filter as a vector of numerator and denominator coefficients, b and a respectively.

[num,den] = iirlp2bsc(b,a,0.5,[-0.25 0.75]);

Compare the magnitude response of the filters.

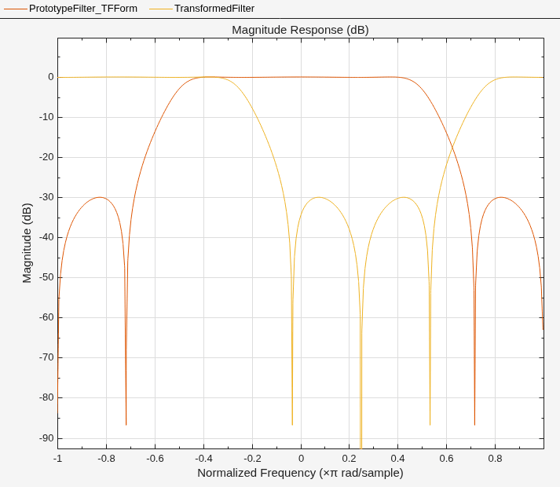

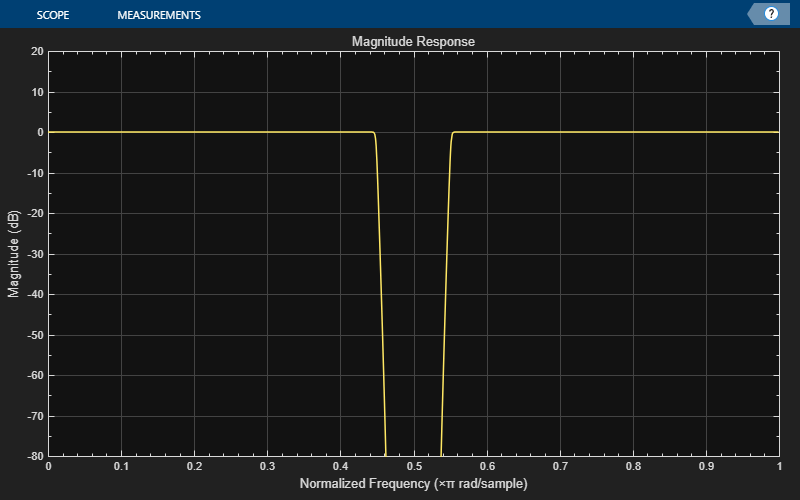

filterAnalyzer(b,a,num,den,FrequencyRange="centered",...
    FilterNames=["PrototypeFilter_TFForm",...
    "TransformedFilter"])

Alternatively, you can also specify the input lowpass IIR filter as a matrix of coefficients. Pass the second-order section coefficient matrices as inputs.

ss = tf2sos(b,a);
[num2,den2] = iirlp2bsc(ss(:,1:3),ss(:,4:6),0.5,[-0.25 0.75]);

Use the sos2ctf function to convert the second-order section matrices to the cascaded transfer function form.

[b_ctf,a_ctf] = sos2ctf(ss);

Compare the magnitude response of the filters.

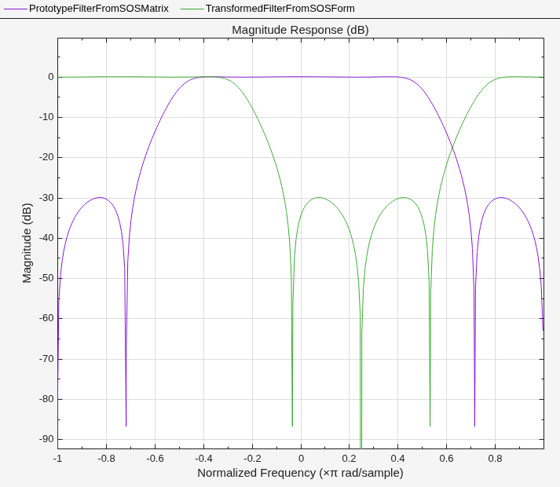

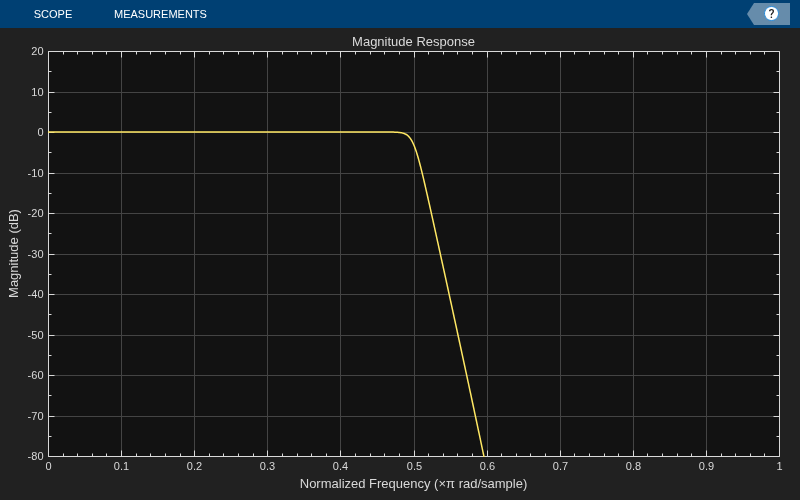

filterAnalyzer(b_ctf,a_ctf,num2,den2,FrequencyRange="centered",...
    FilterNames=["PrototypeFilterFromSOSMatrix", ...
    "TransformedFilterFromSOSForm"])

Input Arguments

collapse all

`b` — Numerator coefficients of prototype lowpass IIR filter
row vector | matrix

Numerator coefficients of the prototype lowpass IIR filter, specified as either:

Row vector –– Specifies the values of [b₀, b₁, …, b_n], given this transfer function form:

$H (z) = \frac{B (z)}{A (z)} = \frac{b_{0} + b_{1} z^{- 1} + \dots + b_{n} z^{- n}}{a_{0} + a_{1} z^{- 1} + \dots + a_{n} z^{- n}},$
where n is the order of the filter.
Matrix –– Specifies the numerator coefficients in the form of an P-by-(Q+1) matrix, where P is the number of filter sections and Q is the order of each filter section. If Q = 2, the filter is a second-order section filter. For higher-order sections, make Q > 2.

$b = [\begin{matrix} b_{01} & b_{11} & b_{21} & ... & b_{Q 1} \\ b_{02} & b_{12} & b_{22} & ... & b_{Q 2} \\ ⋮ & ⋮ & ⋮ & ⋱ & ⋮ \\ b_{0 P} & b_{1 P} & b_{2 P} & \dots & b_{Q P} \end{matrix}]$
In the transfer function form, the numerator coefficient matrix b_ik of the IIR filter can be represented using the following equation:

$H (z) = \prod_{k = 1}^{P} H_{k} (z) = \prod_{k = 1}^{P} \frac{b_{0 k} + b_{1 k} z^{- 1} + b_{2 k} z^{- 2} + \dots + b_{Q k} z^{- Q}}{a_{0 k} + a_{1 k} z^{- 1} + a_{2 k} z^{- 2} + \dots + a_{Q k} z^{- Q}},$
where,
- a –– Denominator coefficients matrix. For more information on how to specify this matrix, see a.
- k –– Row index.
- i –– Column index.
When specified in the matrix form, b and a matrices must have the same number of rows (filter sections) Q.

Data Types: single | double
Complex Number Support: Yes

`a` — Denominator coefficients of prototype lowpass IIR filter
row vector | matrix

Denominator coefficients for a prototype lowpass IIR filter, specified as one of these options:

Row vector –– Specifies the values of [a₀, a₁, …, a_n], given this transfer function form:

$H (z) = \frac{B (z)}{A (z)} = \frac{b_{0} + b_{1} z^{- 1} + \dots + b_{n} z^{- n}}{a_{0} + a_{1} z^{- 1} + \dots + a_{n} z^{- n}},$
where n is the order of the filter.
Matrix –– Specifies the denominator coefficients in the form of an P-by-(Q+1) matrix, where P is the number of filter sections and Q is the order of each filter section. If Q = 2, the filter is a second-order section filter. For higher-order sections, make Q > 2.

$a = [\begin{matrix} a_{01} & a_{11} & a_{21} & \dots & a_{Q 1} \\ a_{02} & a_{12} & a_{22} & \dots & a_{Q 2} \\ ⋮ & ⋮ & ⋮ & ⋱ & ⋮ \\ a_{0 P} & a_{1 P} & a_{2 P} & \dots & a_{Q P} \end{matrix}]$
In the transfer function form, the denominator coefficient matrix a_ik of the IIR filter can be represented using the following equation:

$H (z) = \prod_{k = 1}^{P} H_{k} (z) = \prod_{k = 1}^{P} \frac{b_{0 k} + b_{1 k} z^{- 1} + b_{2 k} z^{- 2} + \dots + b_{Q k} z^{- Q}}{a_{0 k} + a_{1 k} z^{- 1} + a_{2 k} z^{- 2} + \dots + a_{Q k} z^{- Q}},$
where,
- b –– Numerator coefficients matrix. For more information on how to specify this matrix, see b.
- k –– Row index.
- i –– Column index.
When specified in the matrix form, a and b matrices must have the same number of rows (filter sections) P.

Data Types: single | double
Complex Number Support: Yes

`wo` — Frequency value to transform from prototype filter
real scalar

Frequency value to transform from the prototype filter, specified as a scalar. Frequency wo should be normalized to be between 0 and 1, with 1 corresponding to half the sample rate.

Data Types: single | double

`wt` — Desired frequency locations in transformed target filter
two-element vector

Desired frequency locations in the transformed target filter, specified as a two-element vector. Frequencies in wt should be normalized to be between -1 and 1, with 1 corresponding to half the sample rate.

Data Types: single | double

Output Arguments

collapse all

`num` — Numerator coefficients of transformed complex bandstop filter
row vector | matrix

Numerator coefficients of the transformed complex bandstop filter, returned as one of the following:

Row vector of length n+1, where n is the order of the input filter. The num output is a row vector when the input coefficients b and a are row vectors.
P-by-(Q+1) matrix, where P is the number of filter sections and Q is the order of each section of the transformed filter. The num output is a matrix when the input coefficients b and a are matrices.

Data Types: single | double
Complex Number Support: Yes

`den` — Denominator coefficients of transformed complex bandstop filter
row vector | matrix

Denominator coefficients of the transformed complex bandstop filter, returned as one of the following:

Row vector of length n+1, where n is the order of the input filter. The den output is a row vector when the input coefficients b and a are row vectors.
P-by-(Q+1) matrix, where P is the number of filter sections and Q is the order of each section of the transformed filter. The den output is a matrix when the input coefficients b and a are matrices.

Data Types: single | double
Complex Number Support: Yes

`allpassNum` — Numerator coefficients of mapping filter
row vector

Numerator of the mapping filter, returned as a row vector.

Data Types: single | double
Complex Number Support: Yes

`allpassDen` — Denominator coefficients of mapping filter
row vector

Denominator of the mapping filter, returned as a row vector.

Data Types: single | double
Complex Number Support: Yes

More About

collapse all

IIR Lowpass Filter to IIR Complex Bandstop Filter Transformation

IIR Lowpass Filter to IIR Complex Bandstop Filter transformation effectively places one feature of the original filter, located at frequency −w_o, at the required target frequency location, w_t1, and the second feature, originally at w_o, at the new location, w_t2. It is assumed that w_t2 is greater than w_t1. Additionally, the transformation swaps passbands with stopbands in the target filter.

Relative positions of other features of the original filter do not change in the target filter. This means that it is possible to select two features of an original filter, F₁ and F₂, with F₁ preceding F₂. Feature F₁ will still precede F₂ after the transformation. However, the distance between F₁ and F₂ will not be the same before and after the transformation.

Choice of the feature subject to the lowpass to bandstop transformation is not restricted only to the cutoff frequency of an original lowpass filter. You can choose to transform any feature of the original filter like stopband edge, DC, deep minimum in the stopband, or others.

Lowpass to bandpass transformation can also be used to transform other types of filters, for example. real notch filters or resonators can be doubled and positioned at two distinct desired frequencies at any place around the unit circle forming a pair of complex notches/resonators. This transformation can be used for designing bandstop filters for band attenuation or frequency equalizers, from the high-quality prototype lowpass filter.
