PIL Simulation
R2026bA processor-in-the-loop (PIL) simulation cross-compiles generated source code on the host computer, downloads the executable to an Infineon AURIX™ hardware board, and runs the code on the target processor or an equivalent instruction set simulator. By comparing normal and PIL simulation results, you can test the numerical equivalence of your model and the generated code. During PIL simulation, you can also collect code coverage and execution-time metrics for the generated code.
Topics
- Processor-in-the-Loop (PIL) Simulation
Test the code generated from top models, referenced models, or subsystems on Infineon AURIX TC3x microcontrollers.
- Model Reference PIL Simulation
Processor-in-the-Loop (PIL) simulation techniques for Infineon AURIX hardware boards.
Featured Examples
Code Verification and Validation with PIL
Use Embedded Coder® Support Package for Infineon AURIX™ TC3x Microcontrollers for code verification and validation using PIL.

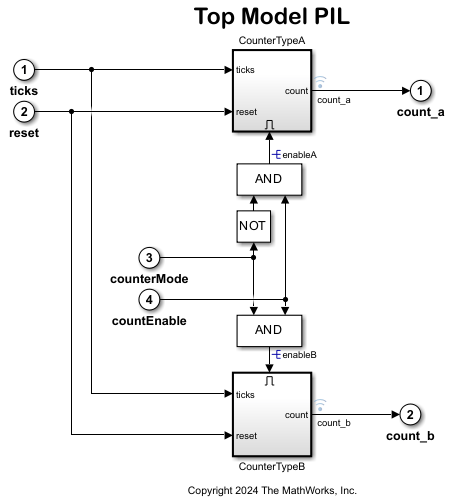

PIL Simulation for AUTOSAR Software Component with Infineon AURIX TC3x Microcontroller
Use Embedded Coder® Support Package for Infineon AURIX™ TC3x Microcontrollers for code verification and validation of AUTOSAR component models using PIL. This example uses Simulink® models with Infineon AURIX TC3x board mapped to a classic AUTOSAR software component, generating code that complies with the AUTOSAR standard.

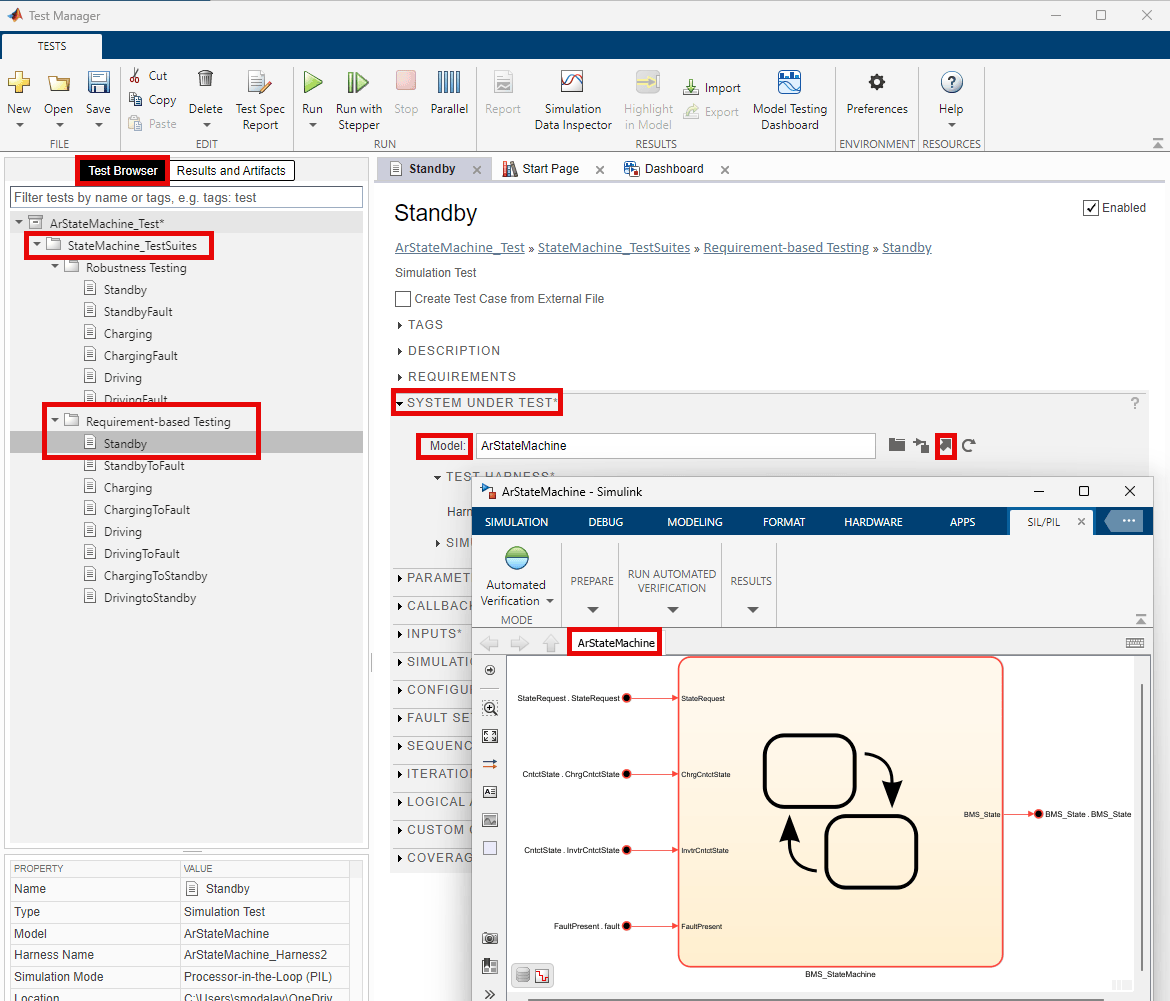

Code Verification Using PIL Simulation on Infineon AURIX TC3x Microcontrollers for ISO 26262 Certification
Verify generated code on an Infineon AURIX™ TC3x hardware board using processor-in-the-loop (PIL) simulation. The example uses a Model-Based Design example from the IEC Certification Kit.
