Configure C++ Entry-Point Function Interfaces for Simulink Function and Function Caller Blocks

Open Example Model

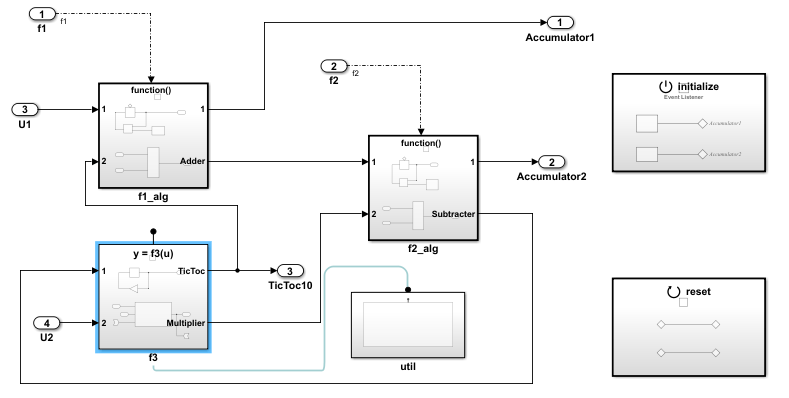

Open example model SimulinkFunctions. Save a copy of the model to a writable location.

model = 'SimulinkFunctions';
open_system(model);

Change Language Setting for Code Generation

Set the model configuration parameter Language to C++.

set_param(model,'TargetLang','C++');

Change Visibility of Simulink Function

Change the visibility of the global function f3 from global to scoped. Open the Simulink Function block f3. Inside the function block, double-click the Trigger Port block f3. In the block parameters dialog box, set Function visibility to scoped. Click Apply and OK.

set_param('SimulinkFunctions/f3/f3','FunctionVisibility','scoped'); pause(1);

Open Configure C/C++ Function Interface Dialog Box

Open the Embedded Coder app. In the Code Mappings editor, click the Functions tab.

In the row for Simulink Function:f3, click the method preview hyperlink. The Configure C/C++ Function Interface dialog box shows Simulink function prototype as y = f3(u) and C/C++ function prototype as void f3(rtu_u, * rty_y).

Configure Simulink Function Prototype

Configure the function arguments. For this example, set C/C++ type Qualifier for the u argument to Const Reference and the y argument to Reference. Then click Apply.

Alternatively, call the setFunction function with the desired function prototype.

coderMapObj = coder.mapping.utils.create(model);
fcnPrototype = '(const &u, &y)';
setFunction(coderMapObj,'SimulinkFunction:f3','Arguments',fcnPrototype);

In the Code Mappings editor, verify your change by checking the method preview. Your modifications, whether made to a Simulink Function block or a Function Caller block, affect code generation for the Simulink Function block and corresponding Function Caller blocks in the model.

Save your changes by clicking OK.

Generate code for the model.

evalc('slbuild(model)');

In the Code view, open the generated file SimulinkFunctions.cpp and search for function f3. The generated function code reflects the changes to the generated C++ function prototype.

file = fullfile('SimulinkFunctions_ert_rtw','SimulinkFunctions.cpp');
coder.example.extractLines(file,"void SimulinkFunctions::f3",...
    "// Model initialize function",1,0);

void SimulinkFunctions::f3(const real_T &rtu_u, real_T &rty_y)
{
  int8_T rtb_Gain;

  // Outputs for Function Call SubSystem: '<Root>/f3'
  // Outport: '<Root>/TicToc10' incorporates:
  //   UnitDelay: '<S5>/Delay'

  rtY.TicToc10 = rtDWork.Delay_DSTATE;

  // Gain: '<S5>/Gain' incorporates:
  //   Outport: '<Root>/TicToc10'

  rtb_Gain = static_cast<int8_T>(-rtY.TicToc10);

  // FunctionCaller: '<S5>/Function Caller' incorporates:
  //   Inport: '<Root>/U2'
  //   SignalConversion generated from: '<S5>/In1'
  //   SignalConversion generated from: '<S5>/u'

  adder(rtB.Subtract, rtU.U2, rtu_u, &rtB.FunctionCaller);

  // SignalConversion generated from: '<S5>/y'
  rty_y = rtB.FunctionCaller;

  // Update for UnitDelay: '<S5>/Delay'
  rtDWork.Delay_DSTATE = rtb_Gain;

  // End of Outputs for SubSystem: '<Root>/f3'
}
