Optimize Implicit Expansion in Generated Code

Implicit expansion in the generated code is enabled by default. The code generator introduces modifications in the generated code to perform implicit expansion. The changes in the generated code might result in additional code to expand the operands. The expansion of the operands might affect the performance of the generated code. See Generate Code With Implicit Expansion Enabled (MATLAB Coder).

Implicit expansion might change the size of the outputs from the supported operators and functions causing size and type mismatch errors in your workflow.

For fine-grained control of where implicit expansion is enabled in the generated code, use the following functions in your MATLAB^® code:

coder.noImplicitExpansionInFunction (MATLAB Coder)
coder.sameSizeBinaryOp (MATLAB Coder)

For example, consider this code snippet. The function vector_sum finds the sum of two arrays of compatible sizes.

function out = vector_sum(a,b)
out = b + a;
end

The types of operands a and b are defined as:

a_type = coder.typeof(1,[2 1])       %size: 2x1
b_type = coder.typeof(1,[2 Inf])     %size: 2x:inf

Without implicit expansion, the size of the out variable is calculated as 2x1.

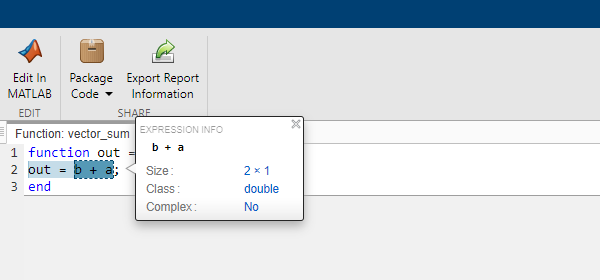

Image of the Code Generation Report while hovering over the plus operation. A dialog box generated from the operation outlines the size, class, and complexity of the operation. The size of the output variable out without implicit expansion is shown as 2 x 1.

With implicit expansion, the size of the variable out is calculated as 2x:?.

Image of the Code Generation Report while hovering over the plus operation. A dialog box generated from the operation outlines the size, class, and complexity. Also mentions that the dimensions shown in bold imply the possible use of implicit expansion. The size of the output variable, out, is shown as 2 x :?.

These code snippets outline the changes in the generated code for the function vector_sum, while implicit expansion is disabled and enabled. To generate the code, the types of operands a and b are defined as:

a_type = coder.typeof(1,[1 Inf])       %size: 1x:inf
b_type = coder.typeof(1,[1 Inf])       %size: 1x:inf

Generated Code With Implicit Expansion Disabled	Generated Code With Implicit Expansion Enabled
void vector_sum(const emxArray_real_T a, const emxArray_real_T b, emxArray_real_T out) { int i; int loop_ub; i = out->size[0] out->size[1]; out->size[0] = 1; out->size[1] = b->size[1]; emxEnsureCapacity_real_T(out, i); loop_ub = b->size[1]; for (i = 0; i < loop_ub; i++) { out->data[i] = b->data[i] + a->data[i]; } }	static void plus(emxArray_real_T out, const emxArray_real_T b, const emxArray_real_T a) { int i; .... if (a->size[1] == 1) { out->size[1] = b->size[1]; } else { out->size[1] = a->size[1]; } .... if (a->size[1] == 1) { loop_ub = b->size[1]; } else { loop_ub = a->size[1]; } for (i = 0; i < loop_ub; i++) { out->data[i] = b->data[i stride_0_1] + a->data[i * stride_1_1]; } } void vector_sum(const emxArray_real_T a, const emxArray_real_T b, emxArray_real_T out) { int i; int loop_ub; if (b->size[1] == a->size[1]) { i = out->size[0] out->size[1]; out->size[0] = 1; out->size[1] = b->size[1]; emxEnsureCapacity_real_T(out, i); loop_ub = b->size[1]; for (i = 0; i < loop_ub; i++) { out->data[i] = b->data[i] + a->data[i]; } } else { plus(out, b, a); } }

Generated Code With Implicit Expansion Disabled

Generated Code With Implicit Expansion Enabled

void vector_sum(const emxArray_real_T *a, const emxArray_real_T *b,
                emxArray_real_T *out)
{
  int i;
  int loop_ub;
  i = out->size[0] * out->size[1];
  out->size[0] = 1;
  out->size[1] = b->size[1];
  emxEnsureCapacity_real_T(out, i);
  loop_ub = b->size[1];
  for (i = 0; i < loop_ub; i++) {
    out->data[i] = b->data[i] + a->data[i];
  }
}

static void plus(emxArray_real_T *out, const emxArray_real_T *b,
                 const emxArray_real_T *a)
{
  int i;
  ....
  if (a->size[1] == 1) {
    out->size[1] = b->size[1];
  } else {
    out->size[1] = a->size[1];
  }
  ....
  if (a->size[1] == 1) {
    loop_ub = b->size[1];
  } else {
    loop_ub = a->size[1];
  }
  for (i = 0; i < loop_ub; i++) {
    out->data[i] = b->data[i * stride_0_1] + a->data[i * stride_1_1];
  }
}
void vector_sum(const emxArray_real_T *a, const emxArray_real_T *b,
                emxArray_real_T *out)
{
  int i;
  int loop_ub;
  if (b->size[1] == a->size[1]) {
    i = out->size[0] * out->size[1];
    out->size[0] = 1;
    out->size[1] = b->size[1];
    emxEnsureCapacity_real_T(out, i);
    loop_ub = b->size[1];
    for (i = 0; i < loop_ub; i++) {
      out->data[i] = b->data[i] + a->data[i];
    }
  } else {
    plus(out, b, a);
  }
}

Disable Implicit Expansion in Specified Function by Using `coder.noImplicitExpansionInFunction`

If you require implicit expansion in your project but not in specific functions, disable implicit expansion for the generated code of that function by calling coder.noImplicitExpansionInFunction (MATLAB Coder) within the function.

For example, the code generated for vector_sum does not apply implicit expansion.

MATLAB Code Generated Code with coder.sameSizeBinaryOp

MATLAB Code	Generated Code with `coder.sameSizeBinaryOp`
function out = vector_sum(a,b) coder.noImplicitExpansionInFunction(); out = a + b; end a = coder.typeof(1,[1 Inf]) %size: 1x:inf b = coder.typeof(1,[1 Inf]) %size: 1x:inf codegen vector_sum -launchreport ... -args {a,b} -config:lib	void vector_sum(const emxArray_real_T a, const emxArray_real_T b, emxArray_real_T out) { int i; int loop_ub; i = out->size[0] out->size[1]; out->size[0] = 1; out->size[1] = a->size[1]; emxEnsureCapacity_real_T(out, i); loop_ub = a->size[1]; for (i = 0; i < loop_ub; i++) { out->data[i] = a->data[i] + b->data[i]; } }

function out = vector_sum(a,b)
coder.noImplicitExpansionInFunction();
out = a + b;
end

a = coder.typeof(1,[1 Inf]) %size: 1x:inf
b = coder.typeof(1,[1 Inf]) %size: 1x:inf
codegen vector_sum -launchreport
... -args {a,b} -config:lib

void vector_sum(const emxArray_real_T *a,
const emxArray_real_T *b, emxArray_real_T *out)
{
  int i;
  int loop_ub;
  i = out->size[0] * out->size[1];
  out->size[0] = 1;
  out->size[1] = a->size[1];
  emxEnsureCapacity_real_T(out, i);
  loop_ub = a->size[1];
  for (i = 0; i < loop_ub; i++) {
    out->data[i] = a->data[i] + b->data[i];
  }
}

Note

coder.noImplicitExpansionInFunction does not disable implicit expansion in your MATLAB code. It disables implicit expansion only in the generated code.

Disable Implicit Expansion for Specific Binary Operation by Using `coder.sameSizeBinaryOp`

Use the function coder.sameSizeBinaryOp (MATLAB Coder) to perform an error check to ensure that the operands are the same size and prevent the code generator from generating implicitly expanded code for that function.

For example, this code snippet applies the plus operation by using coder.sameSizeBinaryOp without implicit expansion.

MATLAB Code	Generated Code
function out = vector_sum(a,b) out = coder.sameSizeBinaryOp(@plus, a, b); end a = coder.typeof(1,[1 Inf]) %size: 1x:inf b = coder.typeof(1,[1 Inf]) %size: 1x:inf codegen vector_sum -launchreport ... -args {a,b} -config:lib	void vector_sum(const emxArray_real_T a, const emxArray_real_T b, emxArray_real_T out) { int i; int loop_ub; i = out->size[0] out->size[1]; out->size[0] = 1; out->size[1] = a->size[1]; emxEnsureCapacity_real_T(out, i); loop_ub = a->size[1]; for (i = 0; i < loop_ub; i++) { out->data[i] = a->data[i] + b->data[i]; } }

MATLAB Code

Generated Code

function out = vector_sum(a,b)
out = coder.sameSizeBinaryOp(@plus, a, b);
end

a = coder.typeof(1,[1 Inf]) %size: 1x:inf
b = coder.typeof(1,[1 Inf]) %size: 1x:inf
codegen vector_sum -launchreport
... -args {a,b} -config:lib

void vector_sum(const emxArray_real_T *a,
const emxArray_real_T *b, emxArray_real_T *out)
{
  int i;
  int loop_ub;
  i = out->size[0] * out->size[1];
  out->size[0] = 1;
  out->size[1] = a->size[1];
  emxEnsureCapacity_real_T(out, i);
  loop_ub = a->size[1];
  for (i = 0; i < loop_ub; i++) {
    out->data[i] = a->data[i] + b->data[i];
  }
}

coder.sameSizeBinaryOp does not support scalar expansion. Operands given to coder.sameSizeBinaryOp must be of the same size.

Disable Implicit Expansion in your Project

If you do not require implicit expansion in your generated code or do not want the modifications to affect your generated code, turn it off by setting the EnableImplicitExpansion (MATLAB Coder) flag in your coder.config object to false. This flag is set to true by default.

cfg = coder.config;
cfg.EnableImplicitExpansion = false;

Disable implicit expansion in your Simulink^® model by setting the model-wide parameter Enable Implicit Expansion in MATLAB functions to false. Alternatively, use this command:

set_param(gcs,'EnableImplicitExpansion',false);

Note

Before turning off implicit expansion, ensure that the external code does not use implicit expansion. Disabling implicit expansion for an entire project might cause errors when generating code if your project includes MATLAB code from external sources.
