Crosshair

R2026b

Crosshair region of interest

Description

A Crosshair object specifies the position of an axes-based crosshair region of interest (ROI). You can customize the appearance and interactive behavior of the ROI.

Axes-based ROIs enable you to draw and edit regions of interest on images displayed using imshow or in MATLAB^® axes. Axes-based ROIs offer maximum customization of appearance and behavior, including line width, marker style, and edge color. Use axes-based ROIs for fine-grained control over ROI appearance, integration with existing axes-based apps, or access to the assisted freehand, crosshair, or cuboid ROI types. For a comparison of axes-based ROIs with other ROIs, see Choose Approach to Annotate ROIs in Images.

A horizontal line and a vertical line intersect to form a crosshair.

For more information about using this ROI, including keyboard shortcuts, see Tips.

Creation

There are two ways to create a Crosshair object. For more information, see Create Axes-Based ROIs.

Use the drawcrosshair function. Use this function when you want to create the ROI and set the appearance in a single command. You can specify the position of the ROI interactively by drawing the ROI over an image using the mouse, or programmatically by using name-value arguments.
Use the images.roi.Crosshair function described here. Use this function when you want to specify the appearance and behavior of the ROI before you specify the position of the ROI. After creating the object, you can specify the position interactively by using the draw function or programmatically by modifying properties of the object.

Syntax

roi = images.roi.Crosshair

roi = images.roi.Crosshair(ax)

roi = images.roi.Crosshair(___,PropertyName=Value)

Description

roi = images.roi.Crosshair creates a Crosshair object with default properties.

example

roi = images.roi.Crosshair(ax) creates the ROI in the axes specified by ax.

roi = images.roi.Crosshair(___,PropertyName=Value) sets properties of the ROI using one or more name-value arguments.

Example: images.roi.Crosshair(Color="y") creates a yellow colored Crosshair object.

Input Arguments

expand all

`ax` — Parent of ROI
`gca` (default) | `Axes` object | `UIAxes` object

Parent of the ROI, specified as an Axes object or a UIAxes object.

Properties

expand all

Shape and Position

`Position` — Position of ROI
1-by-2 numeric vector

Position of the ROI, specified as a 1-by-2 numeric vector of the form [x y]. The values x and y specify the x- and y-coordinates of the location where the horizontal line crosses the vertical line in the crosshair ROI. This value changes automatically when you draw or move the ROI.

Color and Styling

`Color` — ROI color
`[0 0.4470 0.7410]` (default) | RGB triplet | hexadecimal color code | color name | short color name

ROI color, specified as an RGB triplet, a hexadecimal color code, a color name, or a short color name.

For a custom color, specify an RGB triplet or a hexadecimal color code.

An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1], for example, [0.4 0.6 0.7].
A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Therefore, the color codes "#FF8800", "#ff8800", "#F80", and "#f80" are equivalent.

Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and the hexadecimal color codes.

Color Name	Short Name	RGB Triplet	Hexadecimal Color Code
`"red"`	`"r"`	`[1 0 0]`	`"#FF0000"`
`"green"`	`"g"`	`[0 1 0]`	`"#00FF00"`
`"blue"`	`"b"`	`[0 0 1]`	`"#0000FF"`
`"cyan"`	`"c"`	`[0 1 1]`	`"#00FFFF"`
`"magenta"`	`"m"`	`[1 0 1]`	`"#FF00FF"`
`"yellow"`	`"y"`	`[1 1 0]`	`"#FFFF00"`
`"black"`	`"k"`	`[0 0 0]`	`"#000000"`
`"white"`	`"w"`	`[1 1 1]`	`"#FFFFFF"`

This table lists the default color palettes for plots in the light and dark themes.

Palette Palette Colors

Palette	Palette Colors
`"gem"` — Light theme default Before R2025a: Most plots use these colors by default.
`"glow"` — Dark theme default

"gem" — Light theme default

Before R2025a: Most plots use these colors by default.

"glow" — Dark theme default

You can get the RGB triplets and hexadecimal color codes for these palettes using the orderedcolors and rgb2hex functions. For example, get the RGB triplets for the "gem" palette and convert them to hexadecimal color codes.

RGB = orderedcolors("gem");
H = rgb2hex(RGB);

Example: Color="r"

Example: Color="green"

Example: Color=[0 0.4470 0.7410]

Example: Color="#00FFFF"

`LineWidth` — Width of ROI border
positive number

Width of the ROI border, specified as a positive number in points. The default value is three times the number of points per screen pixel, such that the border is three pixels wide.

`SelectedColor` — Color of ROI when selected
`"none"` (default) | RGB triplet | hexadecimal color code | color name | short color name

Color of the ROI when selected, specified as an RGB triplet, a hexadecimal color code, a color name, a short color name, or "none". If you specify "none", then the value of Color defines the color of the ROI for all states, selected or not.

For a custom color, specify an RGB triplet or a hexadecimal color code.

An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1], for example, [0.4 0.6 0.7].
A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Therefore, the color codes "#FF8800", "#ff8800", "#F80", and "#f80" are equivalent.

Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and the hexadecimal color codes.

Color Name	Short Name	RGB Triplet	Hexadecimal Color Code
`"red"`	`"r"`	`[1 0 0]`	`"#FF0000"`
`"green"`	`"g"`	`[0 1 0]`	`"#00FF00"`
`"blue"`	`"b"`	`[0 0 1]`	`"#0000FF"`
`"cyan"`	`"c"`	`[0 1 1]`	`"#00FFFF"`
`"magenta"`	`"m"`	`[1 0 1]`	`"#FF00FF"`
`"yellow"`	`"y"`	`[1 1 0]`	`"#FFFF00"`
`"black"`	`"k"`	`[0 0 0]`	`"#000000"`
`"white"`	`"w"`	`[1 1 1]`	`"#FFFFFF"`

This table lists the default color palettes for plots in the light and dark themes.

Palette Palette Colors

Palette	Palette Colors
`"gem"` — Light theme default Before R2025a: Most plots use these colors by default.
`"glow"` — Dark theme default

"gem" — Light theme default

Before R2025a: Most plots use these colors by default.

"glow" — Dark theme default

RGB = orderedcolors("gem");
H = rgb2hex(RGB);

Example: SelectedColor="r"

Example: SelectedColor="green"

Example: SelectedColor=[0 0.4470 0.7410]

Example: SelectedColor="#00FFFF"

`StripeColor` — Color of ROI stripe
`"none"` (default) | RGB triplet | hexadecimal color code | color name | short color name

Color of the ROI stripe, specified as an RGB triplet, a hexadecimal color code, a color name, a short color name, or "none". If you specify "none", then the ROI edge is a solid color specified by Color. Otherwise, the edge of the ROI is striped, with colors alternating between the colors specified by Color and StripeColor.

For a custom color, specify an RGB triplet or a hexadecimal color code.

An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1], for example, [0.4 0.6 0.7].
A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Therefore, the color codes "#FF8800", "#ff8800", "#F80", and "#f80" are equivalent.

Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and the hexadecimal color codes.

Color Name	Short Name	RGB Triplet	Hexadecimal Color Code
`"red"`	`"r"`	`[1 0 0]`	`"#FF0000"`
`"green"`	`"g"`	`[0 1 0]`	`"#00FF00"`
`"blue"`	`"b"`	`[0 0 1]`	`"#0000FF"`
`"cyan"`	`"c"`	`[0 1 1]`	`"#00FFFF"`
`"magenta"`	`"m"`	`[1 0 1]`	`"#FF00FF"`
`"yellow"`	`"y"`	`[1 1 0]`	`"#FFFF00"`
`"black"`	`"k"`	`[0 0 0]`	`"#000000"`
`"white"`	`"w"`	`[1 1 1]`	`"#FFFFFF"`

This table lists the default color palettes for plots in the light and dark themes.

Palette Palette Colors

Palette	Palette Colors
`"gem"` — Light theme default Before R2025a: Most plots use these colors by default.
`"glow"` — Dark theme default

"gem" — Light theme default

Before R2025a: Most plots use these colors by default.

"glow" — Dark theme default

RGB = orderedcolors("gem");
H = rgb2hex(RGB);

Example: StripeColor="r"

Example: StripeColor="green"

Example: StripeColor=[0 0.4470 0.7410]

Example: StripeColor="#00FFFF"

`Visible` — ROI visibility
`"on"` (default) | `"off"` | on/off logical value

ROI visibility, specified as "on" or "off", or as a numeric or logical 0 (false) or 1 (true). A value of "on" is equivalent to true, and "off" is equivalent to false. The value is stored as an on/off logical value of type OnOffSwitchState.

Value	Description
`"on"`	Display the ROI.
`"off"`	Hide the ROI without deleting it. You can still access the properties of an invisible ROI.

Labels

`Label` — ROI label
`''` (default) | character vector | string scalar

ROI label, specified as a character vector or string scalar. By default, the ROI has no label ('').

`LabelAlpha` — Transparency of text background
`1` (default) | number in the range [0, 1]

Transparency of the text background, specified as a number in the range [0, 1]. When set to 1, the text background is completely opaque. When set to 0, the text background is completely transparent.

`LabelTextColor` — Label text color
`"black"` (default) | RGB triplet | hexadecimal color code | color name | short color name

Label text color, specified as an RGB triplet, a hexadecimal color code, a color name, or a short color name.

For a custom color, specify an RGB triplet or a hexadecimal color code.

An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1], for example, [0.4 0.6 0.7].
A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Therefore, the color codes "#FF8800", "#ff8800", "#F80", and "#f80" are equivalent.

Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and the hexadecimal color codes.

Color Name	Short Name	RGB Triplet	Hexadecimal Color Code
`"red"`	`"r"`	`[1 0 0]`	`"#FF0000"`
`"green"`	`"g"`	`[0 1 0]`	`"#00FF00"`
`"blue"`	`"b"`	`[0 0 1]`	`"#0000FF"`
`"cyan"`	`"c"`	`[0 1 1]`	`"#00FFFF"`
`"magenta"`	`"m"`	`[1 0 1]`	`"#FF00FF"`
`"yellow"`	`"y"`	`[1 1 0]`	`"#FFFF00"`
`"black"`	`"k"`	`[0 0 0]`	`"#000000"`
`"white"`	`"w"`	`[1 1 1]`	`"#FFFFFF"`

This table lists the default color palettes for plots in the light and dark themes.

Palette Palette Colors

Palette	Palette Colors
`"gem"` — Light theme default Before R2025a: Most plots use these colors by default.
`"glow"` — Dark theme default

"gem" — Light theme default

Before R2025a: Most plots use these colors by default.

"glow" — Dark theme default

RGB = orderedcolors("gem");
H = rgb2hex(RGB);

Example: LabelTextColor="r"

Example: LabelTextColor="green"

Example: LabelTextColor=[0 0.4470 0.7410]

Example: LabelTextColor="#00FFFF"

`LabelVisible` — Label visibility
`"on"` (default) | `"off"` | `"hover"`

Label visibility, specified as one of these values.

Value	Description
`"on"`	Label is visible when the ROI is visible.
`"hover"`	Label is visible only when the mouse is hovering over the ROI.
`"off"`	Label is not visible.

Interactivity

`ContextMenu` — Context menu
`ContextMenu` object

Context menu that displays when you right-click the ROI, specified as a ContextMenu object. You can create a custom context menu by using the uicontextmenu function and then configuring context menu properties.

`Deletable` — Context menu provides option to delete the ROI
`true` or `1` (default) | `false` or `0`

Context menu provides an option to delete the ROI, specified as a numeric or logical 1 (true) or 0 (false). When the value is true, you can delete the ROI interactively using the context menu. When the value is false, the context menu option to delete the ROI is disabled.

In both cases, you can delete the ROI outside of the context menu by using the delete function.

`DrawingArea` — Area of axes in which you can interactively place ROI
`"auto"` (default) | `"unlimited"` | `[x,y,w,h]`

Area of the axes in which you can interactively place the ROI, specified as one of the values in this table.

Value	Description
`"auto"`	The drawing area is the current axes limits (default).
`"unlimited"`	The drawing area has no boundary and ROIs can be drawn or dragged to extend beyond the axes limits.
`[x,y,w,h]`	The drawing area is restricted to a rectangular region beginning at (x,y), and extending to width w and height h.

`InteractionsAllowed` — Interactivity of ROI
`"all"` (default) | `"none"`

Interactivity of the ROI, specified as one of the values in this table.

Value	Description
`"all"`	The ROI is fully interactable.
`"none"`	The ROI is not interactable, and no drag points are visible.

`Selected` — Selection state of ROI
`false`, `0`, or `"off"` (default) | `true`, `1`, or `"on"`

Selection state of the ROI, specified as "off" or "on", or as a numeric or logical 0 (false) or 1 (true). A value of "off" is equivalent to false, and "on" is equivalent to true.

You can also set this property interactively. For example, clicking on the ROI selects the ROI and sets this property to true. Similarly, pressing the Ctrl key and clicking the ROI deselects the ROI and sets the value of this property to false.

Parent/Child

`HandleVisibility` — Visibility of ROI handle in `Children` property of parent
`"on"` (default) | `"off"` | `"callback"`

Visibility of the ROI handle in the Children property of the parent, specified as one of the values in this table.

Value	Description
`"on"`	The object handle is always visible (default).
`"off"`	The object handle is hidden at all times.
`"callback"`	The object handle is visible from within callbacks or functions invoked by callbacks, but not from within functions invoked from the command line.

`Parent` — ROI parent
`Axes` object | `UIAxes` object

ROI parent, specified as an Axes or UIAxes object.

Identifiers

`Tag` — Tag to associate with ROI
`''` (default) | character vector | string scalar

Tag to associate with the ROI, specified as a character vector or string scalar. Use the tag value to find the ROI object in a hierarchy of objects using the findobj function.

`UserData` — Data to associate with ROI
any MATLAB data

Data to associate with the ROI, specified as any MATLAB data. For example, you can specify a scalar, vector, matrix, cell array, string, character array, table, or structure. The Crosshair object does not use this data.

Object Functions

`addlistener`	Create event listener bound to event source
`beginDrawingFromPoint`	Begin drawing ROI from specified point
`bringToFront`	Bring ROI to front of Axes stacking order
`draw`	Begin drawing ROI interactively
`wait`	Block MATLAB command line until ROI operation is finished

Examples

collapse all

Create Crosshair ROI

Open Script

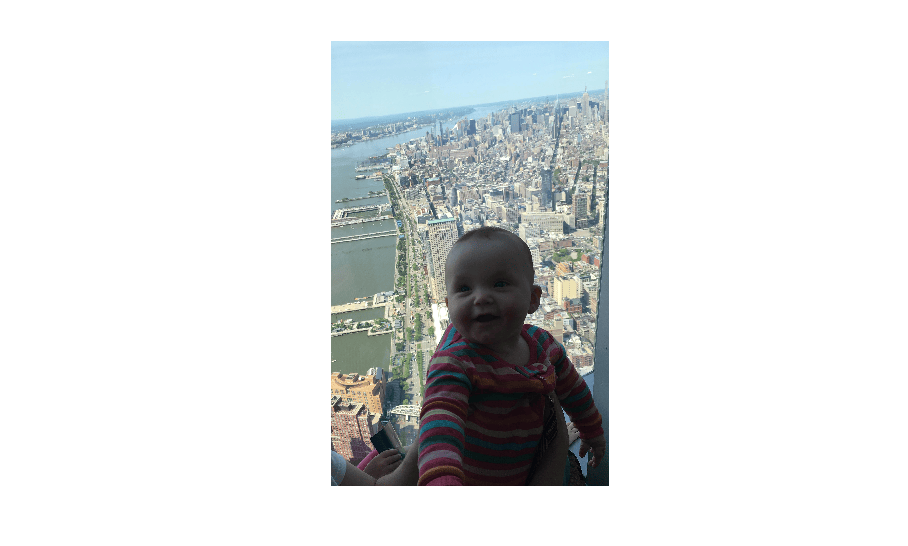

Read an image into the workspace and display it.

I = imread('baby.jpg');
figure;
imshow(I)

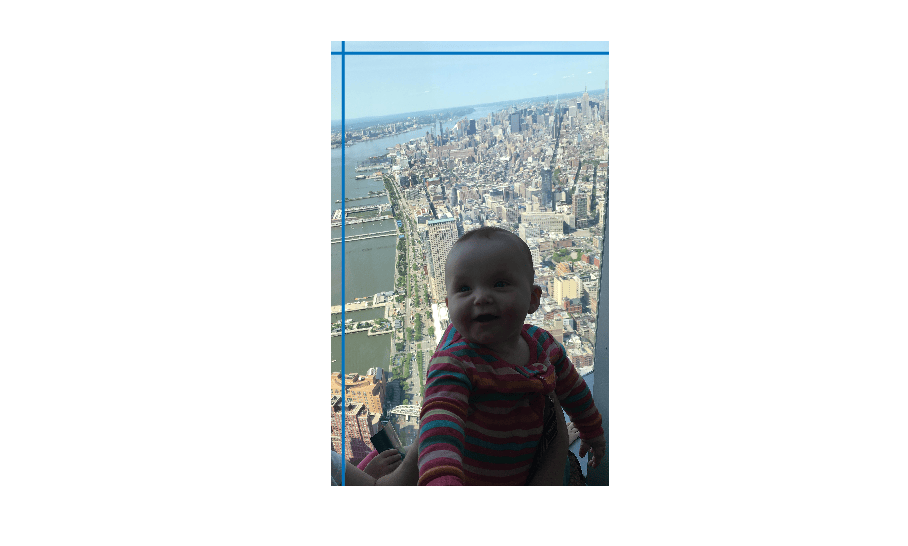

Place a crosshair ROI on the image programmatically. When you specify the position of the ROI, you must specify the axes.

h = images.roi.Crosshair(gca,'Position',[100,100]);

Create Crosshair Tool to Check Pixel Values

Open Live Script

Read an image into the workspace.

img = imread("coins.png");

Display the image in a figure.

figure
hAx = gca;
imObj = imshow(img,Parent=hAx);
imObj.Parent.Visible = "on";

Create a crosshair ROI associated with the image. The crosshair does not have a position yet and therefore does not display on the image.

h = images.roi.Crosshair(Parent=hAx,LineWidth=1,Color="y");

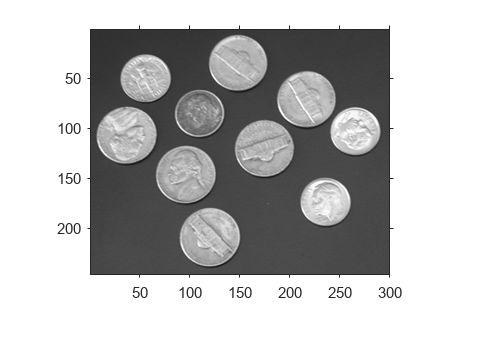

Figure contains an axes object. The axes object contains 2 objects of type image, images.roi.crosshair.

Set up a listener to get notification when the ROI moves over the image. Because the code displays the value of the pixel under the crosshair, you must pass the image as an argument to the listener.

addlistener(h,MovingROI=@(src,data)displayInfo(src,data,hAx,img));

Begin drawing the ROI interactively. After you place the crosshair, you can then drag the crosshair to a new position. The title of the figure updates with the value of the pixel under the center of the crosshair.

draw(h)

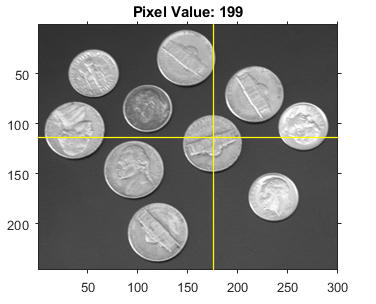

This figure shows a sample appearance of the image with title during interactive movement of the crosshair ROI.

Define the displayInfo function called by the listener when a MovingROI event occurs.

function displayInfo(~,data,hAx,img)
    pos = ceil(data.CurrentPosition);
    title(hAx,"Pixel Value: "+num2str(img(pos(2),pos(1))))
end

More About

expand all

Events

To receive notification from the ROI when certain events happen, set up listeners for these events. You can specify a callback function that executes when one of these events occurs. When the ROI notifies your application through the listener, it returns data specific to the event. Look at the event class for the specific event to see what is returned.

For an example of using event listeners, see Create Crosshair Tool to Check Pixel Values.

Event Name	Trigger	Event Data	Event Attributes
`DeletingROI`	ROI is about to be interactively deleted.	`event.EventData`	`NotifyAccess`: `private` `ListenAccess`: `public`
`DrawingStarted`	ROI is about to be interactively drawn.	`event.EventData`	`NotifyAccess`: `private` `ListenAccess`: `public`
`DrawingFinished`	ROI has been interactively drawn.	`event.EventData`	`NotifyAccess`: `private` `ListenAccess`: `public`
`MovingROI`	ROI shape or location is being interactively changed.	`images.roi.ROIMovingEventData`	`NotifyAccess`: `private` `ListenAccess`: `public`
`ROIMoved`	ROI shape or location has been interactively changed.	`images.roi.ROIMovingEventData`	`NotifyAccess`: `private` `ListenAccess`: `public`
`ROIClicked`	ROI has been clicked.	`images.roi.ROIClickedEventData`	`NotifyAccess`: `private` `ListenAccess`: `public`

Tips

To draw the ROI interactively using the draw or drawcrosshair function, position the cursor over the image and click the mouse to draw the ROI.

The ROI supports the following interactivity, including keyboard shortcuts.

Task	Description
Cancel drawing operation.	Press Esc. The function returns a valid ROI object with an empty `Position` property.
Move the ROI.	Position the cursor over the center of the crosshair ROI (where the two lines cross) and click and drag the crosshair. Another way to move the crosshair ROI is to position the cursor anywhere on one of the two lines and click. The other line in the crosshair jumps to the new crosshair center position.
Delete the ROI.	Position the cursor over the ROI, right-click, and then choose Delete Crosshair from the context menu. You can also delete the ROI programmatically by using the `delete` function.

Version History

Introduced in R2019b

expand all

R2026a: Specify colors using hexadecimal color codes

You can now specify colors, such as the Color, LabelTextColor, SelectedColor, and StripeColor properties, using hexadecimal color codes.

R2020a: `UIContextMenu` property is not recommended

Starting in R2020a, using the UIContextMenu property to assign a context menu to an ROI object is not recommended. Use the ContextMenu property instead. The property values are the same.

There are no plans to remove support for the UIContextMenu property at this time.

Crosshair

Description

Creation

Syntax

Description

Input Arguments

ax — Parent of ROI gca (default) | Axes object | UIAxes object

Properties

Shape and Position

Position — Position of ROI 1-by-2 numeric vector

Color and Styling

Color — ROI color [0 0.4470 0.7410] (default) | RGB triplet | hexadecimal color code | color name | short color name

LineWidth — Width of ROI border positive number

SelectedColor — Color of ROI when selected "none" (default) | RGB triplet | hexadecimal color code | color name | short color name

StripeColor — Color of ROI stripe "none" (default) | RGB triplet | hexadecimal color code | color name | short color name

Visible — ROI visibility "on" (default) | "off" | on/off logical value

Labels

Label — ROI label '' (default) | character vector | string scalar

LabelAlpha — Transparency of text background 1 (default) | number in the range [0, 1]

LabelTextColor — Label text color "black" (default) | RGB triplet | hexadecimal color code | color name | short color name

LabelVisible — Label visibility "on" (default) | "off" | "hover"

Interactivity

ContextMenu — Context menu ContextMenu object

Deletable — Context menu provides option to delete the ROI true or 1 (default) | false or 0

DrawingArea — Area of axes in which you can interactively place ROI "auto" (default) | "unlimited" | [x,y,w,h]

InteractionsAllowed — Interactivity of ROI "all" (default) | "none"

Selected — Selection state of ROI false, 0, or "off" (default) | true, 1, or "on"

Parent/Child

HandleVisibility — Visibility of ROI handle in Children property of parent "on" (default) | "off" | "callback"

Parent — ROI parent Axes object | UIAxes object

Identifiers

Tag — Tag to associate with ROI '' (default) | character vector | string scalar

UserData — Data to associate with ROI any MATLAB data

Object Functions

Examples

Create Crosshair ROI

Create Crosshair Tool to Check Pixel Values

More About

Events

Tips

Version History

R2026a: Specify colors using hexadecimal color codes

R2020a: UIContextMenu property is not recommended

See Also

Topics

`ax` — Parent of ROI
`gca` (default) | `Axes` object | `UIAxes` object

`Position` — Position of ROI
1-by-2 numeric vector

`Color` — ROI color
`[0 0.4470 0.7410]` (default) | RGB triplet | hexadecimal color code | color name | short color name

`LineWidth` — Width of ROI border
positive number

`SelectedColor` — Color of ROI when selected
`"none"` (default) | RGB triplet | hexadecimal color code | color name | short color name

`StripeColor` — Color of ROI stripe
`"none"` (default) | RGB triplet | hexadecimal color code | color name | short color name

`Visible` — ROI visibility
`"on"` (default) | `"off"` | on/off logical value

`Label` — ROI label
`''` (default) | character vector | string scalar

`LabelAlpha` — Transparency of text background
`1` (default) | number in the range [0, 1]

`LabelTextColor` — Label text color
`"black"` (default) | RGB triplet | hexadecimal color code | color name | short color name

`LabelVisible` — Label visibility
`"on"` (default) | `"off"` | `"hover"`

`ContextMenu` — Context menu
`ContextMenu` object

`Deletable` — Context menu provides option to delete the ROI
`true` or `1` (default) | `false` or `0`

`DrawingArea` — Area of axes in which you can interactively place ROI
`"auto"` (default) | `"unlimited"` | `[x,y,w,h]`

`InteractionsAllowed` — Interactivity of ROI
`"all"` (default) | `"none"`

`Selected` — Selection state of ROI
`false`, `0`, or `"off"` (default) | `true`, `1`, or `"on"`

`HandleVisibility` — Visibility of ROI handle in `Children` property of parent
`"on"` (default) | `"off"` | `"callback"`

`Parent` — ROI parent
`Axes` object | `UIAxes` object

`Tag` — Tag to associate with ROI
`''` (default) | character vector | string scalar

`UserData` — Data to associate with ROI
any MATLAB data

R2020a: `UIContextMenu` property is not recommended
