Image Acquisition in Simulink

Bring live video data into Simulink^® models, generate code

The From Video Device block lets you acquire image and video data streams from devices such as cameras and frame grabbers, and bring the image data into a Simulink model. The block also lets you configure and preview the acquisition directly from a Simulink model.

Blocks

From Video Device

Capture live image data from image acquisition device

Topics

Open Image Acquisition Toolbox Block Library
Access the Image Acquisition Toolbox™ block library in two ways.
Code Generation with From Video Device Block
The From Video Device block supports code generation with Simulink Coder™.
Save Video Data to a File
Save acquired video data to a file using the From Video Device block.

Featured Examples

Barcode Recognition Using Live Video Acquisition

Use the From Video Device block to recognize a barcode.

Open Model

Live Image Acquisition and Histogram Display

Use Simulink® blocks to display live video stream and a histogram of its RGB values side by side.

Open Script

Edge Detection on Live Video Stream

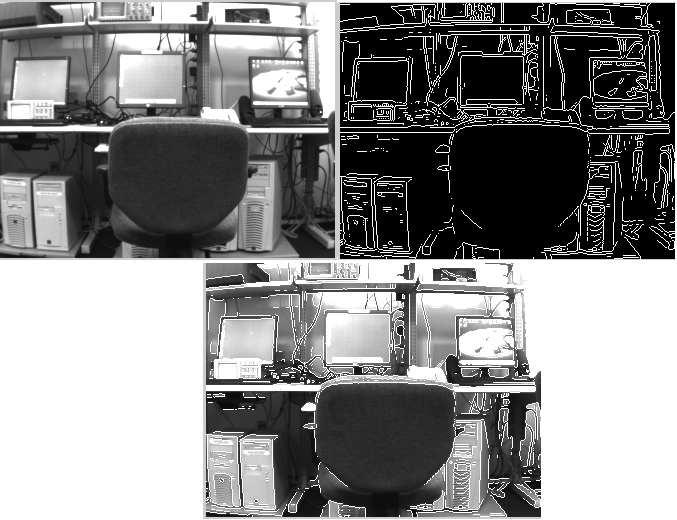

Use the From Video Device block to detect the edges of objects in a live video stream.

Open Script
