ltePSSCHDecode

PSSCH decoding

Syntax

[softbits,symbols]
= ltePSSCHDecode(ue,sym)

Description

[softbits,symbols] = ltePSSCHDecode(ue,sym) returns a vector of log-likelihood ratio (LLR) soft bits and the intermediate QPSK or 16QAM modulation symbols for the specified UE settings structure and modulated PSSCH symbols.

The PSSCH decoder performs the inverse of the ltePSSCH function processing, as defined in TS 36.211 [1], Section 9.3. The ltePSSCHDecode processing includes SC-FDMA transform deprecoding, symbol demodulation, and PSSCH-specific descrambling. For more information, see Physical Sidelink Shared Channel Decoding.

example

Examples

collapse all

Demodulate PSSCH Symbols

Open Live Script

Demodulate PSSCH symbols plus noise for an SL-SCH codeword created by encoding a vector of information bits. Plot the noisy RE symbols, the symbols prior to QPSK demodulation, and the resulting LLR soft bits.

Create a UE settings structure

Specify normal cyclic prefix and 16-QAM modulation.

ue = struct('CyclicPrefixSL','Normal');
ue.RV = 0;
ue.Modulation = '16QAM';
ue.NSAID = 255;
ue.NSubframePSSCH = 0;

Generate symbols to recover

Specify the codeword length to use for the SL-SCH. Choose a length that is a multiple of 12 symbols for normal cyclic prefix and has 4 bits per symbol for 16-QAM modulation. Pick a standard number of resource blocks, such as 10.
Create the SL-SCH codeword.
Create the PSSCH symbols and add noise.

codewordlength = 5760; % (12 symbols)(4 bps)(12 REperRB)(10 PRB)
cw = lteSLSCH(ue,codewordlength,ones(100,1));

sym = ltePSSCH(ue,cw);
rxsym = sym + 0.1*randn(size(sym));

Decode received PSSCH symbols

Recover the soft bits representing the transmitted SL-SCH codeword. Compare the soft bits to the transmitted codeword.

[rxcw,rxmodsym] = ltePSSCHDecode(ue,rxsym);
isequal(cw,rxcw>0)

ans = logical
   0

Using a random noise seed and the level of noise added sometimes results in decoding errors. If the comparison returns '1' there were no decoding errors. If the comparison returns '0' there were decoding errors.

Plot the received and recovered signals.

subplot(2,2,1)
plot(rxsym,'o')
title('PSSCH Encoded Symbols + Noise')

subplot(2,2,2)
plot(rxmodsym,'o')
title('Decoded Symbols')

subplot(2,2,[3,4])
plot(rxcw)
title('Decoded Soft Bits')

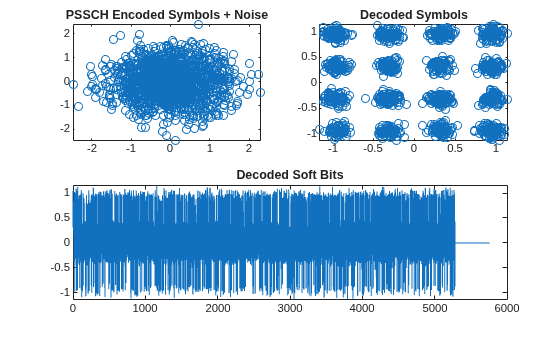

Figure contains 3 axes objects. Axes object 1 with title PSSCH Encoded Symbols + Noise contains a line object which displays its values using only markers. Axes object 2 with title Decoded Symbols contains a line object which displays its values using only markers. Axes object 3 with title Decoded Soft Bits contains an object of type line.

Input Arguments

collapse all

`ue` — User equipment settings
structure

User equipment settings, specified as a parameter structure containing these fields:

`SidelinkMode` — Sidelink mode
`'D2D'` (default) | `'V2X'` | optional

Sidelink mode, specified as 'D2D' or 'V2X'.

Data Types: char | string

`CyclicPrefixSL` — Cyclic prefix length
`'Normal'` (default) | `'Extended'` | optional

Cyclic prefix length, specified as 'Normal' or 'Extended'.

Data Types: char | string

`Modulation` — Modulation type
`'QPSK'` | `'16QAM'`

Modulation type, specified as 'QPSK' or '16QAM'.

Data Types: char | string

`NSAID` — Sidelink group destination identity
integer in the interval [0, 255]

Sidelink group destination identity, specified as an integer in the interval [0, 255].

This field is the lower eight bits of the full 24-bit ProSe Layer-2 group destination ID. This field and the NSubframePSSCH field control the value of the scrambling sequence at the start of each subframe. This field is required only for D2D sidelink.

Data Types: double

`NXID` — V2X scrambling identity
integer scalar

V2X scrambling identity, specified as an integer scalar. NXID is the 16 bit CRC associated with the PSCCH SCI grant. It is only required for V2X sidelink.

Data Types: double

`NSubframePSSCH` — PSSCH subframe number
integer scalar

PSSCH subframe number in the PSSCH subframe pool, specified as an integer scalar ( $n_{ssf}^{PSSCH}$ ).

NSubframePSSCH and NSAID control the values of the scrambling sequence. It is only required for D2D sidelink.

Data Types: double

Data Types: struct

`sym` — Encoded modulated PSSCH symbols
column vector

Encoded modulated PSSCH symbols, specified as an N_RE-by-1 column vector. N_RE is the number of RE in a subframe associated with the PSSCH allocation for normal and extended cyclic prefix (including the SC-FDMA guard symbol) and NPRB resource blocks.

N_RE is N_PRB × 144 for D2D normal cyclic prefix or N_PRB × 120 for D2D extended cyclic prefix and V2X. N_PRB is the number of physical resource blocks (PRB) used for transmission.

The function requires the contents of all PSSCH resource elements to be input, including those in the last guard symbol. For more information, see Physical Sidelink Shared Channel Decoding.

Data Types: double
Complex Number Support: Yes

Output Arguments

collapse all

`softbits` — Log-likelihood ratio soft bits
vector

Log-likelihood ratio (LLR) soft bits, returned as a vector with N_bps × N_RE softbits. N_bps is the number of bits per symbol. PSSCH modulation is either QPSK (2 bits per symbol) or 16 QAM (4 bits per symbol). N_RE is the number of PSSCH resource elements in the subframe. The LLR of the punctured soft bits associated with the last SC-FDMA symbol are set to 0.

For more information, see Physical Sidelink Shared Channel Decoding.

`symbols` — Decoded modulated PSSCH symbols
column vector

Decoded modulated PSSCH symbols, returned as a column vector with N_RE elements. N_RE is the number of PSSCH resource elements in the subframe. For more information, see Physical Sidelink Shared Channel Decoding.

More About

collapse all

Physical Sidelink Shared Channel Decoding

The physical sidelink shared channel (PSSCH) decoder performs the inverse of the ltePSSCH function processing. For more information, see Physical Sidelink Shared Channel Processing. PSSCH decoding includes SC-FDMA transform deprecoding, symbol demodulation, and PSSCH-specific descrambling.

Physical Sidelink Shared Channel Processing

Physical sidelink shared channel (PSSCH) processing includes PSSCH-specific scrambling, QPSK or 16-QAM modulation, and SC-FDMA transform precoding. PSSCH processing follows the processing steps used for PUSCH, with variations defined in TS 36.211, Section 9.3.

For PSSCH, the input codeword length is M_bits = N_RE × N_bps, where N_bps is the number of bits per symbol. PSSCH modulation is either QPSK (2 bits per symbol) or 16 QAM (4 bits per symbol).

The number of PSSCH resource elements (N_RE) in a subframe is N_RE = N_PRB × N_REperPRB × N_SYM and includes symbols associated with the sidelink SC-FDMA guard symbol.

N_PRB is the number of physical resource blocks (PRB) used for transmission.
N_REperPRB is the number of resource elements in a PRB. Each PRB has 12 resource elements.
N_SYM is the number of SC-FDMA symbols in a PSSCH subframe, including symbols associated with the sidelink SC-FDMA guard symbol. The number of SC-FDMA symbols in a PSSCH subframe is 12 for D2D normal cyclic prefix or 10 for D2D extended cyclic prefix and V2X.

The info structure output by ltePSSCHIndices provides M_bits and N_RE as info.G and info.Gd respectively.

The scrambling sequence generator is initialized with $c_{init} = n_{ID}^{X} \times 2^{14} + n_{ssf}^{PSSCH} \times 2^{9} + 510$ at the start of every PSSCH subframe. For D2D sidelink, $n_{ID}^{SA}$ is the destination identity (NSAID) obtained from the sidelink shared channel. For V2X, $n_{ID}^{SA}$ is the V2X scrambling identity (NXID). $n_{ssf}^{PSSCH}$ is the subframe number in the PSSCH subframe pool (NSubframePSSCH).

ltePSSCH requires CyclicPrefixSL to deduce the number of resource blocks allocated for SC-FDMA precoding symbols.

References

[1] 3GPP TS 36.211. “Evolved Universal Terrestrial Radio Access (E-UTRA); Physical Channels and Modulation.” 3rd Generation Partnership Project; Technical Specification Group Radio Access Network. URL: https://www.3gpp.org.
