Sidelink Channels

Sidelink physical signals, physical channels, transport channels, control information, and SC-FDMA modulation

Use LTE Toolbox™ mid-level sidelink channel processing functions to:

Create physical signals and physical channels for transmission and reception.
Create, encode, and decode transport channels.
Create, manipulate, encode, and decode control information messages.
Perform SC-FDMA modulation and demodulation.

These sidelink functions include support for Release 12 device-to-device (D2D) and Release 14 vehicle-to-everything (V2X) modes.

Featured Examples

LTE Sidelink Resource Pools and PSCCH Period

How sidelink direct communication resource pools and PSCCH periods are defined and parameterized. It shows the relationship between the semi-static RRC pool parameters and the PSCCH period structure. It also shows how the dynamic scheduling parameters (DCI and SCI) for transmission mode 1 and mode 2 affect the final transmission resource selection.

Open Script

Release 12 Sidelink PSCCH and PSSCH Throughput

Perform a Block Error Ratio (BLER) simulation of the 3GPP Release 12 sidelink control and shared channels in frequency-selective fading and Additive White Gaussian Noise (AWGN) using LTE Toolbox™.

Open Script

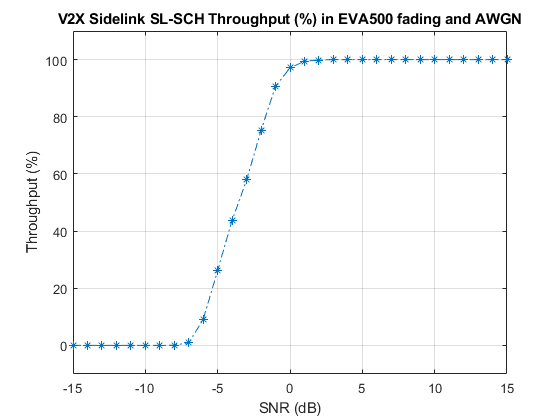

Release 14 V2X Sidelink PSCCH and PSSCH Throughput

Demonstrates how to measure the physical sidelink shared channel (PSSCH) and physical sidelink control channel (PSCCH) throughput performance in frequency-selective fading and additive white Gaussian noise (AWGN).

Open Script
