Signal Reception and Recovery

Frame synchronization, channel estimation, ZF and MMSE equalization, cell identity search, MIB decoding, SIB1 recovery, HARQ combining

Use LTE Toolbox™ low-level functions to process and recover received downlink and uplink signals.

Receiver Functional Flow Diagrams

Featured Examples

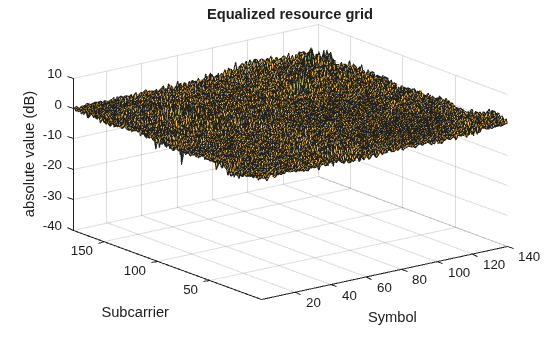

LTE Downlink Channel Estimation and Equalization

Use the LTE Toolbox™ to create a frame worth of data, pass it through a fading channel and perform channel estimation and equalization. Two figures are created illustrating the received and equalized frame.

Open Live Script

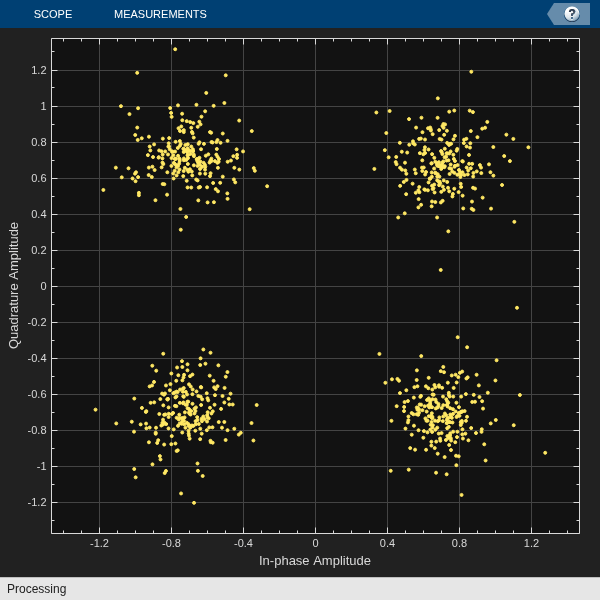

Cell Search, MIB and SIB1 Recovery

Fully synchronize, demodulate and decode a live eNodeB signal by using LTE Toolbox™ software. Before the user equipment (UE) can communicate with the network, it must perform cell search and selection procedures, and then obtain initial system information. This process involves acquiring slot and frame synchronization, determining the cell identity and decoding the MIB and system information blocks (SIBs). This example demonstrates this process and decodes the MIB and SIB1, the first of the system information blocks. Decoding the MIB and SIB1 requires a comprehensive that is capable of demodulating and decoding the majority of the downlink channels and signals.

Open Script

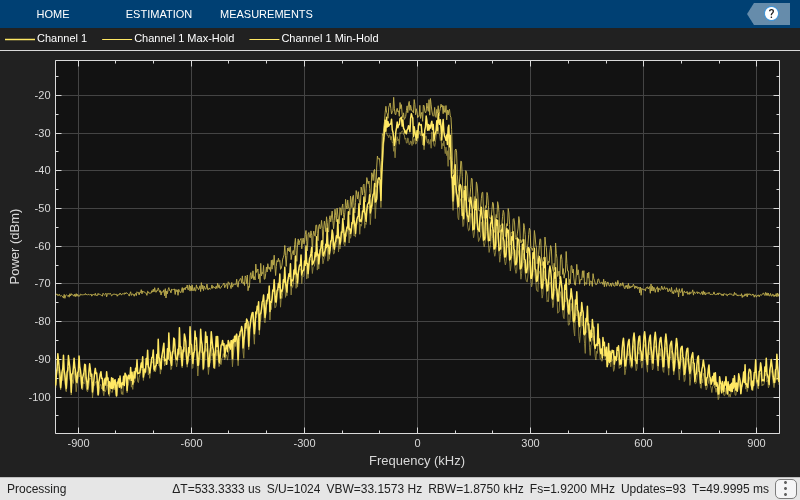

NB-IoT Cell Search and MIB Recovery

How the LTE Toolbox™ can be used to fully synchronize, demodulate and decode a live narrowband internet of things (NB-IoT) downlink signal. Before the user equipment (UE) can communicate with the network, it must perform cell search and selection procedures and obtain initial system information. This involves acquiring slot and frame synchronization, finding out the cell identity and decoding the MIB. This example demonstrates this process and decodes the MIB. To decode MIB a comprehensive receiver is required, capable of demodulating and decoding the downlink channels and signals.

Open Script

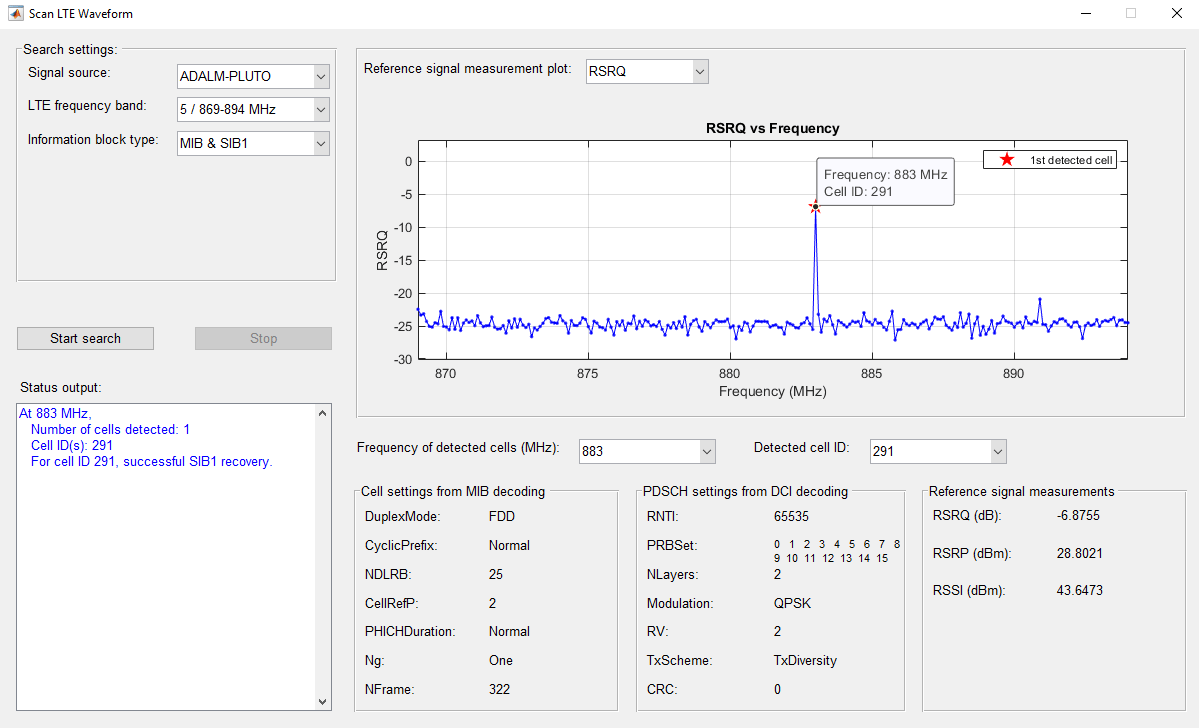

Scan and Decode LTE Waveform

Capture and decode an LTE signal obtained either from a file or from radio by using LTE Toolbox™ software and various hardware support packages (HSPs). Before the user equipment (UE) can communicate with the network, it must perform cell search and selection procedures, and then obtain initial system information. This process involves acquiring slot and frame synchronization, determining the cell identity, and decoding the MIB and system information blocks (SIBs). This example launches a graphical user interface (GUI), which enables you to:

Open Live Script

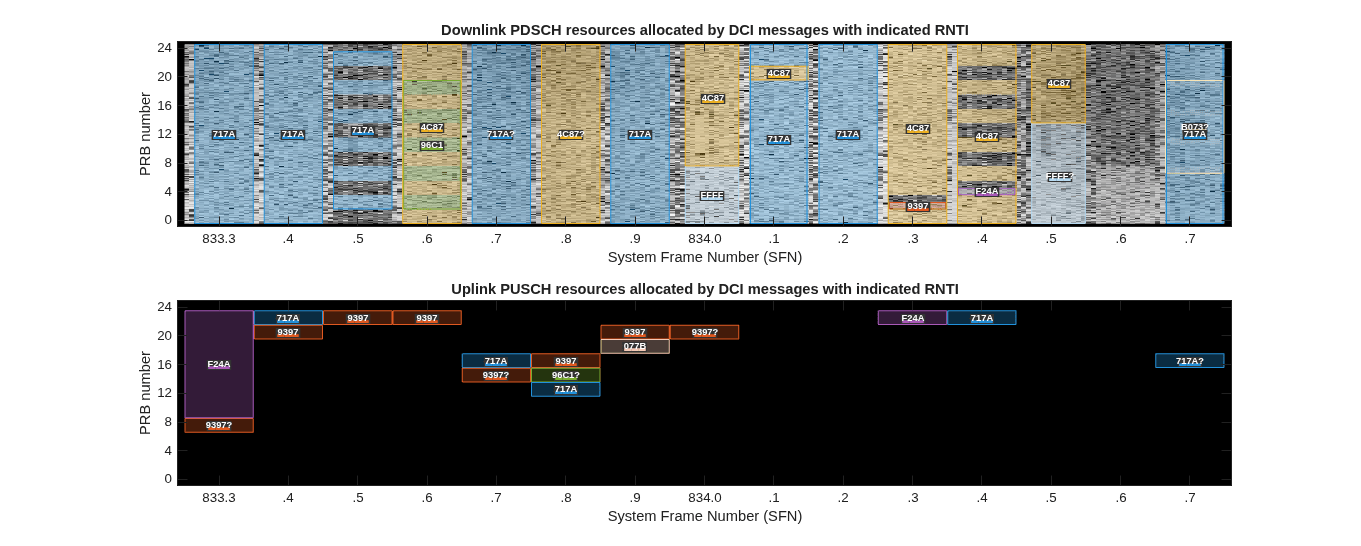

UE Detection Using Downlink Signals

How LTE Toolbox™ can be used to detect the presence of UEs associated with an eNodeB. This is achieved by searching a downlink signal for DCI messages and establishing the set of unique identifiers (C-RNTIs) in use.

Open Script
