Software-Defined Radio and HDL

Support for third-party hardware

The examples featured here show you how to connect SDR hardware with the LTE Toolbox™. For more information about supported SDR platforms, see Supported Hardware – Software-Defined Radio.

LTE Toolbox provides mathematical models of the algorithms defined by the LTE standard. You can also use MathWorks^® HDL products, including Wireless HDL Toolbox™, to implement these algorithms for FPGA and ASIC hardware. You can use the LTE Toolbox mathematical algorithms as a reference to verify the behavior of the hardware implementation.

Topics

Wireless Communications Design for ASICs, FPGAs, and SoCs
Design wireless communication algorithms for hardware by using Wireless HDL Toolbox blocks.

Featured Examples

LTE Transmitter Using Software Defined Radio

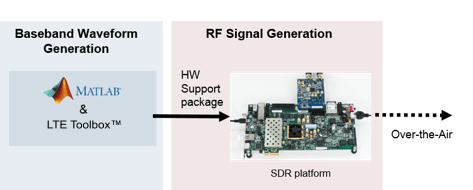

Generate a reference measurement channel (RMC) downlink (DL) LTE waveform suitable for over-the-air transmission. This example also shows how to use a software-defined radio (SDR) to transmit the generated waveform using single or multiple antennas.

Open Live Script

LTE Receiver Using Software-Defined Radio

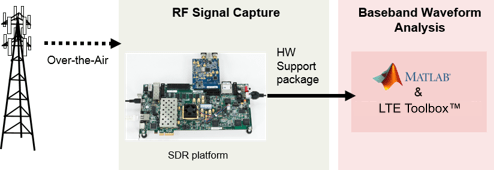

Recover the master information block (MIB) and basic system information from an over-the-air LTE downlink (DL) waveform. This example also shows how to receive an LTE waveform using a software-defined radio (SDR) with single or multiple antennas.

Open Live Script

Real Time LTE MIB Recovery Using Analog Devices AD9361/AD9364

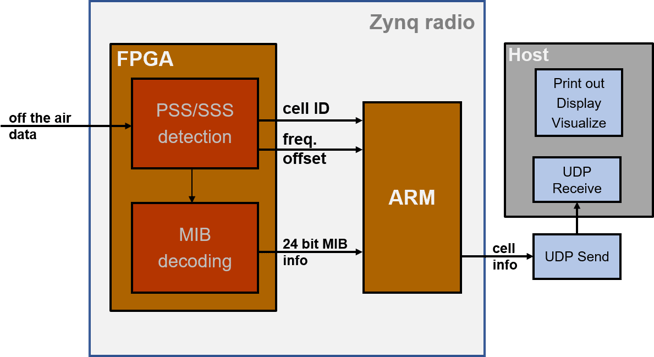

Implement an LTE MIB recovery system on the Xilinx® Zynq® radio platform partitioned across the ARM® and the programmable logic fabric.

Open Live Script

Image Transmission and Reception Using LTE Waveform and SDR

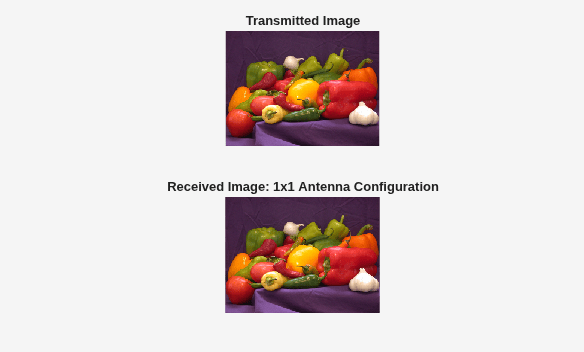

Transmit and receive an image using an LTE waveform and a software-defined radio (SDR). The example generates a single or multi-antenna LTE waveform for simultaneous transmission and reception on a single SDR platform. During waveform generation, the example encodes and packs an image into a radio frame. Then, on reception, the example decodes the image from the received LTE waveform.
