maptrimp

Trim polygons to latitude-longitude quadrangle

collapse all in page

Syntax

[latTrimmed,lonTrimmed] = maptrimp(lat,lon,latlim,lonlim)

Description

[latTrimmed,lonTrimmed] = maptrimp(lat,lon,latlim,lonlim) trims the polygons in lat and lon to the quadrangle specified by latlim and lonlim. latlim and lonlim are two-element vectors, defining the latitude and longitude limits respectively. lat and lon must be vectors that represent valid polygons.

Examples

collapse all

Open Live Script

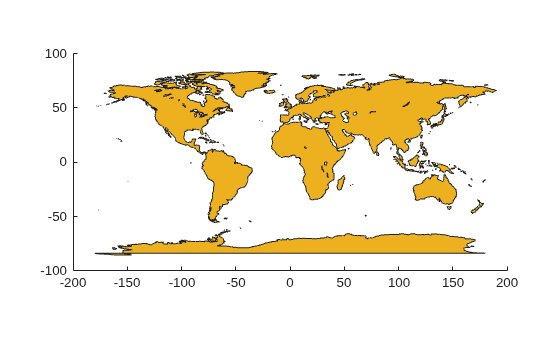

Read coastline data and display it on a map.

load coastlines
figure
mapshow(coastlon,coastlat,'DisplayType','polygon');

Figure contains an axes object. The axes object contains an object of type patch.

Trim the dataset.

latlim = [-50 50];
lonlim = [-100 50];
[latTrimmed,lonTrimmed] = maptrimp(coastlat,coastlon, ...
   latlim, lonlim);

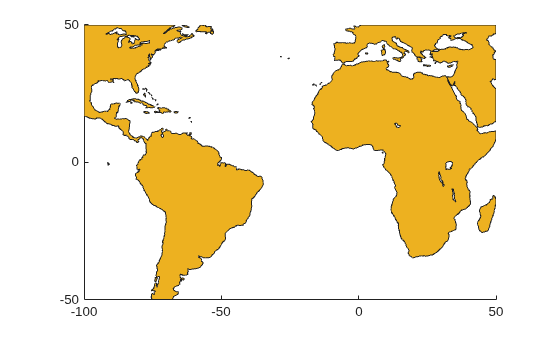

Display the trimmed dataset.

figure
mapshow(lonTrimmed,latTrimmed, 'DisplayType', 'polygon');

Figure contains an axes object. The axes object contains an object of type patch.

Tips

maptrimp conditions the longitude limits such that:

  • lonlim(2) always exceeds lonlim(1)

  • lonlim(2) never exceeds lonlim(1) by more than 360

  • lonlim(1) < 180 or lonlim(2) > -180

  • Ensure that if the quadrangle span the Greenwich meridian, then that meridian appears at longitude 0.

Version History

Introduced before R2006a
