tightmap

Remove white space around axesm-based map

collapse all in page

Syntax

tightmap

Description

tightmap sets the axis limits to be tight around the map in the current axes. This eliminates or reduces the white border between the map frame and the axes box. Use axis auto to undo tightmap.

Examples

collapse all

Open Live Script

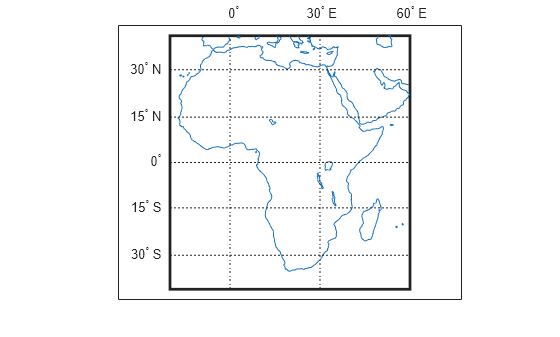

Display a map of Africa. Notice the white space between the map frame and the edge of the axes box.

axesm('miller','maplatlim',[-40 40],'maplonlim',[-20 60])
framem;
gridm;
mlabel;
plabel
load coastlines
plotm(coastlat,coastlon)

Figure contains an axes object. The axes object contains 12 objects of type patch, line, text.

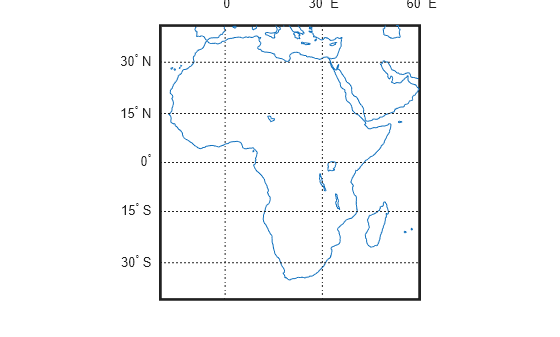

Now remove white space around the map.

tightmap

Figure contains an axes object. The axes object contains 12 objects of type patch, line, text.

Tips

The axis limits are fixed. If a change in the projection parameters changes the size or position of the map display within the projected coordinate system, execute tightmap again. Also note that tightmap needs to be re-applied following any call to setm that causes projected map objects to be re-projected.

The tightmap function performs no action on a 'globe' axesm-based map.

Version History

Introduced before R2006a
