Curve Reconstruction from Point Cloud

Open Live Script

Reconstruct a polygonal boundary from a cloud of points by using a Delaunay triangulation. The reconstruction is based on the elegant Crust algorithm.

Create a set of points representing the point cloud.

numpts = 192;
t = linspace(-pi,pi,numpts + 1)';
t(end) = [];
r = 0.1 + 5*sqrt(cos(6*t).^2 + 0.7.^2);
x = r.*cos(t);
y = r.*sin(t);
ri = randperm(numpts);
x = x(ri);
y = y(ri);

Construct a Delaunay Triangulation of the point set.

dt = delaunayTriangulation(x,y);
tri = dt(:,:);

Insert the location of the Voronoi vertices into the existing triangulation.

V = voronoiDiagram(dt);

Remove the infinite vertex and filter out duplicate points using unique.

V(1,:) = [];
numv = size(V,1);
dt.Points(end+(1:numv),:) = unique(V,"rows");

The Delaunay edges that connect pairs of sample points represent the boundary.

delEdges = edges(dt);
validx = delEdges(:,1) <= numpts;
validy = delEdges(:,2) <= numpts;
boundaryEdges = delEdges((validx & validy),:)';
xb = x(boundaryEdges);
yb = y(boundaryEdges);
clf
triplot(tri,x,y)
axis equal
hold on
plot(x,y,"*r")
plot(xb,yb,"r")
xlabel("Curve reconstruction from point cloud",FontWeight="b")
hold off

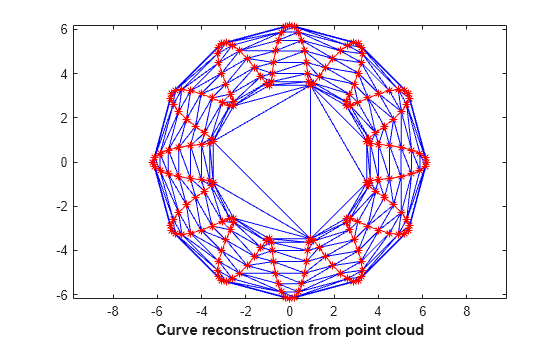

Figure contains an axes object. The axes object with xlabel Curve reconstruction from point cloud contains 194 objects of type line.

References

N. Amenta, M. Bern, and D. Eppstein. The crust and the beta-skeleton: combinatorial curve reconstruction. Graphical Models and Image Processing, 60:125-135, 1998.
