Check Function Compatibility Using Metadata

You can use function metadata to verify that the output type of one function strictly matches the input type of a second function. In other words, for the function composition f(g(x)), you can check that the output class validation of g matches the input class validation of function f. If the class validations of the two functions are not compatible, then chaining them together might cause errors or other unintended side effects.

The first example in this topic uses a function to check class validation for one pair of arguments. The second example uses a class-based approach to enable more customization of the compatibility checks, including class and size validation for multiple argument pairs.

Check Class Validation for One Pair of Arguments

Define a function checkFuncChainCompatibility that takes the names of two functions, f and g, and assumes that g has one output value, and f has one input value. checkFuncChainCompatibility returns true only if the class validation of the output of g exactly matches the class validation of the input of f. If one type can be converted to the other—for example, g outputs double and f accepts int64—checkFuncChainCompatibility returns false.

function tf = checkFuncChainCompatibility(f,g)
% Verify that the data types for composition of
% functions f(g(x)) is valid.
    arguments (Input)
        f (1,1) string
        g (1,1) string
    end

    tf = false;

    gMeta = metafunction(g);
    fMeta = metafunction(f);

    if isempty(gMeta.Signature.Outputs.Validation) ||...
            isempty(fMeta.Signature.Inputs.Validation)
        return;
    end

    gOutputType = gMeta.Signature.Outputs.Validation.Class;
    fInputType = fMeta.Signature.Inputs.Validation.Class;

    if gOutputType == fInputType
        tf = true;
    end

end

Given the names of the two functions, checkFuncChainCompatibility calls metafunction to create matlab.metadata.Function instances for both functions, gMeta and fMeta. Before proceeding, checkFuncChainCompatibility verifies that function g uses output validation and function f uses input validation. checkFuncChainCompatibility retrieves the class validations of the output of g and the input of f.

To retrieve the class validations for the two functions, checkFuncChainCompatibility indexes through the properties of the function metadata classes:

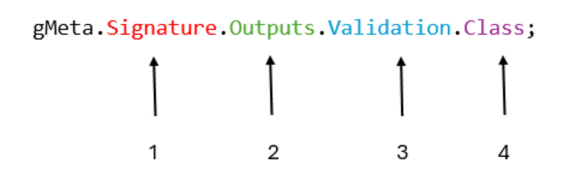

Indexing expression gMeta.Signature.Outputs.Validation.Class, with properties numbered to correspond to the following numbered list

  1. The Signature property of gMeta and fMeta are of type matlab.metadata.CallSignature.

  2. The Inputs and Outputs properties of CallSignature are of type matlab.metadata.Argument.

  3. The Validation property of Argument is of type matlab.metadata.ArgumentValidation.

  4. The Class property of ArgumentValidation is a metaclass instance.

As the final step, the function checks if the class validation of the function f input matches the class validation of the function g output.

Apply the Test Function

Use checkFuncChainCompatibility to check if two functions in an image processing workflow can be run in sequence. The first function, cleanData, is a general purpose function that replaces missing data and outliers in a data set.

function revisedData = cleanData(data)
% This function fills missing data points and replaces outliers.

    arguments (Input)
        data double
    end

    arguments (Output)
        revisedData double
    end

    dataNoNaNs = fillmissing(data,"linear");
    revisedData = filloutliers(dataNoNaNs,"linear","median");
end

The second function takes raw image data, which is typically uint8, and normalizes it to double values in the interval [0, 1].

function processedData = preprocessImageData(rawData)
% This function preprocesses raw image data by
% normalizing and converting to double.

    arguments (Input)
        rawData uint8
    end

    arguments (Output)
        processedData double
    end

    processedData = double(rawData)/255;
end

Use checkFuncChainCompatibility to test if the output type of cleanData matches the input type required for preprocessImageData. The functions fail the compatibility test because cleanData outputs double, but preprocessImageData expects uint8.

tf = checkFuncChainCompatibility("preprocessImageData","cleanData")


tf =

  logical

   0

This kind of testing can be particularly useful in cases where the functions could be chained without explicit error. For example, cleanData introduces noninteger values into the array a.

a = [1 2 NaN 5 47 6 -3];
a1 = cleanData(a)
a1 =

    1.0000    2.0000    3.5000    5.0000    5.5000    6.0000   -3.0000

In this case, preprocessImageData can implicitly convert the double output to uint8 without error. When converting double to uint8, MATLAB® rounds the noninteger values and replaces negative values with 0.

a2 = uint8(a1)
a2 =

  1×7 uint8 row vector

   1   2   4   5   6   6   0

These implicit conversions might not be desirable for the processing workflow. checkFuncChainCompatibility provides a check for this by noting the mismatch of classes between the two functions.

Check Class and Size Validation for Multiple Arguments

The checkFuncChainCompatibility function checked class validation for one output of the first function with one input of the second function. You can expand those checks to include both class and size validations for multiple sets of arguments. Define a set of classes to perform these checks and determine how strict you want the checks to be.

The FunctionChainingChecker class is the starting point. You construct an object of this class and define its SigChecker property with the desired level of strictness for your test. The SigChecker property is of type SignatureChecker, an abstract class that has two subclasses for the purpose of this example, StrictSignatureChecker and PermissiveSignatureChecker.

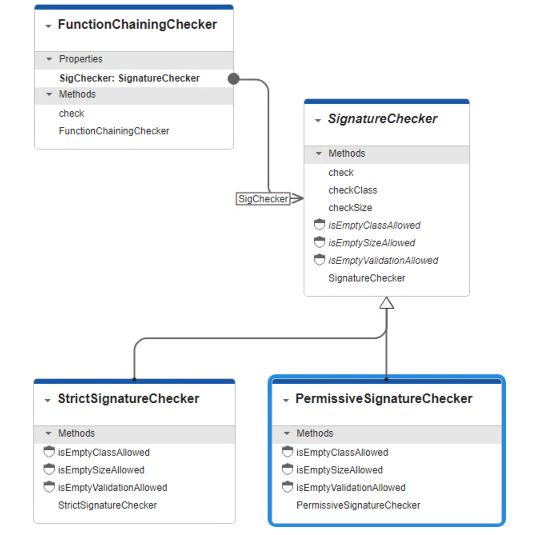

Relationships between the FunctionChainingChecker, SignatureChecker, StrictSignatureChecker, and PermissiveSignatureChecker classes

FunctionChainingChecker Class

The FunctionChainingChecker class defines a check method that takes in two function names as input and uses its SigChecker property to determine how strict the compatibility must be. The check method of FunctionChainingChecker calls metafunction and accesses the Inputs and Outputs properties in the function metadata interface. The method checks that the number of input and output arguments of the functions match, and then it calls the check method of the SigChecker class.

classdef FunctionChainingChecker
    properties
        SigChecker (1,1) SignatureChecker = StrictSignatureChecker
    end
    methods
        function obj = FunctionChainingChecker(checker)
            if nargin > 0
                obj.SigChecker = checker;
            end
        end
        function tf = check(obj,f,g)
            arguments (Input)
                obj
                f (1,1) string
                g (1,1) string
            end
            inputs = metafunction(f).Signature.Inputs;
            outputs = metafunction(g).Signature.Outputs;
            tf = numel(inputs) == numel(outputs) &&...
                obj.SigChecker.check(inputs,outputs);
        end
    end
end

SignatureChecker Class

SignatureChecker is an abstract class that defines three abstract methods that determine how strict the compatibility check is. The concrete check method of this class returns false if the validations of the two functions are mismatched, depending on the strictness specified by the implementation of the abstract methods. For example, if function g uses class validation on any of its output arguments but the corresponding input argument of function f does not use class validation, the test fails. However, the three abstract methods determine whether both functions can omit class validation and still pass:

  • isEmptyValidationAllowed — Returns true if the functions can be considered compatible even if both functions use no validation at all on a pair of corresponding arguments

  • isEmptyClassAllowed — Returns true if the functions can be considered compatible even if both functions use no class validation on a pair of corresponding arguments

  • isEmptySizeAllowed — Returns true if the functions can be considered compatible even if both functions use no size validation on a pair of corresponding arguments

For example implementations of these methods in subclasses of SignatureChecker, see StrictSignatureChecker and PermissiveSignatureChecker Classes.

classdef (Abstract) SignatureChecker
    methods (Abstract,Access=protected)
        tf = isEmptyValidationAllowed(~)
        tf = isEmptyClassAllowed(~)
        tf = isEmptySizeAllowed(~)
    end

    methods
        function tf = check(checker,fArgs,gArgs)
            tf = false;
            for i = 1:numel(fArgs)
                fValidation = fArgs(i).Validation;
                gValidation = gArgs(i).Validation;

                if isempty(fValidation) ~= isempty(gValidation)
                    return;
                end

                if isempty(fValidation) && isempty(gValidation)
                    if checker.isEmptyValidationAllowed
                        continue;
                    else
                        return;
                    end
                end

                if ~checker.checkClass(fValidation.Class, gValidation.Class) || ...
                        ~checker.checkSize(fValidation.Size, gValidation.Size)
                    return;
                end
            end
            tf = true;
        end
    end

    methods (Access=private)
        function tf = checkClass(checker,fClass,gClass)
            tf = false;

            if isempty(fClass) ~= isempty(gClass)
                return;
            end

            if isempty(fClass) && isempty(gClass)
                if ~checker.isEmptyClassAllowed
                    return;
                end
            end

            tf = isequal(fClass,gClass);
        end
        function tf = checkSize(checker, fSize, gSize)
            tf = false;

            if numel(fSize) ~= numel(gSize)
                return;
            end

            if isempty(fSize) && isempty(gSize)
                if ~checker.isEmptySizeAllowed
                    return;
                end
            end

            for j = 1:numel(fSize)
                if metaclass(fSize(j)) ~= metaclass(gSize(j))
                    return;
                end
                if isa(fSize(j),"matlab.metadata.FixedDimension") && ...
                        fSize(j).Length ~= gSize(j).Length
                    return;
                end
            end
            tf = true;
        end
    end
end

The concrete methods of SignatureChecker compare the validations of the arguments on the input functions.

  • check — This method loops through the arguments and retrieves the validation metadata. If one argument uses validation and the other does not, the compatibility test fails. If there is no validation, the method relies on a call to isEmptyValidationAllowed to determine whether the functions can be compatible. After those tests, the method calls checkClass and checkSize to compare the actual classes.

  • checkClass — This method checks one pair of arguments. If one argument uses class validation and the other does not, the compatibility test fails. If there is no class validation for either argument, the method relies on a call to isEmptyClassAllowed to determine whether the functions can be compatible. If the arguments pass these tests, the method compares the actual classes used.

  • checkSize — This method checks one pair of arguments. If one argument uses size validation and the other does not, the compatibility test fails. If there is no size validation for either argument, the method relies on a call to isEmptySizeAllowed to determine whether the functions can be compatible. If the arguments pass these tests, the method then loops through the individual dimensions to compare the actual values, which can be of type matlab.metadata.FixedDimension or matlab.metadata.UnrestrictedDimension.

StrictSignatureChecker and PermissiveSignatureChecker Classes

The concrete methods of SignatureChecker handle most of the comparisons between arguments, but the implementations of the abstract methods in subclasses of SignatureChecker enable you to customize how some comparisons are handled. For example, StrictSignatureChecker returns false for all three methods.

classdef StrictSignatureChecker < SignatureChecker
    methods(Access=protected)
        function tf = isEmptyValidationAllowed(~)
            tf = false;
        end
        function tf = isEmptyClassAllowed(~)
            tf = false;
        end
        function tf = isEmptySizeAllowed(~)
            tf = false;
        end
    end
end

These output values mean that if a pair of arguments from two functions define no validation at all, no class validation, or no size validation, the functions are not considered compatible. For example, the multiplyBy2 and subtract1 functions use class validation for input and output arguments, but they do not use size validation.

function [twice1,twice2] = multiplyBy2(input1,input2)

    arguments (Input)
        input1 double
        input2 double
    end

    arguments (Output)
        twice1 double
        twice2 double
    end

    twice1 = 2*input1;
    twice2 = 2*input2;
end
function [oneMinus1,twoMinus1] = subtract1(input1,input2)

    arguments (Input)
        input1 double
        input2 double
    end

    arguments (Output)
        oneMinus1 double
        twoMinus1 double
    end

    oneMinus1 = input1 - 1;
    twoMinus1 = input2 - 1;
end

Create an instance of FunctionChainingChecker with its SigChecker property set to a StrictSignatureChecker instance.

strict = FunctionChainingChecker(StrictSignatureChecker)

strict =

  FunctionChainingChecker with properties:

    SigChecker: [1×1 StrictSignatureChecker]
Check the compatibility of the composition of multiplyBy2 and subtract1. The two functions fail the compatibility check because neither of the corresponding pairs of output and input arguments use size validation.

strict.check("multiplyBy2","subtract1")
ans =

  logical

   0

However, because both of these functions can accept input and output arrays of any size, a checker that allows the functions to skip size validation might be more appropriate. Create a subclass of SignatureChecker that allows functions with pairs of corresponding arguments that both skip size validation to be compatible.

classdef PermissiveSignatureChecker < SignatureChecker
    methods (Access=protected)
        function tf = isEmptyValidationAllowed(~)
            tf = false;
        end
        function tf = isEmptyClassAllowed(~)
            tf = false;
        end
        function tf = isEmptySizeAllowed(~)
            tf = true;
        end
    end
end

Using a PermissiveSignatureChecker instance as the SigChecker property allows the two functions to pass, because although the corresponding input and output argument pairs do not use size validation, they do use class validation, and the classes match.

permit = FunctionChainingChecker(PermissiveSignatureChecker);
permit.check("multiplyBy2","subtract1")
ans =

  logical

   1

SignatureChecker subclasses can implement these methods in any way that fits the requirements of your compatibility checks.
