colorcube

Colorcube colormap array

collapse all in page
  • Colorcube colormap

Syntax

c = colorcube
c = colorcube(m)

Description

c = colorcube returns the colorcube colormap as a three-column array with the same number of rows as the colormap for the current figure (gcf). If no figure exists, then the number of rows is equal to the default length of 256. Each row in the array contains the red, green, and blue intensities for a specific color. The intensities are in the range [0,1], and the color scheme looks like this image.

Sample of the colorcube colormap

example

c = colorcube(m) returns the colormap with m colors.

example

Examples

collapse all

Open Live Script

After getting the colormap array, you can isolate a section of it to use as the color scheme.

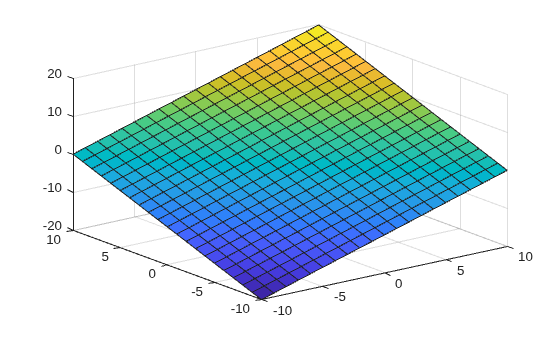

Create a surface plot of a plane.

[X,Y] = meshgrid(-10:1:10);
Z = X + Y;
surf(X,Y,Z);

Figure contains an axes object. The axes object contains an object of type surface.

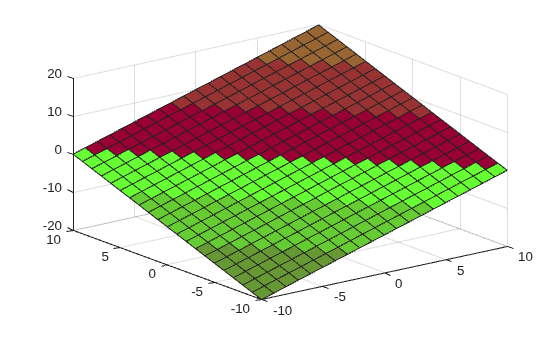

Get the colorcube colormap array, and isolate the red section (entries 39 to 44). Then use this section to color the whole surface.

c = colorcube;
c = c(39:44,:);
colormap(c);

Figure contains an axes object. The axes object contains an object of type surface.

Open Live Script

Create a surface plot of a plane.

[X,Y] = meshgrid(-10:1:10);
Z = X + Y;
surf(X,Y,Z);

Figure contains an axes object. The axes object contains an object of type surface.

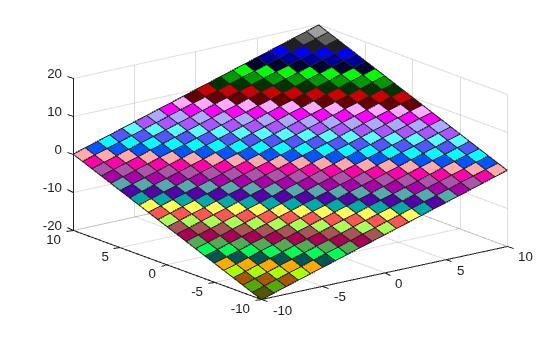

Get the colorcube colormap with 75 entries. Then use it to color the plane.

c = colorcube(75);
colormap(c);

Figure contains an axes object. The axes object contains an object of type surface.

Input Arguments

collapse all

Number of colors, specified as a nonnegative integer. The default value of m is the number of colors in the current figure's colormap. If no figure exists, the default value is 256.

Data Types: single | double

Version History

Introduced before R2006a
