open
说明
示例
在指定位置打开上下文菜单
创建一个 UI 图窗。创建一个包含两个子菜单的上下文菜单,并将其分配给该 UI 图窗。
fig = uifigure; cm = uicontextmenu(fig); m1 = uimenu(cm,'Text','Import Data'); m2 = uimenu(cm,'Text','Export Data'); fig.ContextMenu = cm;

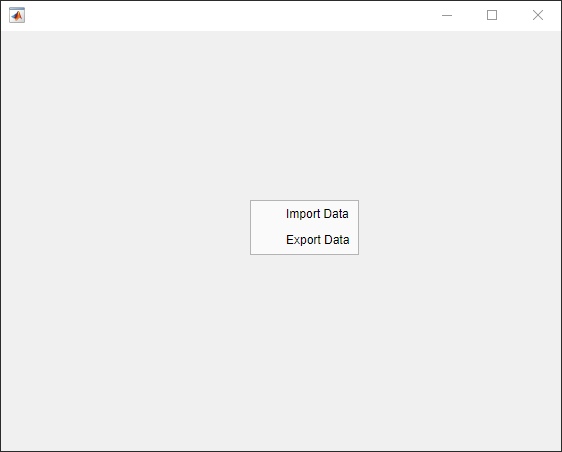

然后,在位置 (250,250)
上打开上下文菜单。
open(cm,250,250)
打开未分配的上下文菜单
当您右键点击作为父容器的 UI 图窗的空白区域或支持 ButtonDownFcn
属性的图形对象时,将打开一个未分配的上下文菜单。
首先,创建一个名为 openCtxtMenu.m
的程序文件。在该程序文件中:
在一个 UI 图窗中创建 UI 坐标区并在坐标区中绘制数据。
在 UI 图窗中创建具有一个子菜单的上下文菜单。
将
WindowButtonDownFcn
属性设置为名为onButtonDown
的回调函数。创建一个名为
onButtonDown
的回调函数。在其中,通过查询 UI 图窗的SelectionType
属性来确定选择是否为右键点击。在右键点击时,从CurrentPoint
属性获取鼠标指针的 x 和 y 坐标。x 和 y 坐标是它返回的向量的第一个和第二个元素。然后,在这些坐标处打开上下文菜单。当出现其他选择类型时,在命令行窗口中显示一条消息。
function openCtxtMenu fig = uifigure; ax = uiaxes(fig); plot(ax,magic(5)); cm = uicontextmenu(fig); m = uimenu(cm,'Text','Menu1'); fig.WindowButtonDownFcn = @onButtonDown; function onButtonDown(src,event) clickType = src.SelectionType; switch clickType case 'alt' x = src.CurrentPoint(1); y = src.CurrentPoint(2); open(cm,x,y) otherwise disp('Right-click to view context menu') end end end
运行程序文件,然后右键点击 UI 坐标区或 UI 图窗中的空白区域可打开上下文菜单。
openContextMenu
输入参数
cm
— 上下文菜单对象
ContextMenu
对象
使用 uicontextmenu
函数创建的上下文菜单对象。
x
— x 坐标
整数
x 坐标,即距 UI 图窗左边缘的距离,指定为一个整数(以像素为单位)。如果指定的值超过图窗的宽度,则上下文菜单将不可见。
y
— y 坐标
整数
y 坐标,即距图窗下边缘的距离,指定为一个整数(以像素为单位)。如果指定的值超过图窗的高度,则上下文菜单将不可见。
coord
— 像素坐标
由整数组成的行向量
像素坐标,指定为由整数值组成的二元素行向量。
示例: [100 150]
指定像素坐标 (100,150)
。
提示
通过按键或在上下文菜单外点击鼠标来关闭上下文菜单。您无法以编程方式关闭上下文菜单。
算法
当您调用 open
函数时,ContextMenuOpeningFcn
回调函数不执行。回调函数仅由用户交互触发。
版本历史记录
在 R2020a 中推出
