Characterize Battery Equivalent Circuit Block (Code)

This example uses:

Open Live Script

Using the characterizeBattery method, characterize the Battery Equivalent Circuit (Simscape Battery) block and evaluate a feature using a data set.

Create mbcrunner Object

Create a handle to a CAGE project.

r = mbcrunner;

Open Simulink Model

Open the Simulink model containing the Battery Equivalent Circuit block.

open("Simscape_BEC.slx");

Set the batteryBlock variable to the battery block path.

batteryBlock = "Simscape_BEC/Battery Equivalent Circuit";

Characterize Battery Cell

Characterize the battery using the data files located in the folder HPPC_data/origPreprocessedData. Set the number of iterations for the battery characterization process to 25.

[tbls,sfit] = characterizeBattery( ...
    r,batteryBlock,fullfile(pwd,'HPPC_data','origPreprocessedData'), ...
    NumIterations=25,ShowProgress=false);

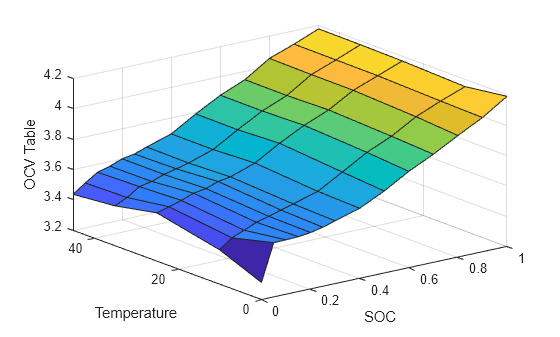

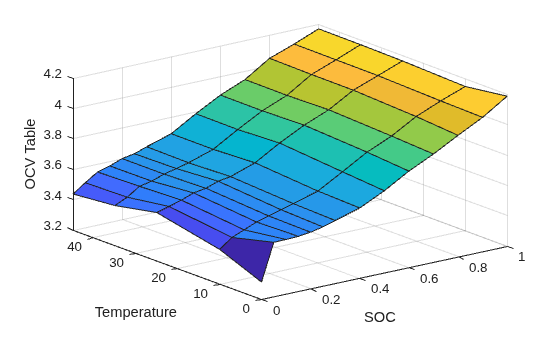

Preview the open circuit voltage table.

surf(SOC_vec,Temperature_vec,tbls.OCV');
xlabel('SOC');ylabel('Temperature');zlabel('OCV Table');

Figure contains an axes object. The axes object with xlabel SOC, ylabel Temperature contains an object of type surface.

Evaluate Feature

Evaluate the Voltage3 feature using the hppcDataBAKcell0degC.mat data file.

[results,s] = evaluateFeature(r,"Voltage3", ...
    fullfile( ...
    pwd,'HPPC_data', 'origPreprocessedData','hppcDataBAKcell0degC.mat'));

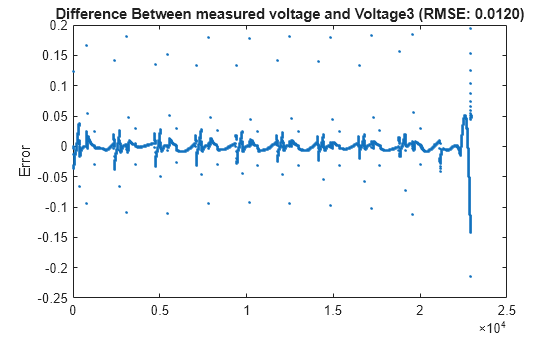

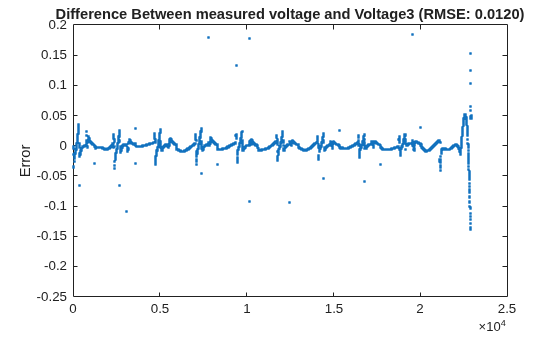

Plot the voltage error to inspect the fit.

plot(results.voltage - results.Voltage3, '.');
ylabel('Error');
title(sprintf('Difference Between measured voltage and Voltage3 (RMSE: %.4f)', s));

Figure contains an axes object. The axes object with title Difference Between measured voltage and Voltage3 (RMSE: 0.0120), ylabel Error contains a line object which displays its values using only markers.
