Scale ABCD matrix to keep state maxima under specified limit

Since R2026a

collapse all in page

Syntax

[ABCDs,umax] = scaleABCD(ABCD,nlev,f,xlim,ymax,umax)

Description

[ABCDs,umax] = scaleABCD(ABCD,nlev,f,xlim,ymax,umax) scales the ABCD matrix so that the state maxima are less than a specified limit. The maximum stable input is determined as a side-effect of this process.

Examples

collapse all

Open Live Script

Define delta-sigma modulator parameters.

order = 5;      % Modulator order
OSR = 32;       % Oversampling ratio
N = 8192;       % Number of simulation points
f = 85;         % Input signal frequency bin
amp = 0.5;      % Input signal amplitude (should be less than 1)
fB = ceil(N/(2*OSR));

Create a sinusoidal input signal.

u = amp * sin(2*pi*f/N * (0:N-1)) % Create a sine wave input
u = 1×8192

         0    0.0326    0.0650    0.0972    0.1289    0.1601    0.1906    0.2203    0.2491    0.2768    0.3034    0.3286    0.3525    0.3748    0.3956    0.4147    0.4320    0.4475    0.4611    0.4727    0.4823    0.4899    0.4953    0.4987    0.5000    0.4991    0.4961    0.4911    0.4839    0.4746    0.4634    0.4502    0.4350    0.4181    0.3993    0.3789    0.3568    0.3332    0.3082    0.2819    0.2544    0.2258    0.1963    0.1659    0.1348    0.1032    0.0711    0.0387    0.0061   -0.0264

Synthesize the noise transfer function (NTF).

H = synthesizeNTF(order, OSR, 1)
H =

         (z-1) (z^2 - 1.997z + 1) (z^2 - 1.992z + 1)
  ----------------------------------------------------------
  (z-0.7778) (z^2 - 1.613z + 0.6649) (z^2 - 1.796z + 0.8549)

Sample time: 1 seconds
Discrete-time zero/pole/gain model.
Model Properties

Realize the NTF into coefficients for a CRFB modulator structure.

[a, g, b, c] = realizeNTF(H, 'CRFB')
a = 1×5

    0.0007    0.0084    0.0550    0.2443    0.5579


g = 1×2

    0.0028    0.0079


b = 1×6

    0.0007    0.0084    0.0550    0.2443    0.5579    1.0000


c = 1×5

     1     1     1     1     1

Assemble the final ABCD matrix.

ABCD = stuffABCD(a, g, b, c, 'CRFB')
ABCD = 6×7

    1.0000         0         0         0         0    0.0007   -0.0007
    1.0000    1.0000   -0.0028         0         0    0.0084   -0.0084
    1.0000    1.0000    0.9972         0         0    0.0633   -0.0633
         0         0    1.0000    1.0000   -0.0079    0.2443   -0.2443
         0         0    1.0000    1.0000    0.9921    0.8023   -0.8023
         0         0         0         0    1.0000    1.0000         0

Run the simulation.

[v,xn,xmax,y] = simulateDSM(u, ABCD)
v = 1×8192

     1    -1    -1     1     1    -1     1    -1     1     1    -1     1     1     1    -1     1     1    -1     1    -1     1     1     1     1     1    -1     1    -1     1     1     1     1     1    -1     1     1    -1     1    -1     1    -1     1     1     1    -1    -1     1     1    -1     1


xn = 5×8192

   -0.0007    0.0000    0.0007    0.0001   -0.0005    0.0003   -0.0002    0.0006    0.0001   -0.0004    0.0005    0.0000   -0.0004   -0.0008    0.0001   -0.0003   -0.0007    0.0003   -0.0000    0.0009    0.0006    0.0003   -0.0001   -0.0004   -0.0008    0.0002   -0.0001    0.0009    0.0006    0.0002   -0.0002   -0.0005   -0.0009    0.0001   -0.0004   -0.0008    0.0001   -0.0003    0.0006    0.0001    0.0009    0.0004   -0.0001   -0.0007    0.0001    0.0008    0.0002   -0.0005    0.0002   -0.0005
   -0.0084   -0.0002    0.0087    0.0017   -0.0055    0.0039   -0.0026    0.0075    0.0016   -0.0044    0.0062    0.0010   -0.0045   -0.0100    0.0010   -0.0038   -0.0087    0.0029   -0.0013    0.0111    0.0075    0.0036   -0.0004   -0.0047   -0.0092    0.0028   -0.0013    0.0112    0.0075    0.0035   -0.0008   -0.0056   -0.0108    0.0004   -0.0046   -0.0100    0.0008   -0.0047    0.0061    0.0006    0.0112    0.0054   -0.0010   -0.0081    0.0009    0.0102    0.0031   -0.0049    0.0032   -0.0053
   -0.0633   -0.0068    0.0604    0.0126   -0.0407    0.0269   -0.0202    0.0544    0.0147   -0.0294    0.0484    0.0125   -0.0276   -0.0720    0.0058   -0.0302   -0.0701    0.0124   -0.0185    0.0735    0.0525    0.0281   -0.0001   -0.0323   -0.0690    0.0161   -0.0128    0.0803    0.0595    0.0341    0.0038   -0.0320   -0.0738    0.0046   -0.0330   -0.0772   -0.0019   -0.0431    0.0349   -0.0040    0.0761    0.0390   -0.0061   -0.0600    0.0032    0.0741    0.0261   -0.0316    0.0269   -0.0348
   -0.2443   -0.0490    0.2066    0.0423   -0.1585    0.0888   -0.0833    0.1978    0.0647   -0.0984    0.1934    0.0734   -0.0745   -0.2534    0.0218   -0.1157   -0.2814    0.0102   -0.1075    0.2386    0.1820    0.1070    0.0104   -0.1113   -0.2619    0.0435   -0.0623    0.2931    0.2423    0.1688    0.0682   -0.0641   -0.2330    0.0452   -0.0982   -0.2807   -0.0191   -0.1825    0.0998   -0.0416    0.2637    0.1457   -0.0142   -0.2231    0.0006    0.2749    0.1164   -0.0948    0.1221   -0.1046
   -0.8023   -0.2752    0.5256    0.0641   -0.5804    0.1557   -0.3792    0.4995    0.1453   -0.3567    0.5640    0.2627   -0.1730   -0.7752    0.0252   -0.4171   -1.0153   -0.1975   -0.6057    0.4545    0.3477    0.1701   -0.1011   -0.4921   -1.0330   -0.1531   -0.4965    0.6285    0.5829    0.4586    0.2274   -0.1435   -0.6917    0.1447   -0.2887   -0.9159   -0.1781   -0.7326    0.0971   -0.3451    0.6185    0.3323   -0.1304   -0.8189   -0.1851    0.7052    0.3034   -0.3277    0.3557   -0.3216


xmax = 5×1

    0.0014
    0.0167
    0.1147
    0.3735
    1.1084


y = 1×8192

         0   -0.7697   -0.2102    0.6227    0.1930   -0.4203    0.3463   -0.1588    0.7486    0.4221   -0.0533    0.8926    0.6152    0.2018   -0.3796    0.4399    0.0149   -0.5679    0.2635   -0.1330    0.9368    0.8375    0.6654    0.3977    0.0079   -0.5338    0.3431   -0.0054    1.1124    1.0575    0.9220    0.6776    0.2916   -0.2736    0.5440    0.0902   -0.5591    0.1551   -0.4244    0.3790   -0.0907    0.8443    0.5286    0.0355   -0.6841   -0.0820    0.7763    0.3421   -0.3216    0.3293

Analyze the output.

figure;
spec = fft(v .* ds_hann(N)) / (N/4);
plot(dbv(spec));
axis([0 N/2 -120 0]);
title('Spectrum of Modulator Output');
xlabel('Frequency Bin');
ylabel('dBV');
grid on;

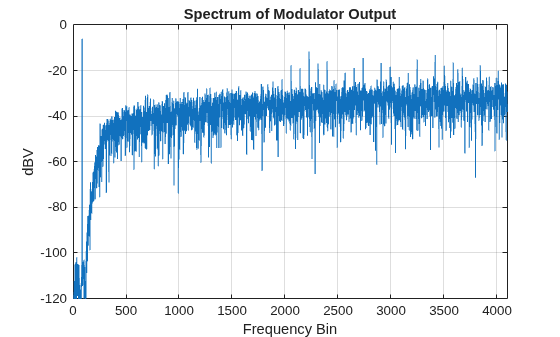

Figure contains an axes object. The axes object with title Spectrum of Modulator Output, xlabel Frequency Bin, ylabel dBV contains an object of type line.

Calculate SNR.

snr = calculateSNR(spec(1:fB),f)
snr =
82.5313

Calculate the NTF and STF of the modulator.

[ntf,stf] = calculateTF(ABCD,1)
ntf =

         (z-1) (z^2 - 1.997z + 1) (z^2 - 1.992z + 1)
  ----------------------------------------------------------
  (z-0.7778) (z^2 - 1.613z + 0.6649) (z^2 - 1.796z + 0.8549)

Sample time: 1 seconds
Discrete-time zero/pole/gain model.
Model Properties

stf =

  1

Static gain.
Model Properties

Map the ABCD matrix back to coefficients of the CRFB topology.

[a,g,b,c] = mapABCD(ABCD,'CRFB')
a = 1×5

    0.0007    0.0084    0.0550    0.2443    0.5579


g = 1×2

    0.0028    0.0079


b = 1×6

    0.0007    0.0084    0.0550    0.2443    0.5579    1.0000


c = 1×5

     1     1     1     1     1

Dynamically scale the ABCD matrix so that the state maxima are less than specified limit 1.

nlev = 2;
xlim = 1;
ymax = nlev+5;
[ABCDs,umax]=scaleABCD(ABCD,nlev,f,xlim,ymax,N)
ABCDs = 6×7

    1.0000         0         0         0         0   -0.0007    0.0007
    1.0000    1.0000   -0.0028         0         0   -0.0084    0.0084
    1.0000    1.0000    0.9972         0         0   -0.0633    0.0633
         0         0    1.0000    1.0000   -0.0079   -0.2443    0.2443
         0         0    1.0000    1.0000    0.9921   -0.8023    0.8023
         0         0         0         0   -1.0000    1.0000         0


umax =
8192

Input Arguments

collapse all

State space description of the loop filter of the delta-sigma modulator, specified as a matrix.

Data Types: double

Number of levels in the quantizer, specified as a real scalar for a single quantizer or real-valued vector for multiple quantizers.

Normalized frequency of the test sinusoid, specified as a real scalar.

Data Types: double

Limit on the state variables, specified as a real scalar or real-valued vector.

Data Types: double

The threshold to judge the delta-sigma modulator stability, specified as a real scalar. If the quantizer input exceeds ymax, the modulator is considered unstable.

Data Types: double

Maximum allowed input amplitude, specified as a real scalar. If you do not provide a value for umax, the function simulates the modulator with DC or sinusoidal input to calculate umax.

Data Types: double

Output Arguments

collapse all

State space description of the scaled loop filter of the delta-sigma modulator, retuned as a matrix.

Maximum allowed input amplitude, returned as a real scalar.

Version History

Introduced in R2026a
