Plan Mobile Robot Paths Using RRT

Load Occupancy Map

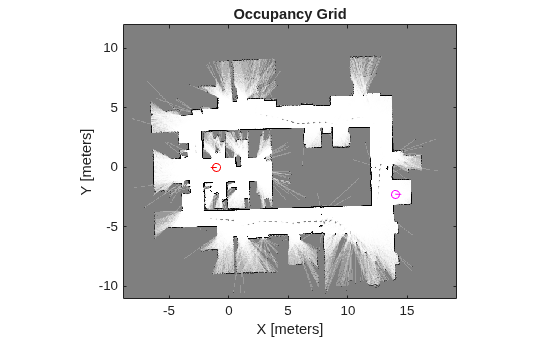

Load an occupancy map representing a small office space. Define the robot's start and goal poses on the map.

load("office_area_gridmap.mat","occGrid")
show(occGrid)

% Set start and goal poses.
start = [-1.0,0.0,-pi];
goal = [14,-2.25,0];

% Show start and goal positions of robot.
hold on
plot(start(1),start(2),'ro')
plot(goal(1),goal(2),'mo')

% Show start and goal heading angle using a line.
r = 0.5;
plot([start(1),start(1) + r*cos(start(3))],[start(2),start(2) + r*sin(start(3))],'r-')
plot([goal(1),goal(1) + r*cos(goal(3))],[goal(2),goal(2) + r*sin(goal(3))],'m-')
hold off

Consider a basic circular model for the robot. To keep the robot from getting too close to obstacles, inflate the map's obstacles slightly.

% Make a copy of the original map and infate it by 0.1 meters. Use this inflated map for path planning.
% Use the original map for visualization purpose.
inflatedMap = copy(occGrid);
inflate(inflatedMap,0.1);

Define State Space

Specify the state space of the vehicle using a stateSpaceDubins object and specifying the state bounds. This object limits the sampled states to feasible Dubins curves for steering a vehicle within the state bounds. A turning radius of 0.4 meters allows for tight turns in this small environment.

bounds = [inflatedMap.XWorldLimits; inflatedMap.YWorldLimits; [-pi pi]];

ss = stateSpaceDubins(bounds);
ss.MinTurningRadius = 0.4;

Plan The Path

To plan a path, the RRT algorithm samples random states within the state space and attempts to connect a path. These states and connections need to be validated or excluded based on the map constraints. The vehicle must not collide with obstacles defined in the map.

Create a validatorOccupancyMap object with the specified state space. Set the Map property to the loaded occupancyMap object. Set a ValdiationDistance of 0.05 m. This validation distance discretizes the path connections and checks obstacles in the map based on this.

stateValidator = validatorOccupancyMap(ss);
stateValidator.Map = inflatedMap;
stateValidator.ValidationDistance = 0.05;

Create the path planner and increase the max connection distance to connect more states. Set the maximum number of iterations for sampling states.

planner = plannerRRT(ss,stateValidator);
planner.MaxConnectionDistance = 2.5;
planner.MaxIterations = 30000;

Customize the GoalReached function. This example helper function checks if a feasible path reaches the goal within a set threshold. The function returns true when the goal has been reached, and the planner stops.

planner.GoalReachedFcn = @exampleHelperCheckIfGoal;

function isReached = exampleHelperCheckIfGoal(planner, goalState, newState)
    isReached = false;
    threshold = 0.1;
    if planner.StateSpace.distance(newState, goalState) < threshold
        isReached = true;
    end
end

Reset the random number generator to ensure reproducible results. Plan the path from the start to the goal pose.

rng default
[pthObj,solnInfo] = plan(planner,start,goal);

Shorten Path

Remove redundant nodes along the path by using the shortenpath function. The function removes unwanted nodes and generates a collision-free path by connecting non-sequential nodes that do not result in collisions.

shortenedPath = shortenpath(pthObj,stateValidator);

Compute the path length of the original path and the shortened path

originalLength = pathLength(pthObj)

originalLength =
33.8183

shortenedLength = pathLength(shortenedPath)

shortenedLength =
29.0853

You can observe that shortening resulted in decreased path length.

Plot Original Path and Shortened Path

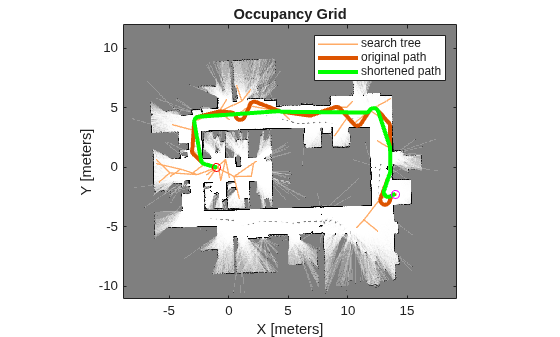

Show the occupancy map. Plot the search tree from the solnInfo. Interpolate and overlay the final path.

show(occGrid)
hold on

% Plot entire search tree.
plot(solnInfo.TreeData(:,1),solnInfo.TreeData(:,2),plannerLineSpec.tree{:})

% Interpolate and plot path.
interpolate(pthObj,300)
plot(pthObj.States(:,1),pthObj.States(:,2),plannerLineSpec.path{:})

% Interpolate and plot path.
interpolate(shortenedPath,300);
plot(shortenedPath.States(:,1),shortenedPath.States(:,2),'g-','LineWidth',3)

% Show start and goal in grid map.
plot(start(1),start(2),'ro')
plot(goal(1),goal(2),'mo')
legend('search tree','original path','shortened path')
hold off

Customize Dubins Vehicle Constraints

To specify custom vehicle constraints, customize the state space object. This example uses ExampleHelperStateSpaceOneSidedDubins, which is based on the stateSpaceDubins class. This helper class limits the turning direction to either right or left based on a Boolean property, GoLeft. This property essentially disables path types of the dubinsConnection object.

Create the state space object using the example helper. Specify the same state bounds and give the new Boolean parameter as true (left turns only).

% Only making left turns
goLeft = true;

% Create the state space
ssCustom = ExampleHelperStateSpaceOneSidedDubins(bounds,goLeft);
ssCustom.MinTurningRadius = 0.4;

Plan Path

Create a new planner object with the custom Dubins constraints and a validator based on those constraints. Specify the same GoalReached function.

stateValidator2 = validatorOccupancyMap(ssCustom);
stateValidator2.Map = inflatedMap;
stateValidator2.ValidationDistance = 0.05;

planner = plannerRRT(ssCustom,stateValidator2);
planner.MaxConnectionDistance = 2.5;
planner.MaxIterations = 30000;
planner.GoalReachedFcn = @exampleHelperCheckIfGoal;

Plan the path between the start and goal. Reset the random number generator again.

rng default
[pthObj2,solnInfo] = plan(planner,start,goal);

Shorten Path

Shorten the path by maintaining the custom motion constraints.

shortenedPath2 = shortenpath(pthObj2,stateValidator2);

Compute the path length of the original path and the shortened path

originalLength2 = pathLength(pthObj2)

originalLength2 =
46.7841

shortenedLength2 = pathLength(shortenedPath2)

shortenedLength2 =
45.7649

You can observe that shortening resulted in decreased path length.

Plot Path

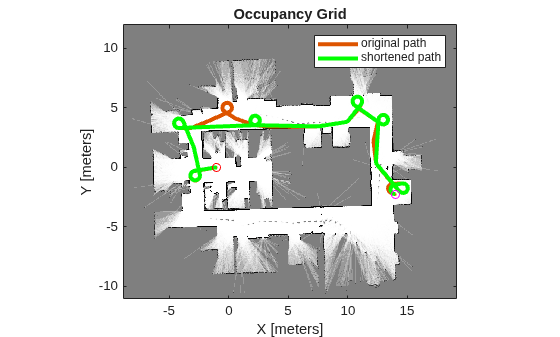

To reach the goal, the path executes only left turns.

figure
show(occGrid)
hold on
% Interpolate and plot path.
interpolate(pthObj2,300)
h1 = plot(pthObj2.States(:,1),pthObj2.States(:,2),plannerLineSpec.path{:});

% Interpolate and plot path.
interpolate(shortenedPath2,300)
h2 = plot(shortenedPath2.States(:,1),shortenedPath2.States(:,2),'g-','LineWidth',3);

% Show start and goal in grid map.
plot(start(1),start(2),'ro')
plot(goal(1),goal(2),'mo')
legend([h1 h2],'original path','shortened path')
hold off
