findThermalProperties

Find thermal material properties assigned to a geometric region

collapse all in page

Domain-specific heat transfer workflow is not recommended. New features might not be compatible with this workflow. For help migrating your existing code to the unified finite element workflow, see Migration from Domain-Specific to Unified Workflow.

Syntax

tmpa = findThermalProperties(materialProperties,RegionType,RegionID)

Description

tmpa = findThermalProperties(materialProperties,RegionType,RegionID) returns thermal material properties tmpa assigned to the specified region.

example

Examples

collapse all

Open Live Script

Create a transient thermal model that has three faces.

thermalmodel = createpde("thermal","transient");
geometryFromEdges(thermalmodel,@lshapeg);
pdegplot(thermalmodel,"FaceLabels","on")
ylim([-1.1,1.1])
axis equal

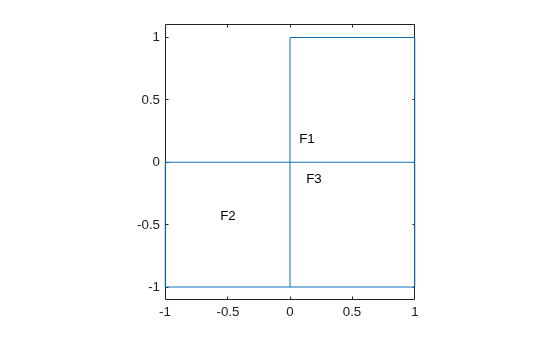

Figure contains an axes object. The axes object contains 4 objects of type line, text.

For face 1, specify the following thermal properties:

  • Thermal conductivity is 10 W/(m⋅∘C)

  • Mass density is 1 kg/m3

  • Specific heat is 0.1 J/(kg⋅∘C)

thermalProperties(thermalmodel,"ThermalConductivity",10,...
                               "MassDensity",1,...
                               "SpecificHeat",0.1,...
                               "Face",1);

For face 2, specify the following thermal properties:

  • Thermal conductivity is 20 W/(m⋅∘C)

  • Mass density is 2 kg/m3

  • Specific heat is 0.2 J/(kg⋅∘C)

thermalProperties(thermalmodel,"ThermalConductivity",20,...
                               "MassDensity",2,...
                               "SpecificHeat",0.2,...
                               "Face",2);

For face 3, specify the following thermal properties:

  • Thermal conductivity is 30 W/(m⋅∘C))

  • Mass density is 3 kg/m3

  • Specific heat is 0.3 J/(kg⋅∘C)

thermalProperties(thermalmodel,"ThermalConductivity",30,...
                               "MassDensity",3,...
                               "SpecificHeat",0.3,...
                               "Face",3);

Check the material properties specification for face 1.

mpaFace1 = findThermalProperties(thermalmodel.MaterialProperties, ...
                                                        "Face",1)
mpaFace1 =
  ThermalMaterialAssignment with properties:

             RegionType: 'face'
               RegionID: 1
    ThermalConductivity: 10
            MassDensity: 1
           SpecificHeat: 0.1000

Check the heat source specification for faces 2 and 3.

mpa = findThermalProperties(thermalmodel.MaterialProperties, ...
                                              "Face",[2,3]);
mpaFace2 = mpa(1)
mpaFace2 =
  ThermalMaterialAssignment with properties:

             RegionType: 'face'
               RegionID: 2
    ThermalConductivity: 20
            MassDensity: 2
           SpecificHeat: 0.2000


mpaFace3 = mpa(2)
mpaFace3 =
  ThermalMaterialAssignment with properties:

             RegionType: 'face'
               RegionID: 3
    ThermalConductivity: 30
            MassDensity: 3
           SpecificHeat: 0.3000
Open Live Script

Create a geometry that consists of three stacked cylinders and include the geometry in a thermal model.

gm = multicylinder(10,[1 2 3],"ZOffset",[0 1 3])
gm =
  DiscreteGeometry with properties:

       NumCells: 3
       NumFaces: 7
       NumEdges: 4
    NumVertices: 4
       Vertices: [4x3 double]


thermalmodel = createpde("thermal");
thermalmodel.Geometry = gm;
pdegplot(thermalmodel,"CellLabels","on","FaceAlpha",0.5)

Figure contains an axes object. The axes object contains 6 objects of type quiver, text, patch, line.

Thermal conductivity of the cylinder C1 is 10 W/(m⋅∘C).

thermalProperties(thermalmodel,"ThermalConductivity",10,"Cell",1);

Thermal conductivity of the cylinder C2 is 20 W/(m⋅∘C).

thermalProperties(thermalmodel,"ThermalConductivity",20,"Cell",2);

Thermal conductivity of the cylinder C3 is 30 W/(m⋅∘C).

thermalProperties(thermalmodel,"ThermalConductivity",30,"Cell",3);

Check the material properties specification for cell 1:

mpaCell1 = findThermalProperties(thermalmodel.MaterialProperties, ...
                                                        "Cell",1)
mpaCell1 =
  ThermalMaterialAssignment with properties:

             RegionType: 'cell'
               RegionID: 1
    ThermalConductivity: 10
            MassDensity: []
           SpecificHeat: []

Check the heat source specification for cells 2 and 3:

mpa = findThermalProperties(thermalmodel.MaterialProperties,"Cell",2:3);
mpaCell2 = mpa(1)
mpaCell2 =
  ThermalMaterialAssignment with properties:

             RegionType: 'cell'
               RegionID: 2
    ThermalConductivity: 20
            MassDensity: []
           SpecificHeat: []


mpaCell3 = mpa(2)
mpaCell3 =
  ThermalMaterialAssignment with properties:

             RegionType: 'cell'
               RegionID: 3
    ThermalConductivity: 30
            MassDensity: []
           SpecificHeat: []

Input Arguments

collapse all

Material properties of the model, specified as the MaterialProperties property of a thermal model.

Example: thermalmodel.MaterialProperties

Geometric region type, specified as "Face" or "Cell".

Example: findThermalProperties(thermalmodel.MaterialProperties,"Cell",1)

Data Types: char | string

Geometric region ID, specified as a vector of positive integers. Find the region IDs by using pdegplot.

Example: findThermalProperties(thermalmodel.MaterialProperties,"Face",1:3)

Data Types: double

Output Arguments

collapse all

Material properties assignment, returned as a ThermalMaterialAssignment object. See ThermalMaterialAssignment Properties.

Version History

Introduced in R2017a
