delayseq

Delay or advance sequence

collapse all in page

Syntax

shifted_data = delayseq(data,delay)
shifted_data = delayseq(data,delay,fs)

Description

shifted_data = delayseq(data,delay) delays or advances the signal in data by the number of samples specified in delay. Positive values of delay delay the signal, while negative values advance the signal. Noninteger values of delay represent fractional delays or advances. For fractional delays, the function interpolates between samples.

How the delayseq function operates on data depends on the dimensions of the data and delay arguments:

  • When delay is a scalar, the function applies the same delay to each column of data.

  • When delay is a vector:

    • If data is a matrix, the length of the delay vector must equal the number of columns in the matrix. The function applies a delay to each column using the corresponding delay entry.

    • If data is a column vector, the function creates a matrix where each column is the shift in the data vector by each entry in delay. The number of columns in shifted_data equals the length of the delay vector. The kth column of shifted_data is the result of shifting data by delay(k).

example

shifted_data = delayseq(data,delay,fs) specifies delay in seconds. fs is the sampling frequency of data. If the product of delay and fs is not an integer, delayseq implements a fractional delay or advance of the signal using interpolation.

example

Examples

collapse all

Open Live Script

Delay a 1 kHz cosine signal by an integer number of samples. Assume a sampling rate of 10 kHz.

fs = 1.0e4;
t = 0:1/fs:0.005;
signal = cos(2*pi*1000*t)';

Set the delay to 5 samples (0.5 ms).

shifted_signal = delayseq(signal,5);

Plot the original and delayed signals.

subplot(2,1,1)
plot(t.*1000,signal)
title('Input')
subplot(2,1,2)
plot(t.*1000,shifted_signal)
title('5 Sample Delay')
xlabel('msec')

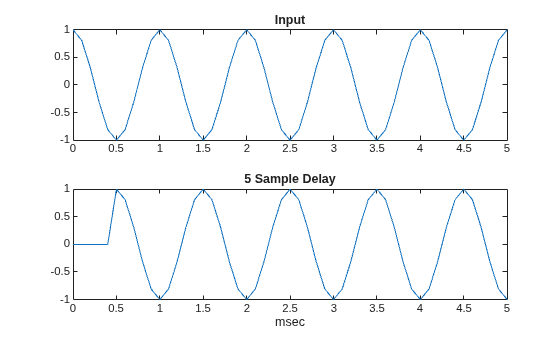

Figure contains 2 axes objects. Axes object 1 with title Input contains an object of type line. Axes object 2 with title 5 Sample Delay, xlabel msec contains an object of type line.

Open Live Script

Delay a 1 kHz cosine signal by a fractional number of samples. Assume a sampling rate of 10 kHz.

fs = 1e4;
t = 0:1/fs:0.005;
signal = cos(2*pi*1000*t)';

Set the delay to 0.25 ms or 2.5 samples.

delayed_signal = delayseq(signal,0.25e-3,fs);

Plot the original and delayed signals.

plot(t.*1000,signal)
title('Delayed Signal')
hold on
plot(t.*1000,delayed_signal,'r')
axis([0 5 -1.1 1.1])
xlabel('msec')
legend('Original Signal','Delayed Signal')
hold off

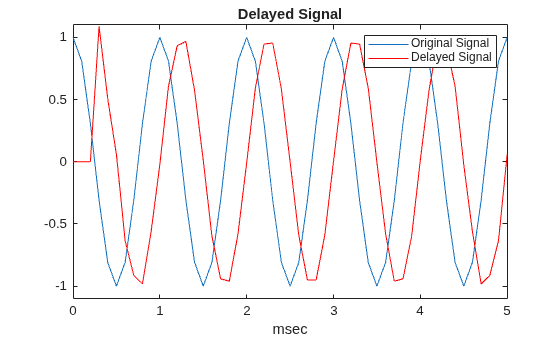

Figure contains an axes object. The axes object with title Delayed Signal, xlabel msec contains 2 objects of type line. These objects represent Original Signal, Delayed Signal.

The delayed signal values differ from the original signal values because interpolation is used to implement the fractional delay.

Input Arguments

collapse all

Input signal, specified as a real-valued length-M vector, complex-valued length-M vector, real-valued M-by-N matrix, or complex-valued M-by-N matrix.

M is the number of samples in data. When data is a matrix, N is the number of independent signals.

Data Types: single | double
Complex Number Support: Yes

Signal delay or advance, specified as a scalar or real-value N-length vector. If you specify the fs argument, delay units are in seconds. When delay is a scalar, the same delay is applied to all columns of data. delay units are in samples if fs is not specified and in seconds if fs is specified.

Data Types: single | double

Sampling frequency of the signal, specified as a positive scalar. Units are in Hz.

Data Types: single | double

Output Arguments

collapse all

Delayed or advanced signal, returned as a real-valued length-M vector, complex-valued length-M vector, real-valued M-by-N matrix, or complex-valued M-by-N matrix. shifted_data has the same number of rows as data, with appropriate truncations or zero padding.

Extended Capabilities

Version History

Introduced in R2011a
