getMatchedFilter

Matched filter coefficients derived from waveform

Since R2023a

collapse all in page

Syntax

coeff = getMatchedFilter(waveform)
coeff = getMatchedFilter(waveform,FrequencyOffset = foffset)

Description

coeff = getMatchedFilter(waveform) returns the matched filter coefficients coeff for the pulse FM waveform object.

example

coeff = getMatchedFilter(waveform,FrequencyOffset = foffset) also specifies a frequency offset foffset when matched filter coefficients are generated. To enable this syntax, set the FrequencyOffsetSource property of the waveform to 'Input port'.

Examples

collapse all

Open Live Script

Get the matched filter coefficients for a linear FM pulse.

waveform = phased.LinearFMWaveform('PulseWidth',5e-05,...
    'SweepBandwidth',1e5,'OutputFormat','Pulses');
coeff = getMatchedFilter(waveform);
stem(real(coeff))
title('Matched Filter Coefficients, Real Part')

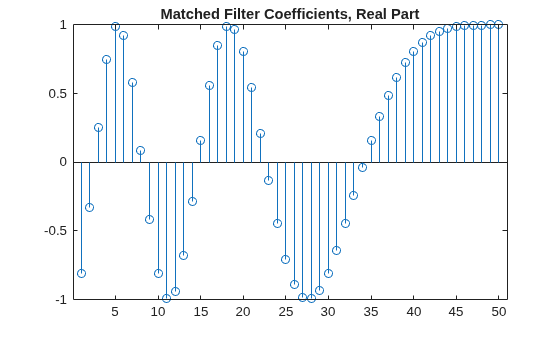

Figure contains an axes object. The axes object with title Matched Filter Coefficients, Real Part contains an object of type stem.

Input Arguments

collapse all

Pulse waveform, specified as a waveform System object.

Example: phased.RectangularWaveform

Frequency offset, specified as a scalar. Units are in Hz.

Example: 12000.0

Data Types: double

Output Arguments

collapse all

Matched filter coefficients, returned as a complex-valued column vector. Units are dimensionless.

Version History

Introduced in R2023a
