phased.RangeAngleScope

View range-angle response

Description

The phased.RangeAngleScope System object™ creates a scope for displaying a range-angle response map. The map is a 2-D representation of response intensity as a function of range and angle of arrival. You can input two types of data – in-phase and quadrature (I/Q) data and response data.

I/Q data – The data consists of fast-time I/Q samples of pulses or sweeps from multiple sensors. The scope computes and displays the response map. To use I/Q data, set the IQDataInput property to true. In this mode, you can set the properties shown in Properties Applicable to I/Q Data.
Response data – The data consists of the range-angle response itself. The scope displays the range-angle response map. You can obtain range-angle response data from the RangeAngleResponse object. To use response data, set the IQDataInput property to false. In this mode, you can set the properties shown in Properties Applicable to Response Data.

To display a range-angle response map using a scope,

Create the phased.RangeAngleScope object and set its properties.
Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

Creation

Syntax

scope = phased.RangeAngleScope

scope = phased.RangeAngleScope(Name,Value)

Description

scope = phased.RangeAngleScope creates a range-angle scope System object for displaying the range-angle response.

scope = phased.RangeAngleScope(Name,Value) creates a range-angle scope with each specified property set to the specified value. You can specify additional name-value pair arguments in any order as (Name1,Value1,...,NameN,ValueN). Enclose property names in quotes. For example,

scope = phased.RangeAngleScope('IQInputData',true,'RangeMethod', ...
        'FFT','SampleRate',1e6)

creates a scope object that uses FFT-based range processing to process I/Q data with a sample rate of 1 MHz.

example

Properties

expand all

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the release function unlocks them.

If a property is tunable, you can change its value at any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

`Name` — Display caption
`'Range-Angle Scope'` (default) | character vector

Display caption, specified as a character vector. The caption appears in the title bar of the window.

Example: 'Aircraft Range-Angle Response'

Tunable: Yes

Data Types: char

`Position` — Location and size of intensity scope window
depends on display-resolution (default) | 1-by-4 vector of positive values

Location and size of the intensity scope window, specified as a 1-by-4 vector having the form [left bottom width height].

left and bottom specify the location of the bottom-left corner of the window.
width and height specify the width and height of the window.

Units are in pixels.

The default value of this property depends on the resolution of your display. By default, the window is positioned in the center of the screen, with a width and height of 800 and 450 pixels, respectively.

Example: [100 100 500 400]

Tunable: Yes

Data Types: double

`IQDataInput` — Type of input data
`true` (default) | `false`

Type of input data, specified as true or false. When true, the object assumes that the input consists of I/Q sample data and further processing is required in the range and angle domains. When false, the object assumes that the data is response data that has already been processed.

Data Types: logical

`ResponseUnits` — Response units label
`'db'` (default) | `'magnitude'` | `'power'`

Response units, specified as 'db', 'magnitude', or 'power'.

Data Types: char

`RangeLabel` — Range-axis label
`'Range (m)'` (default) | character vector

Range-axis label, specified as a character vector.

Example: 'Range (km)'

Tunable: Yes

Dependencies

To enable this property, set the IQDataInput to false.

Data Types: char

`AngleLabel` — Angle-axis label
`'Angle (degrees)'` (default) | character vector

Angle-axis label, specified as a character vector.

Example: 'Angle Span (degrees)'

Tunable: Yes

Dependencies

To enable this property, set the IQDataInput to false.

Data Types: char

`SensorArray` — Sensor array
`phased.ULA` array with default array properties (default) | Phased Array System Toolbox™ array System object

Sensor array, specified as a Phased Array System Toolbox array System object. See phased.ULA for the default values of a uniform linear array.

Example: phased.URA

Dependencies

To enable this property, set the IQDataInput to true.

`RangeMethod` — Range processing method
`'Matched filter'` (default) | `'FFT'`

Range-processing method, specified as 'Matched filter' or 'FFT'.

`'Matched filter'`	The object applies a matched filter to the incoming signal. This approach is commonly used with pulsed signals, where the matched filter is a time-reversed replica of the transmitted signal.
`'FFT'`	Algorithm performs range processing by applying an FFT to the input signal. This approach is commonly used with FMCW continuous signals and linear FM pulsed signals.

Dependencies

To enable this property, set the IQDataInput property to true.

`RangeUnits` — Range units
`'m'` (default) | `'km'` | `'mi'` | `'nmi'`

Range units, specified as:

'm' – meters
'km' – kilometers
'mi' – miles
'nmi' – nautical miles

Example: 'mi'

Dependencies

To enable this property, set the IQDataInput property to true.

Data Types: char

`PropagationSpeed` — Signal propagation speed
`physconst('LightSpeed')` (default) | positive scalar

Signal propagation speed, specified as a positive scalar. The default value of this property is the speed of light. See physconst. Units are in meters/second.

Example: 3e8

Dependencies

To enable this property, set the IQDataInput property to true.

Data Types: double

`OperatingFrequency` — Operating frequency
`300e6` (default) | positive scalar

Operating frequency, specified as a positive scalar. Units are in Hz.

Dependencies

To enable this property, set the IQDataInput property to true.

Data Types: double

`SampleRate` — Sample rate
`1e6` (default) | positive scalar

Sample rate, specified as a positive scalar. Units are in Hz.

Example: 10e3

Dependencies

To enable this property, set the IQDataInput property to true.

Data Types: double

`SweepSlope` — FM sweep slope
`1e9` (default) | scalar

Slope of the linear FM sweep, specified as a scalar. Units are in Hz/sec.

Dependencies

To enable this property, set the IQDataInput property to true and the RangeMethod property to 'FFT'.

Data Types: double

`DechirpInput` — Dechirp input signal
`false` (default) | `true`

Set this property to true to dechirp the input signal before performing range processing. false indicates that the input signal is already dechirped and no dechirp operation is necessary.

Dependencies

To enable this property, set the IQDataInput property to true and the RangeMethod property to 'FFT'.

Data Types: logical

`RangeFFTLength` — FFT length used in range processing
`1024` (default) | positive integer

FFT length used for range processing, specified as a positive integer.

Example: 128

Dependencies

To enable this property, set the IQDataInput property to true and the RangeMethod property to 'FFT'.

Data Types: double

`ReferenceRangeCentered` — Set reference range at center of range span
`true` (default) | `false`

Set this property to true to set the reference range to the center of the range span. Set this property to false to set the reference range to the beginning of the range span.

Dependencies

To enable this property, set the IQDataInput property to true and the RangeMethod property to 'FFT'.

Data Types: logical

`ReferenceRange` — Reference range
`0.0` (default) | nonnegative scalar

Reference range of the range span, specified as a nonnegative scalar.

If you set the RangeMethod property to 'Matched filter', the reference range marks the start of the range span.
If you set the RangeMethod property to 'FFT', the position of the reference range depends on the ReferenceRangeCentered property.
- If you set the ReferenceRangeCentered property to true, the reference range marks the center of the range span.
- If you set the ReferenceRangeCentered property to false, the reference range marks the start of the range span.
Units are in meters.

Example: 1000.0

Tunable: Yes

Dependencies

To enable this property, set the IQDataInput property to true.

Data Types: double

`ElevationAngle` — Elevation angle of response
`0` (default) | scalar

Elevation angle at which to calculate the response, specified as a scalar. The elevation angle must lie in the interval from –90° to 90°, inclusive. Units are in degrees.

Example: 45.0

Dependencies

To enable this property, set the IQDataInput property to true.

Data Types: double

`AngleSpan` — Azimuth angle span of response
`[-90 90]` (default) | real-valued 1-by-2 vector

Azimuth angle span at which to calculate response, specified as a real-valued 1-by-2 row vector. The object calculates the range-angle response within the angle range, [min_angle max_angle]. Angles must lie in the interval from –90° to 90°, inclusive. Units are in degrees.

Example: [-45 45]

Dependencies

To enable this property, set the IQDataInput property to true.

Data Types: double

`NumAngleSamples` — Number of samples in azimuth angle span
`256` (default) | positive integer greater than two

Number of samples in the azimuth angle span at which to calculate the range-angle response, specified as a positive integer greater than two.

Example: 256

Dependencies

To enable this property, set the IQDataInput property to true.

Data Types: double

Usage

Syntax

scope(X,Range,Ang)

scope(X)

scope(X,XREF)

scope(X,COEFF)

Description

scope(X,Range,Ang) displays a range-angle response map, X, at the ranges, Range, and angles, Ang. This syntax applies when you set the IQDataInput to false.

scope(X) computes and displays the range-angle response map for the dechirped signal X. This syntax applies when you set the IQDataInput property to true, the RangeMethod property to 'FFT', and the DechirpInput property to false. This syntax is most commonly used with FMCW signals.

scope(X,XREF) also specifies a reference signal to use for dechirping the input signal, X. This syntax applies when you set the IQDataInput property to true, the RangeMethod property to 'FFT', and the DechirpInput property to true. This syntax is most commonly used with FMCW signals. XREF is generally the transmitted signal.

scope(X,COEFF) also specifies matched filter coefficients, COEFF. This syntax applies when you set the IQDataInput property to true and the RangeMethod property to 'Matched Filter'. This syntax is most commonly used with pulsed signals.

example

Input Arguments

expand all

`X` — Input data
complex-valued K-by-L matrix

Input data, specified as a complex-valued K-by-L matrix. The interpretation of the data depends on the value of the IQDataInput property.

When IQDataInput is true, the input consists of received fast-time data samples for each PRI pulse or FMCW sweep and for each array or subarray element. K denotes the number of fast-time (range) samples. L is the number of elements. If SensorArray contains subarrays, L is the number of subarrays. The scope computes and displays the range-angle response.
- When RangeMethod is set to 'FFT' and DechirpInput is false, X has previously been dechirped.
- When RangeMethod is set to 'FFT' and DechirpInput is true, X has not been previously dechirped. Use the syntax that includes XREF as input data.
- When RangeMethod is set to 'MatchedFilter', X has not been match filtered. Use the syntax that includes COEFF as input data.
When IQDataInput is false, the input already consists of response data in the range-angle domain, such as the data produced, for example, by RangeAngleResponse. Each row of the response map corresponds to an element of the Range vector. K is the number of range samples. Each column of the response map corresponds to an element of the Ang vector. L is the number of angles. The scope serves only as a display of the range-angle response.

`Range` — Range grid values of range-angle response map
real-valued K-by-1 column vector

Range grid values of range-angle response map, specified as a real-valued K-by-1 column vector. Range denotes the range values at which the response has been computed. Elements of Range correspond to the rows of X.

Dependencies

To enable this argument, set the IQInputData property to false.

Data Types: double

`Ang` — Angle grid values of range-angle response map
real-valued L-by-1 column vector

Angle grid values of response map, specified as a real-valued K-by-1 column vector. Ang denotes the angle values at which the response has been computed. Elements of Ang correspond to the columns of X.

Dependencies

To enable this argument, set the IQInputData property to false.

Data Types: double

`XREF` — Reference signal
complex-valued K-by-1 column vector

Reference signal used to dechirp X. XREF must be a column vector with the same number of rows as X.

Dependencies

To enable this argument, set the IQDataInput property to true, the RangeMethod property to 'FFT' and the DechirpInput property to false

Data Types: double
Complex Number Support: Yes

`COEFF` — Matched filter coefficients
complex-valued column vector

Matched filter coefficients, specified as a complex-valued column vector.

Dependencies

To enable this argument, set the IQDataInput property to true and the RangeMethod property to 'Matched Filter'.

Data Types: double
Complex Number Support: Yes

Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named obj, use this syntax:

release(obj)

expand all

Specific to Scope Objects

`show`	Turn on visibility of scopes
`hide`	Turn off visibility of scope
`isVisible`	Visibility of scopes

Common to All System Objects

`step`	Run System object algorithm
`release`	Release resources and allow changes to System object property values and input characteristics
`reset`	Reset internal states of System object

Examples

collapse all

View Target Response Using Range-Angle Scope

Open Live Script

Calculate and visualize the range-angle response from a pulsed radar transmitting a rectangular waveform using a matched filter. One target is approximately 2000 m away and is stationary relative to the radar. The second target is approximately 3500 m away and is also stationary relative to the radar. The third is approximately 2000 m away and is moving away from the radar at approximately 100 m/s. The signals arrive at an 8-element uniform linear array.

Load the data to obtain signals and parameters.

load('RangeAngleResponseExampleData','rectdata');
fs = rectdata.fs;
c = rectdata.propspeed;
fc = rectdata.fc;
rxdata = rectdata.rxdata;
mfcoeffs = rectdata.mfcoeffs;
noisepower = rectdata.noisepower;
array = rectdata.antennaarray;

Create a range-angle scope for processing.

scope = phased.RangeAngleScope( ...
    'IQDataInput',true,'RangeMethod','Matched filter', ...
    'Name','Range-Angle Scope','ResponseUnits','magnitude', ...
    'Position',[560 375 560 420],'RangeUnits','m', ...
    'SensorArray',array,'OperatingFrequency',fc, ...
    'SampleRate',fs,'PropagationSpeed',c);

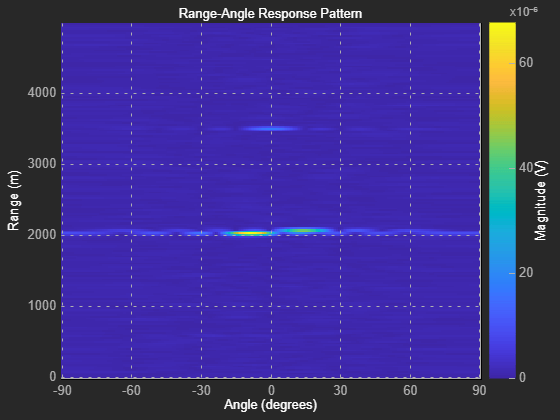

Call the scope to display the response map.

scope(rxdata,mfcoeffs)

More About

expand all

Properties Applicable to I/Q Data

These properties are applicable when IQDataInput is true.

Properties
`Name`	`Position`
`ResponseUnits`	`SensorArray`
`RangeMethod`	`PropagationSpeed`
`OperatingFrequency`	`RangeUnits`
`SampleRate`	`SweepSlope`
`DechirpInput`	`RangeFFTLength`
`ReferenceRangeCentered`	`ReferenceRange`
`ElevationAngle`	`AngleSpan`
`NumAngleSamples`

Properties Applicable to Response Data

These properties are applicable when IQDataInput is false.

Properties
`Name`	`Position`
`ResponseUnits`	`RangeLabel`
`AngleLabel`

Version History

Introduced in R2019a

phased.RangeAngleScope

Description

Creation

Syntax

Description

Properties

Name — Display caption 'Range-Angle Scope' (default) | character vector

Position — Location and size of intensity scope window depends on display-resolution (default) | 1-by-4 vector of positive values

IQDataInput — Type of input data true (default) | false

ResponseUnits — Response units label 'db' (default) | 'magnitude' | 'power'

RangeLabel — Range-axis label 'Range (m)' (default) | character vector

Dependencies

AngleLabel — Angle-axis label 'Angle (degrees)' (default) | character vector

Dependencies

SensorArray — Sensor array phased.ULA array with default array properties (default) | Phased Array System Toolbox™ array System object

Dependencies

RangeMethod — Range processing method 'Matched filter' (default) | 'FFT'

Dependencies

RangeUnits — Range units 'm' (default) | 'km' | 'mi' | 'nmi'

Dependencies

PropagationSpeed — Signal propagation speed physconst('LightSpeed') (default) | positive scalar

Dependencies

OperatingFrequency — Operating frequency 300e6 (default) | positive scalar

Dependencies

SampleRate — Sample rate 1e6 (default) | positive scalar

Dependencies

SweepSlope — FM sweep slope 1e9 (default) | scalar

Dependencies

DechirpInput — Dechirp input signal false (default) | true

Dependencies

RangeFFTLength — FFT length used in range processing 1024 (default) | positive integer

Dependencies

ReferenceRangeCentered — Set reference range at center of range span true (default) | false

Dependencies

ReferenceRange — Reference range 0.0 (default) | nonnegative scalar

Dependencies

ElevationAngle — Elevation angle of response 0 (default) | scalar

Dependencies

AngleSpan — Azimuth angle span of response [-90 90] (default) | real-valued 1-by-2 vector

Dependencies

NumAngleSamples — Number of samples in azimuth angle span 256 (default) | positive integer greater than two

Dependencies

Usage

Syntax

Description

Input Arguments

X — Input data complex-valued K-by-L matrix

Range — Range grid values of range-angle response map real-valued K-by-1 column vector

Dependencies

Ang — Angle grid values of range-angle response map real-valued L-by-1 column vector

Dependencies

XREF — Reference signal complex-valued K-by-1 column vector

Dependencies

COEFF — Matched filter coefficients complex-valued column vector

Dependencies

Object Functions

Specific to Scope Objects

Common to All System Objects

Examples

View Target Response Using Range-Angle Scope

More About

Properties Applicable to I/Q Data

Properties Applicable to Response Data

Version History

See Also

`Name` — Display caption
`'Range-Angle Scope'` (default) | character vector

`Position` — Location and size of intensity scope window
depends on display-resolution (default) | 1-by-4 vector of positive values

`IQDataInput` — Type of input data
`true` (default) | `false`

`ResponseUnits` — Response units label
`'db'` (default) | `'magnitude'` | `'power'`

`RangeLabel` — Range-axis label
`'Range (m)'` (default) | character vector

`AngleLabel` — Angle-axis label
`'Angle (degrees)'` (default) | character vector

`SensorArray` — Sensor array
`phased.ULA` array with default array properties (default) | Phased Array System Toolbox™ array System object

`RangeMethod` — Range processing method
`'Matched filter'` (default) | `'FFT'`

`RangeUnits` — Range units
`'m'` (default) | `'km'` | `'mi'` | `'nmi'`

`PropagationSpeed` — Signal propagation speed
`physconst('LightSpeed')` (default) | positive scalar

`OperatingFrequency` — Operating frequency
`300e6` (default) | positive scalar

`SampleRate` — Sample rate
`1e6` (default) | positive scalar

`SweepSlope` — FM sweep slope
`1e9` (default) | scalar

`DechirpInput` — Dechirp input signal
`false` (default) | `true`

`RangeFFTLength` — FFT length used in range processing
`1024` (default) | positive integer

`ReferenceRangeCentered` — Set reference range at center of range span
`true` (default) | `false`

`ReferenceRange` — Reference range
`0.0` (default) | nonnegative scalar

`ElevationAngle` — Elevation angle of response
`0` (default) | scalar

`AngleSpan` — Azimuth angle span of response
`[-90 90]` (default) | real-valued 1-by-2 vector

`NumAngleSamples` — Number of samples in azimuth angle span
`256` (default) | positive integer greater than two

`X` — Input data
complex-valued K-by-L matrix

`Range` — Range grid values of range-angle response map
real-valued K-by-1 column vector

`Ang` — Angle grid values of range-angle response map
real-valued L-by-1 column vector

`XREF` — Reference signal
complex-valued K-by-1 column vector

`COEFF` — Matched filter coefficients
complex-valued column vector
