shnidman

Required SNR using Shnidman’s equation

Description

SNR = shnidman(Pd,Pfa) returns the required signal-to-noise ratio in decibels for the specified detection and false-alarm probabilities using Shnidman's equation. The SNR is determined for a single pulse and a Swerling Case Number of 0, a nonfluctuating target.

example

SNR = shnidman(Pd,Pfa,N) returns the required SNR for a nonfluctuating target based on the noncoherent integration of N pulses.

example

SNR = shnidman(Pd,Pfa,N,Sw) returns the required SNR for the Swerling case number Sw.

example

Examples

collapse all

Find and compare the required single-pulse SNR for Swerling cases I and III. The Swerling case I has no dominant scatterer while the Swerling case III has a dominant scatterer.

Specify the false-alarm and detection probabilities.

pfa = 1e-6:1e-5:.001;
Pd = 0.9;

Allocate arrays for plotting.

SNR_Sw1 = zeros(1,length(pfa));
SNR_Sw3 = zeros(1,length(pfa));

Loop over PFAs for both scatterer cases.

for j=1:length(pfa)
    SNR_Sw1(j) = shnidman(Pd,pfa(j),1,1);
    SNR_Sw3(j) = shnidman(Pd,pfa(j),1,3);
end

Plot the SNR vs PFA.

semilogx(pfa,SNR_Sw1)
hold on
semilogx(pfa,SNR_Sw3)
hold off

xlabel("False-Alarm Probability")
ylabel("SNR")
title("Required Single-Pulse SNR for Pd = "+Pd)
legend("Swerling Case "+["I" "III"],Location="southwest")

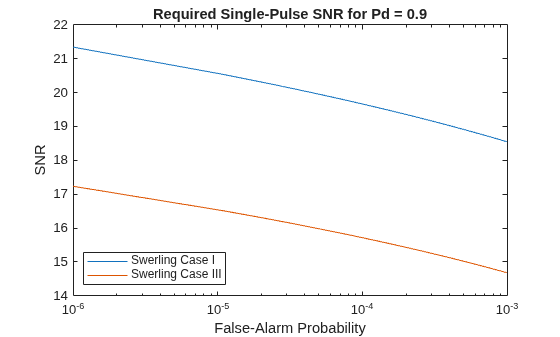

Figure contains an axes object. The axes object with title Required Single-Pulse SNR for Pd = 0.9, xlabel False-Alarm Probability, ylabel SNR contains 2 objects of type line. These objects represent Swerling Case I, Swerling Case III.

The presence of a dominant scatterer reduces the required SNR for the specified detection and false-alarm probabilities.

Input Arguments

collapse all

Probability of detection, specified as a positive scalar.

Data Types: double

Probability of false alarm, specified as a positive scalar.

Data Types: double

Number of pulses for noncoherent integration, specified as a positive scalar.

Data Types: double

Swerling case number, specified as 0, 1, 2, 3, or 4. For more information, see Swerling Case Number

Data Types: double

More About

collapse all

Shnidman's Equation

Shnidman's equation is a series of equations that yield an estimate of the SNR required for a specified false-alarm and detection probability. Like Albersheim's equation, Shnidman's equation is applicable to a single pulse or the noncoherent integration of N pulses. Unlike Albersheim's equation, Shnidman's equation holds for square-law detectors and is applicable to fluctuating targets. An important parameter in Shnidman's equation is the Swerling case number.

Swerling Case Number

The Swerling case numbers characterize the detection problem for fluctuating pulses in terms of:

  • A decorrelation model for the received pulses

  • The distribution of scatterers affecting the probability density function (PDF) of the target radar cross section (RCS).

The Swerling case numbers consider all combinations of two decorrelation models (scan-to-scan; pulse-to-pulse) and two RCS PDFs (based on the presence or absence of a dominant scatterer).

Swerling Case NumberDescription
0 (alternatively designated as 5)Nonfluctuating pulses.
IScan-to-scan decorrelation. Rayleigh/exponential PDF–A number of randomly distributed scatterers with no dominant scatterer.
IIPulse-to-pulse decorrelation. Rayleigh/exponential PDF– A number of randomly distributed scatterers with no dominant scatterer.
IIIScan-to-scan decorrelation. Chi-square PDF with 4 degrees of freedom. A number of scatterers with one dominant.
IVPulse-to-pulse decorrelation. Chi-square PDF with 4 degrees of freedom. A number of scatterers with one dominant.
