vision.labeler.loading.ImageSequenceSource Class

R2026b

Namespace: vision.labeler.loading
Superclasses: vision.labeler.loading.MultiSignalSource

Load signals from image sequence sources into Multi-Sensor Labeler app

Since R2026b

expand all in page

Description

The vision.labeler.loading.ImageSequenceSource class creates an interface for loading signals from image sequence data sources into the Multi-Sensor Labeler app. In the Add Signal dialog box of the app, when Source Type is set to Image Sequence, this class controls the parameters in that dialog box.

Add Signal dialog box with Source Type set to Image Sequence

To access this dialog box, in the app, select Import > Add Signal.

The default implementation of this class loads the image formats that can be read from an ImageDatastore object.

The vision.labeler.loading.ImageSequenceSource class is a handle class.

Creation

When you export labels from a Multi-Sensor Labeler app session that contains image sequence sources, the exported groundTruthMultiSensor object stores instances of this class in its DataSource property.

To create an ImageSequenceSource object programmatically, such as when programmatically creating a groundTruthMultiSensor object, use the vision.labeler.loading.ImageSequenceSource function (described here).

Syntax

imseqSource = vision.labeler.loading.ImageSequenceSource

Description

imseqSource = vision.labeler.loading.ImageSequenceSource creates an ImageSequenceSource object for loading signals from image sequence data sources. To specify the data source and the parameters required to load the source, use the loadSource method.

example

Properties

expand all

Name of the type of source that this class loads, specified as a string scalar.

Attributes:

GetAccess
public
Constant
true
NonCopyable
true

Description of the functionality that this class provides, specified as a string scalar.

Attributes:

GetAccess
public
Constant
true
NonCopyable
true

Name of the data source, specified as a string scalar. Typically, SourceName is the name of the file from which the signal is loaded.

Attributes:

GetAccess
public
SetAccess
protected

Parameters for loading an image sequence signal from a data source, specified as a structure.

This table describes the required and optional fields of the SourceParams structure.

FieldDescriptionRequired or Optional
Timestamps

Timestamps for the image sequence signal, specified as a cell array containing a single duration vector of timestamps.

In the Add Signal dialog box of the app, if you set the Timestamps parameter to From Workspace and read the timestamps from a variable in the MATLAB® workspace, then the SourceParams property stores these timestamps in the Timestamps field.

Optional

If you set the Timestamps parameter to Use Default and use the default timestamps for image sequence signals, then the structure does not include this field, and the SourceParams property is empty, []. For image sequence signals, the default timestamp duration vector has elements from 0 seconds to the number of valid image files minus 1. Units are in seconds.

Attributes:

GetAccess
public
SetAccess
protected

Names of the signals that can be loaded from the data source, specified as a string vector.

Attributes:

GetAccess
public
SetAccess
protected

Types of the signals that can be loaded from the data source, specified as a vector of vision.labeler.loading.SignalType enumerations. Each signal listed in the SignalName property is of the type in the corresponding position of SignalType.

Attributes:

GetAccess
public
SetAccess
protected

Timestamps of the signals that can be loaded from the data source, specified as a cell array of duration vectors. Each signal listed in the SignalName property has the timestamps in the corresponding position of Timestamp.

Attributes:

GetAccess
public
SetAccess
protected

Number of signals that can be read from the data source, specified as a nonnegative integer. NumSignals is equal to the number of signals in the SignalName property.

Attributes:

GetAccess
public
SetAccess
public
Dependent
true
NonCopyable
true

Methods

expand all

Examples

collapse all

This example uses:

Open Live Script

Specify the path to a folder containing an image sequence.

imseqFolder = fullfile(toolboxdir('driving'),'core','drivingdata','roadSequence');

Load the timestamps corresponding to the sequence.

load(fullfile(imseqFolder,'timeStamps.mat'))

Create an image sequence source. Load the folder path and timestamps into the ImageSequenceSource object.

sourceName = imseqFolder;
sourceParams = struct;
sourceParams.Timestamps = timeStamps;

imseqSource = vision.labeler.loading.ImageSequenceSource;
loadSource(imseqSource,sourceName,sourceParams);

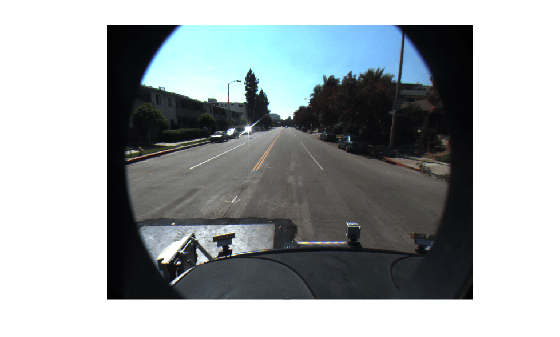

Read the first frame in the sequence. Display the frame.

signalName = imseqSource.SignalName;
I = readFrame(imseqSource,signalName,1);

figure
imshow(I)

Figure contains an axes object. The hidden axes object contains an object of type image.

Tips

  • You can this class as a starting point for creating a custom data source loading class. To view the source code for this class, use this command:

    edit vision.labeler.loading.ImageSequenceSource

Version History

Introduced in R2026b
