arrayscanloss

Loss due to electronic scanning off broadside

Since R2021a

collapse all in page

Syntax

LSS = arrayscanloss(PD,PFA,N)
LSS = arrayscanloss(___,THETAM)
LSS = arrayscanloss(___,SW)
LSS = arrayscanloss(___,'CosinePower',COSINEPOWER)

Description

LSS = arrayscanloss(PD,PFA,N) returns the two-way statistical scan sector loss for a radar with a phased array antenna that electronically scans a sector from -60 to +60 degrees off broadside. The computation assumes a square-law detector and a nonfluctuating target.

LSS = arrayscanloss(___,THETAM) computes the scan sector loss given the scan sector limits specified about the broadside direction.

LSS = arrayscanloss(___,SW) computes the scan sector loss for radar echoes received from a chi-squared distributed target specified by the Swerling case.

example

LSS = arrayscanloss(___,'CosinePower',COSINEPOWER) specifies the exponent of the cosine modeling the gain loss of an array scanned off broadside. This exponent takes into account two effects that result in the gain reduction due to array scanning. The first effect is the beam broadening due to the reduced projected array area in the beam direction. The second effect is a reduction of the effective aperture area of the individual array elements at off-broadside angles.

Examples

collapse all

Open Live Script

Compute the statistical scan sector loss for a radar with a phased array antenna. The array scans from -45 to 70 degrees about the broadside direction. Assume a single pulse is received from a Swerling 1 case target by a square-law detector and the probability of false alarm is set to 1e-6. Plot the computed loss as a function of the desired probability of detection.

Pd = 0.1:0.01:0.99;         % Detection probabilities
Pfa = 1e-6;                 % Probability of false alarm
N = 1;                      % Number of received pulses
ThetaM = [-45 70];          % Scan sector limits
Lss = arrayscanloss(Pd,Pfa,N,ThetaM,'Swerling1');

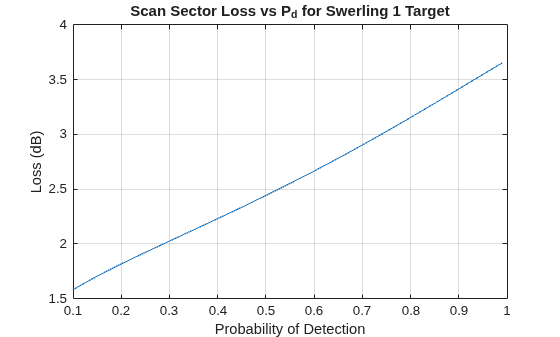

Plot the statistical scan sector loss.

plot(Pd,Lss)
xlabel('Probability of Detection')
ylabel('Loss (dB)')
title('Scan Sector Loss vs P_d for Swerling 1 Target')
grid on

Figure contains an axes object. The axes object with title Scan Sector Loss vs P_d for Swerling 1 Target Scan Sector Loss vs P_d for Swerling 1 Target, xlabel Probability of Detection, ylabel Loss (dB) contains an object of type line.

Input Arguments

collapse all

Desired probability of detection, specified as a scalar or J-length vector between 0.1 and 0.999999.

Data Types: double

Probability of false alarm, specified as a scalar or K-length vector between 1e-15 and 1e-3.

Data Types: double

Number of received pulses, specified as a positive scalar.

Data Types: double

Scan sector limits, specified as a scalar or two-element vector. If THETAM is a scalar, then the scan sector spans from -THETAM to +THETAM. If THETAM is a two-element vector of the form [theta1 theta2], the scan sector spans from theta1 to theta2. The default value is [-60 60]. Units are in degrees.

Data Types: double

Scan sector limits, specified as the Swerling case for the chi-squared distributed target. The default value of SW is 'Swerling0'.

Exponent of the cosine modeling the gain loss of an array scanned off broadside, specified as a positive scalar. Typically, the exponent value lies between 2 and 3. The default value is 2.5.

Data Types: double

Output Arguments

collapse all

Two-way statistical scan sector loss, returned as a J-by-K matrix, where J and K are the dimensions of the PD and PFA arguments. Units are in decibels (dB).
