move
Syntax
Description
[
returns the current positions, bpos
,bvel
,bax
] = move(bicyclist
,T
,angh
)bpos
, and current velocities,
bvel
, of the scatterers and the current orientation axes,
bax
, of the bicyclist. The positions, velocities, and axes are then
updated for the next time interval T
. angh
specifies the heading angle of the bicyclist.
Examples
Display Bicyclist Scatterer Positions
Plot the positions of all bicyclist scatterers. Assume there are 15 spokes per wheel.
Create a backscatterBicyclist
object for a radar system operating at 77 GHz and having a bandwidth of 300 MHz. The sampling rate is twice the bandwidth. The bicyclist is initially 5 meters away from the radar.
bw = 300e6; fs = 2*bw; fc = 77e9; rpos = [0;0;0]; bpos = [5;0;0]; bicyclist = backscatterBicyclist( ... 'OperatingFrequency',fc,'NumWheelSpokes',15, ... 'InitialPosition',bpos);
Obtain the initial position of the scatterers and advance the motion by 1 second.
[bpos,bvel,bax] = move(bicyclist,1,0);
Obtain the number of scatterers and the indices of the wheel scatterers.
N = getNumScatterers(bicyclist); Nsw = (N-114+1)/2; idxfrontwheel = (114:(114 + Nsw - 1)); idxrearwheel = (114 + Nsw):N;

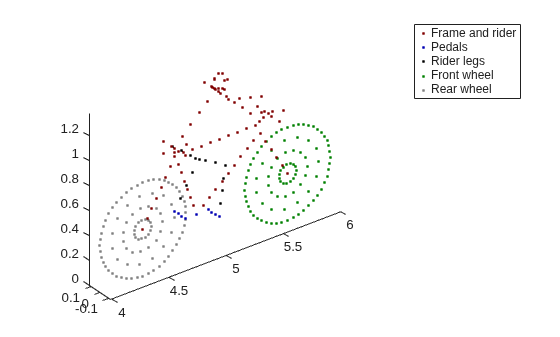

Plot the locations of the scatterers.
plot3(bpos(1,1:90),bpos(2,1:90),bpos(3,1:90), ... 'LineStyle','none','Color',[0.5,0,0],'Marker','.') axis equal hold on plot3(bpos(1,91:99),bpos(2,91:99),bpos(3,91:99), ... 'LineStyle','none','Color',[0,0,0.7],'Marker','.') plot3(bpos(1,100:113),bpos(2,100:113),bpos(3,100:113), ... 'LineStyle','none','Color',[0,0,0],'Marker','.') plot3(bpos(1,idxfrontwheel),bpos(2,idxfrontwheel),bpos(3,idxfrontwheel), ... 'LineStyle','none','Color',[0,0.5,0],'Marker','.') plot3(bpos(1,idxrearwheel),bpos(2,idxrearwheel),bpos(3,idxrearwheel), ... 'LineStyle','none','Color',[0.5,0.5,0.5],'Marker','.') hold off legend('Frame and rider','Pedals','Rider legs','Front wheel','Rear wheel')

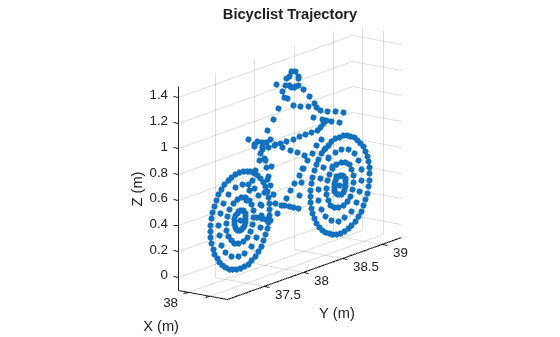

Model Bicyclist Moving along Arc
Display an animation of a bicyclist riding in a quarter circle. Use the default property values of the backscatterBicyclist
object. The motion is updated at 30 millisecond intervals for 500 steps.
dt = 0.03; M = 500; angstep = 90/M; bicycle = backscatterBicyclist; for m = 1:M [bpos,bvel,bang] = move(bicycle,dt,angstep*m); plot(bicycle) end
Input Arguments
bicyclist
— Bicyclist target
backscatterBicyclist
object
Bicyclist, specified as a backscatterBicyclist
object.
T
— Duration of next motion interval
scalar
Duration of next motion interval, specified as a positive scalar. The scatterer positions and velocities and bicyclist orientation are updated over this time duration. Units are in seconds.
Example: 0.75
Data Types: double
angh
— Bicyclist heading
0.0
| scalar
Heading of the bicyclist, specified as a scalar. Heading is measured in the xy-plane from the x-axis towards the y-axis. Units are in degrees.
Example: -34
Data Types: double
speed
— Bicyclist speed
value Speed
property (default) | nonnegative scalar
Bicyclist speed, specified as a nonnegative scalar. The motion model limits the
speed to 60 m/s. Units are in meters per second. Alternatively, you can specify the
bicyclist speed using the Speed
property of the
backscatterBicyclist
object.
Example: 8
Data Types: double
coast
— Set bicyclist coasting state
value of Coast
property (default) | false
| true
Set bicyclist coasting state, specified as false
or
true
. If set to true
, the bicyclist is not
pedaling, but the wheels are still rotating (freewheeling). If set to
false
, the bicyclist is pedaling, and the
GearTransmissionRatio
determines the ratio of wheel rotations to
pedal rotations. Alternatively, you can specify the bicyclist coasting state using the
Coast
property of the backscatterBicyclist
object.
Data Types: logical
Output Arguments
bpos
— Positions of bicyclist scatterers
real-valued 3-by-N matrix
Positions of bicyclist scatterers, returned as a real-valued
3-by-N matrix. Each column represents the Cartesian position,
[x;y;z], of one of the
bicyclist scatterers. N represents the number of scatterers and can
be obtained using the getNumScatterers
object function. Units are in
meters. See Bicycle Scatterer Indices for the column
representing the position of each scatterer.
Data Types: double
bvel
— Velocities of bicyclist scatterers
real-valued 3-by-N matrix
Velocities of bicyclist scatterers, returned as a real-valued
3-by-N matrix. Each column represents the Cartesian velocity,
[vx;vy;vz], of one of the
bicyclist scatterers. N represents the number of scatterers and can
be obtained using the getNumScatterers
object function. Units are in
meters per second. See Bicycle Scatterer Indices for the column
representing the velocity of each scatterer.
Data Types: double
bax
— Orientation axes of bicyclist
real-valued 3-by-3 matrix
Orientation axes of bicyclist, returned as a real-valued 3-by-3 matrix. Units are dimensionless.
Data Types: double
More About
Bicycle Scatterer Indices
Bicyclist scatterer indices define which columns in the scatterer position or
velocity matrices contain the position and velocity data for a specific scatterer. For
example, column 92 of bpos
specifies the 3-D position of one of the
scatterers on a pedal.
The wheel scatterers are equally divided between the wheels. You can determine the total
number of wheel scatterers, N, by subtracting 113 from the output of the
getNumScatterers
function. The number of scatterers per wheel is
Nsw = N/2.
Bicyclist Scatterer Indices
Bicyclist Component | Bicyclist Scatterer Index |
---|---|
Frame and rider | 1 … 90 |
Pedals | 91 … 99 |
Rider legs | 100 … 113 |
Front wheel | 114 … 114 + Nsw - 1 |
Rear wheel | 114 + Nsw … 114 + N - 1 |
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Version History
Introduced in R2021a
