probgrid

Nonuniformly spaced probabilities

Since R2021a

collapse all in page

    Syntax

    p = probgrid(p1,p2)
    p = probgrid(p1,p2,n)

    Description

    p = probgrid(p1,p2) returns a nonuniformly spaced array of 100 probabilities between p1 and p2 that correspond to the values of the normal cumulative distribution function (CDF) evaluated over a set of points uniformly spaced in the domain of the normal distribution.

    example

    p = probgrid(p1,p2,n) returns an array of n probabilities.

    example

    Examples

    collapse all

    Open Live Script

    Evaluate the standard normal cumulative distribution function (CDF) on a 10-point grid between 0.2 and 0.95. Determine the points that correspond to the probabilities by evaluating the inverse normal CDF, also known as the probit function.

    pmin = 0.2;
pmax = 0.95;
N = 10;

pd = probgrid(pmin,pmax,N);

xd = sqrt(2)*erfinv(2*pd-1);

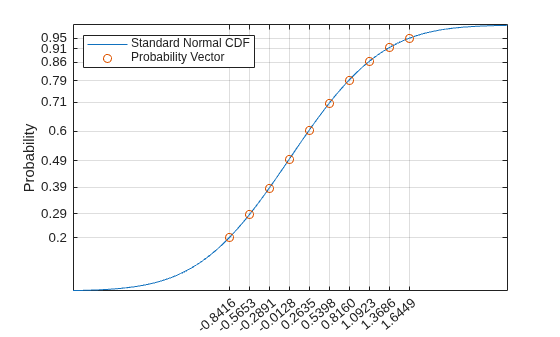

    Plot the standard normal CDF and overlay the points generated by probgrid.

    x = -3:0.01:3;
sncdf = (1+erf(x/sqrt(2)))/2;

plot(x,sncdf)

hold on
plot(xd,pd,'o')
hold off

legend({'Standard Normal CDF','Probability Vector'}, ...
  'Location','Northwest')
xticks(xd)
xtickangle(40)
yticks(round(100*pd)/100)
ylabel('Probability')
grid on

    Figure contains an axes object. The axes object with ylabel Probability contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Standard Normal CDF, Probability Vector.

    Input Arguments

    collapse all

    Interval endpoints, specified as scalars from the interval [0, 1]. p1 and p2 must obey p1 < p2.

    Data Types: double

    Number of samples in probability grid, specified as a positive integer scalar.

    Data Types: double

    Output Arguments

    collapse all

    Array of probabilities, returned as a row vector.

    Extended Capabilities

    C/C++ Code Generation
    Generate C and C++ code using MATLAB® Coder™.

    Version History

    Introduced in R2021a
