stcfactor

Sensitivity time control (STC) factor

Since R2021a

collapse all in page

    Syntax

    FSTC = stcfactor(R,RC,X)

    Description

    FSTC = stcfactor(R,RC,X) computes the range-dependent STC factor, FSTC, in dB given , R, the STC cutoff range, RC, and an exponent ,X.

    example

    Examples

    collapse all

    Open Live Script

    Compute the STC factor for the STC cutoff range of 50 km and the STC exponent of 3.0.

    R = 0:1e3:100e3;
RC = 50e3;
X = 3.0;
FSTC = stcfactor(R,RC,X);

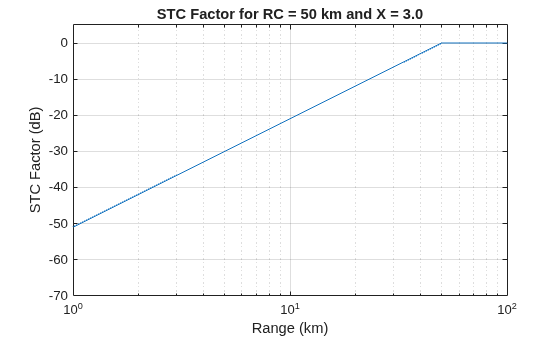

    Plot the STC factor.

    semilogx(R*1e-3,FSTC)
grid on;
xlabel('Range (km)');
ylabel('STC Factor (dB)');
ylim([-70 5]);
title('STC Factor for RC = 50 km and X = 3.0');

    Figure contains an axes object. The axes object with title STC Factor for RC = 50 km and X = 3.0, xlabel Range (km), ylabel STC Factor (dB) contains an object of type line.

    Input Arguments

    collapse all

    Range at which to compute FSTC, specified as a positive scalar or length-J vector in meters.

    STC cutoff range, specified as a positive scalar or as a length-K vector in meters.

    Exponent to maintain the target detectability, specified as a positive scalar in the range of [3,4] or as a length-K vector with each element in the range of [3,4]. The exponent maintains the target detectability below the STC cutoff range.

    Output Arguments

    collapse all

    Range-dependent STC factor, returned as a J-by-K matrix in dB with rows corresponding to the values in R and columns corresponding to the ranges in RC and X.

    Extended Capabilities

    C/C++ Code Generation
    Generate C and C++ code using MATLAB® Coder™.

    Version History

    Introduced in R2021a
