hide_system

Create a fifth-order bandpass RF filter and an amplifier with the gain of 3 dB.

f1 = rffilter('ResponseType','Bandpass','FilterOrder',5,'PassbandFrequency',[4.85 5.15]*1e9);
a1 = amplifier('Gain',3,'NF',1.53,'OIP3',35);

Create an rfbudget object using the elements at an input frequency of 5 GHz, an available input power of -30 dBm, and a bandwidth of 200 MHz.

rfb = rfbudget([f1 a1],5e9,-30,200e6);

Create an RF system using the rfbudget object.

rfs = rfsystem(rfb,'ModelName','myRFmodel');

Release system resources and turn off fast restart.

release(rfs)

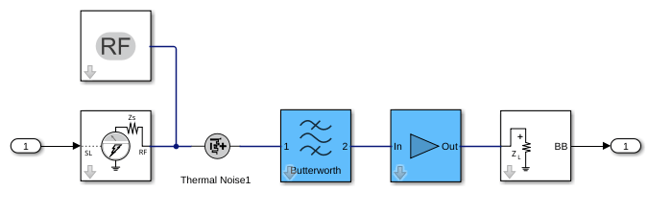

Open an RF Blockset model of the designed RF system using the open_system object function.

open_system(rfs)

Hide the RF Blockset model.

hide_system(rfs)
