translate

Move RF PCB shape to new location

Since R2021b

collapse all in page

Syntax

c = translate(shape,offset)

Description

c = translate(shape,offset) moves the shape to a new specified location using a translation vector.

example

Examples

collapse all

Open Live Script

Create a shape consisting of a curve and a right angle U-bend.

shape1 = curve;
shape2 = ubendRightAngle(Length=[5 18 5]*1e-3,ReferencePoint=[0 -5]*1e-3);
shapeSum = shape1+shape2;

Display the shape.

show(shapeSum)

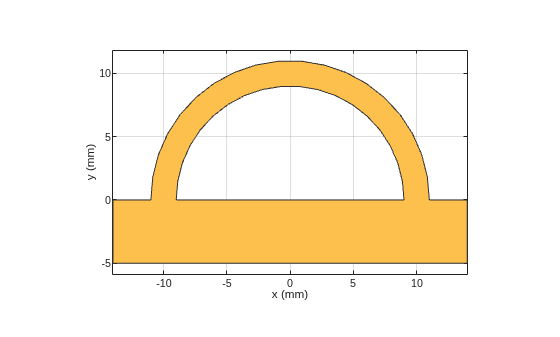

Figure contains an axes object. The axes object with xlabel x (mm), ylabel y (mm) contains 2 objects of type patch. These objects represent PEC, mypolygon.

Specify a translation vector, then translate the shape in the X-Y plane. Display the result.

t = [9 3 0]*1e-3;
shapeTrans = translate(shapeSum,t);
show(shapeTrans)

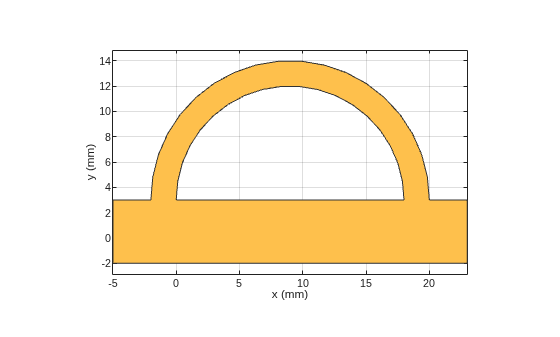

Figure contains an axes object. The axes object with xlabel x (mm), ylabel y (mm) contains 2 objects of type patch. These objects represent PEC, mypolygon.

Input Arguments

collapse all

RF PCB shape created using custom elements and shape objects of RF PCB Toolbox™, specified as an object.

Example: shape = bendCurved; specifies the shape as a bendCurved object.

Translation vector, specified as a vector.

Data Types: double

Version History

Introduced in R2021b
