Path Editing

Add Path Along Driving Lane

To add a path for an actor along its driving lane, follow these steps:

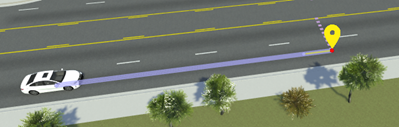

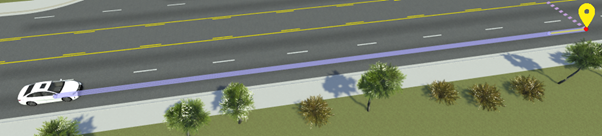

The added path segment extends from the actor to the point where you right-clicked and ends with a path waypoint.

By default, paths added onto a road network snap to the center of the lane. You can then extend this path by clicking and dragging the waypoint, and the path remains snapped to the lane center.

Create Lane Changes

To add a lane change to a path, drag a waypoint into another lane.

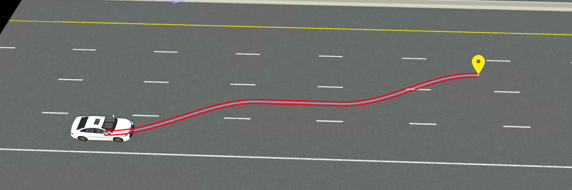

You can drag waypoints across multiple lanes.

The generated path remain snapped to the lane centers. By default, lane changes take place over a maximum distance of 20 meters. To modify this distance, select the path or any segment or waypoint along it, and in the Attributes pane, modify the Lane Change Distance attribute. Lane change distances apply to the entire path. This table shows sample lane change distance values.

Extend Path with Additional Segments

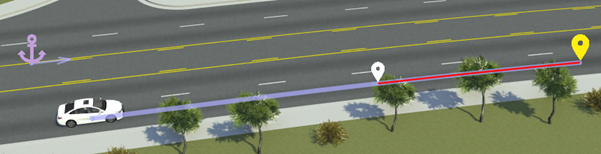

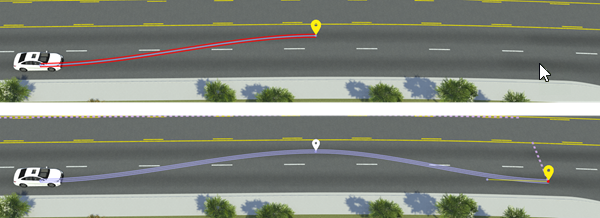

To extend paths by adding new path segments, follow these steps:

Split Path into Separate Segments

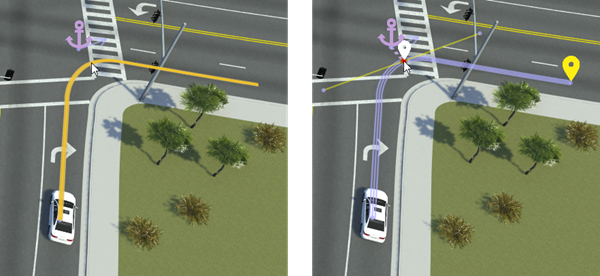

To split a path or path segment into separate segments, right-click within the path to add a new waypoint.

Modify Path Tangents

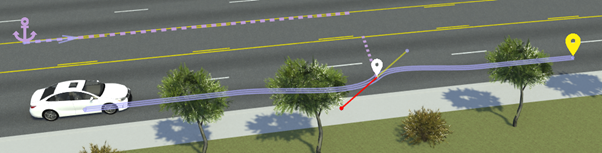

To change the shapes of paths, you can modify the tangents of path waypoints. To modify path tangent, click a waypoint to select it, and then click and drag the tangent lines to set the direction and scale of the tangent.

For more details on working with tangents, see Tangent Editing.

Set Specific Path Lengths

To set specific lengths of path segments, select a path waypoint and in the Attributes pane, under Forward Offset, modify the Offset value. This value sets how many meters the waypoint is offset from its parent anchor.

By default, path segments are anchored to the road. If you want to set path lengths relative to the vehicle, then you must change the anchor parent of the waypoints.

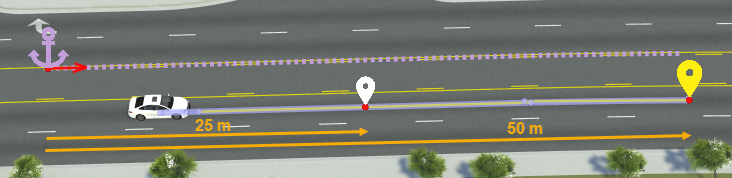

Consider this vehicle path containing two path waypoints. The waypoints are 25 meters and 50 meters in front of the road anchor, respectively.

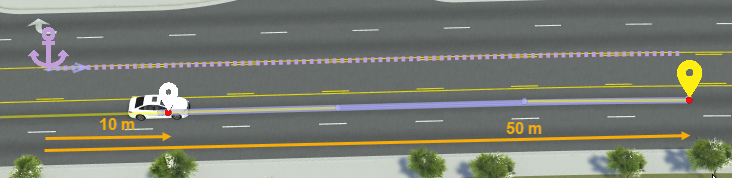

Suppose you want to set the intermediate waypoint 10 meters in front of the vehicle. Changing only the Offset value of this waypoint offsets it from the road anchor, not the vehicle.

To offset the waypoint 10 meters from the vehicle, you must first change its anchor parent from the road anchor to the vehicle, and then set the offset value, by following these steps:

This image shows the updated offset values. If you drag the vehicle, the first waypoint remains fixed 10 meters in front of the vehicle. The second waypoint remains fixed in place, because it is still anchored to the road. If you wanted the second waypoint to remain fixed 50 meters in front of the vehicle, you must change its anchor parent to the vehicle as well.

For more details on working with anchors, see Scenario Anchoring System.

Set Precise Waypoint Locations

By default, path waypoints lock to an anchor. If you disable anchoring, you can set more precise (x,y,z) locations of path waypoints. Follow these steps:

Shift Paths Within Lanes

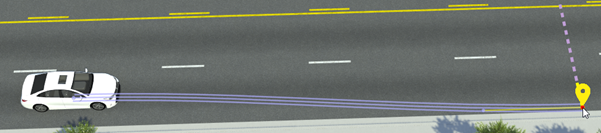

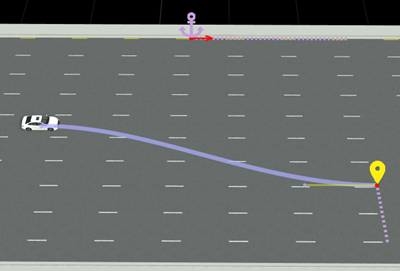

To shift a path laterally within a lane, hold the Ctrl key and then drag the path waypoint you want to shift. This image shows a path segment shifted to the curb to simulate a parking maneuver.

To set more precise lane-relative locations of waypoints, modify the waypoint attributes in the Lane Offset section of the Attributes pane. This table shows sample lane offset attributes for a waypoint.

Create Free-Form Paths

All path segments so far have followed the road network. To create more free-form paths that go on and off the roads, you can have path segments ignore the road network.

When you drag the waypoint at the end of the segment that ignores the road network, the segment no longer snaps to the center of the lane. You can now more easily create U-turn or off-road paths. For example, in this image, the second and fourth path segments ignore the road network.

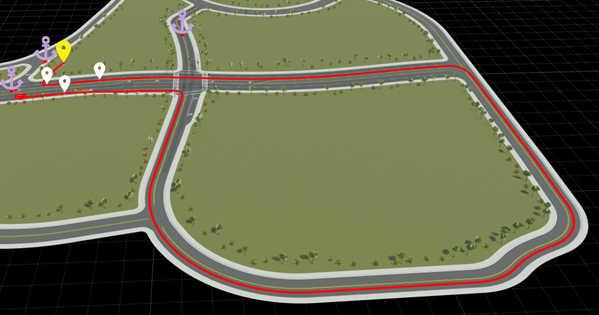

If you modify these segments to follow the road network, then they follow the road to reach the desired waypoints, leading to long and winding paths. For example, this image shows the second path segment following the road network. To reach the opposite side of the highway, the segment follows the long loop around the intersection.

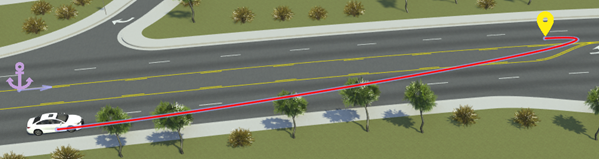

For additional control over segments that ignore the road network, you modify their curve types. In the Attributes pane, change the Curve Type attribute of the selected segments. This table describes the curve types.

Export Options for Paths

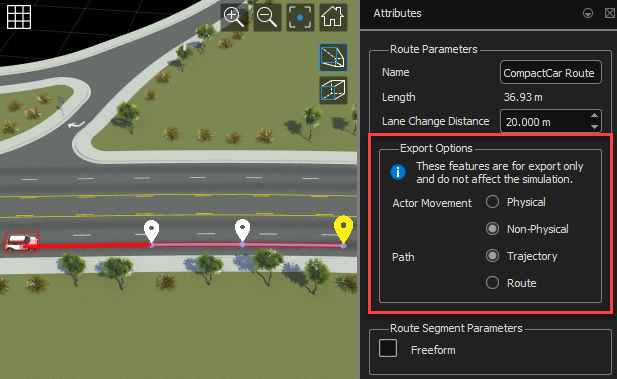

When exporting a path to the ASAM OpenSCENARIO^® format, you can configure these export options. First, select a path segment, and then, in the Attributes pane, in the Export Options section, specify these options:

For more information on these export options, see Path-Following Motion (XML) and Path-Following Motion (DSL).
