Plan Path for a Unicycle Robot in Simulink

Load the Map and Simulink Model

Load the occupancy map, which defines the map limits and obstacles within the map. exampleMaps.mat contain multiple maps including simpleMap, which this example uses.

load exampleMaps.mat

Specify a start and end location within the map.

startLoc = [5 5];
goalLoc = [12 3];

Model Overview

Open the Simulink Model

open_system('pathPlanningUnicycleSimulinkModel.slx')

The model is composed of three primary parts:

Planning

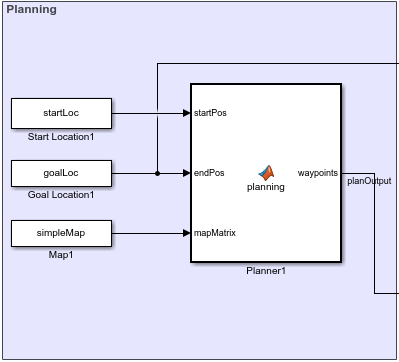

The Planner MATLAB® function block uses the mobileRobotPRM path planner and takes a start location, goal location, and map as inputs. The blocks outputs an array of waypoints that the robot follows. The planned waypoints are used downstream by the Pure Pursuit controller block.

Control

Pure Pursuit

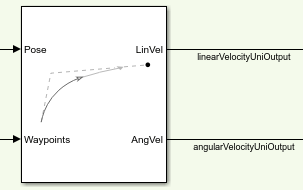

The Pure Pursuit controller block generates the linear velocity and angular velocity commands based on the waypoints and the current pose of the robot.

Check if Goal is Reached

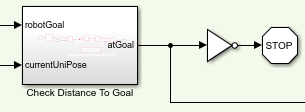

The Check Distance to Goal subsystem calculates the current distance to the goal and if it is within a threshold, the simulation stops.

Plant Model

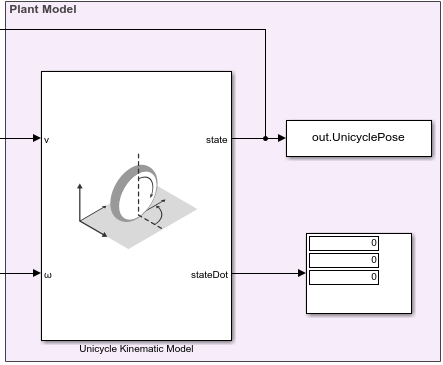

The Unicycle Kinematic Model block creates a vehicle model to simulate simplified vehicle kinematics. The block takes linear and angular velocities as command inputs from the Pure Pursuit controller block, and outputs the current position and velocity states.

Run the Model

To simulate the model

simulation = sim('pathPlanningUnicycleSimulinkModel.slx');

Visualize The Motion of Robot

After simulating the model, visualize the robot driving the obstacle-free path in the map.

map = binaryOccupancyMap(simpleMap)

map =
  binaryOccupancyMap with properties:

   mapLayer Properties
              LayerName: 'binaryLayer'
               DataType: 'logical'
           DefaultValue: 0
    GridLocationInWorld: [0 0]
      GridOriginInLocal: [0 0]
     LocalOriginInWorld: [0 0]
             Resolution: 1
               GridSize: [26 27]
           XLocalLimits: [0 27]
           YLocalLimits: [0 26]
           XWorldLimits: [0 27]
           YWorldLimits: [0 26]

robotPose = simulation.UnicyclePose

robotPose = 428×3

    5.0000    5.0000         0
    5.0000    5.0000   -0.0002
    5.0001    5.0000   -0.0012
    5.0006    5.0000   -0.0062
    5.0031    5.0000   -0.0313
    5.0156    4.9988   -0.1569
    5.0707    4.9707   -0.7849
    5.0945    4.9354   -1.1140
    5.1075    4.9059   -1.1828
    5.1193    4.8759   -1.2030
      ⋮

numRobots = size(robotPose, 2) / 3;
thetaIdx = 3;

% Translation
xyz = robotPose;
xyz(:, thetaIdx) = 0;

% Rotation in XYZ euler angles
theta = robotPose(:,thetaIdx);
thetaEuler = zeros(size(robotPose, 1), 3 * size(theta, 2));
thetaEuler(:, end) = theta;

for k = 1:size(xyz, 1)
    show(map)
    hold on;

    % Plot Start Location
    plotTransforms([startLoc, 0], eul2quat([0, 0, 0]))
    text(startLoc(1), startLoc(2), 2, 'Start');

    % Plot Goal Location
    plotTransforms([goalLoc, 0], eul2quat([0, 0, 0]))
    text(goalLoc(1), goalLoc(2), 2, 'Goal');

    % Plot Robot's XY locations
    plot(robotPose(:, 1), robotPose(:, 2), '-b')

    % Plot Robot's pose as it traverses the path
    quat = eul2quat(thetaEuler(k, :), 'xyz');
    plotTransforms(xyz(k,:), quat, 'MeshFilePath',...
        'groundvehicle.stl');

    pause(0.01)
    hold off;
end
