Work with ROS 2 Messages in Simulink

This example uses:

This example illustrates how to work with complex ROS 2 messages in Simulink®, such as messages with nested sub-messages and variable-length arrays.

Introduction

In ROS 2 Simulink Models, bus signals represent ROS 2 Messages. Each field of a ROS 2 message is corresponds to a field in a Simulink bus, with the following limitations:

Constants are not supported, and are excluded from the Simulink bus.
Variable-length arrays (ROS type ...[]) convert to fixed-length array with customizable maximum lengths. By default, the fixed length is 128 for primitive types (e.g., uint8[], float32[]), and 16 for nested arrays of messages (e.g., geometry_msgs/Point[]).
Strings (ROS type string) convert to fixed-length uint8 arrays with customizable maximum lengths, with a default maximum length of 128 characters.
String arrays (ROS type string[]) convert to a fixed-length array of std_msgs/String with a customizable maximum length. The default maximum length is 16 strings.

When a Simulink bus converts to a ROS 2 message, the message fields restore to their native ROS 2 types. For example, the ROS message type std_msgs/Header has a field, frame_id, which is a string. In the corresponding Simulink bus, the frame_id field is a uint8 array. When the bus converts to a ROS message, frame_id converts back to a string.

Model

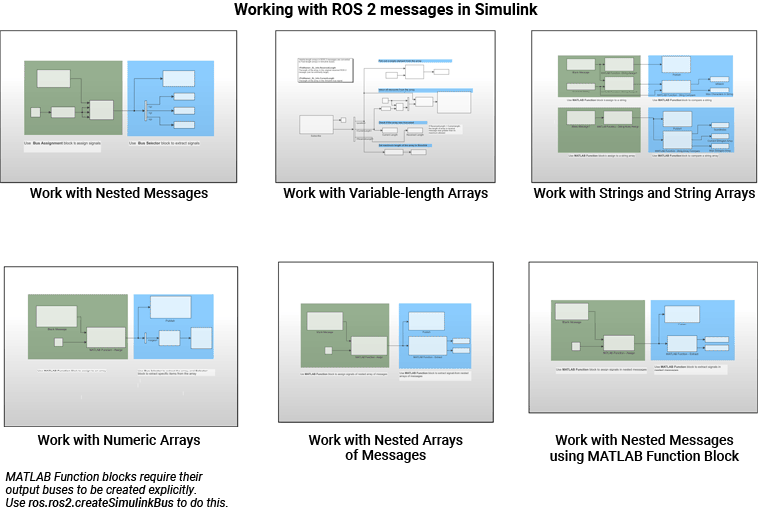

The following model has several examples of working with complex ROS 2 messages in Simulink. The rest of the tasks in this example focus on specific scenarios.

open_system('robotROS2MessageUsageExample');

Access Data in a Variable-length Array

A ROS 2 message can have arrays whose length (number of elements) cannot be pre-determined. For example, the position field in a sensor_msgs/JointState message is a variable-length array of 64-bit floats. In any given sensor_msgs/JointState message, the position array can have no elements or it can have an arbitrarily large number of elements. In Simulink, such arrays are required to have a maximum length.

Open the example model and explore how variable-length arrays in ROS messages are handled in Simulink in the following steps.

open_system('robotROS2MessageUsageExample/Work with Variable-length Arrays');

Double-click the Work with Variable-length Arrays subsystem. Note that the Subscribe block is configured to receive messages sent to topic /my_joint_topic as message type, sensor_msgs/JointState.
Under the Modeling tab, click Update Model.
Double-click on the Bus Selector block. There are three variable-length arrays in the message (position, velocity, and effort).
Observe that there is a position_SL_Info field in the bus. position_SL_Info.ReceivedLength holds the length of the Position array in the original received ROS 2 message. This value can be arbitrarily large. position_SL_Info.CurrentLength holds the length of the position array in the Simulink bus signal. This can vary between 0 and the maximum length of the array (128, in this case).

Configure ROS 2 Network

Under the Simulation tab, select ROS Network from the Prepare section. If you do not see ROS Toolbox, select Robot Operating System (ROS) on the Apps tab, under Control Systems. In the dialog box that opens up, select Robot Operating System 2 (ROS 2) from the ROS Network drop-down.
Set the Domain ID and RMW Implementation to desired values.

Run Simulation

Under the Simulation tab, set Stop Time to Inf, and click Play to start simulation.
Execute the following at the MATLAB command line.

node = ros2node("/my_node");
[pub, msg] = ros2publisher(node,"/my_joint_state", "sensor_msgs/JointState",Durability="transientlocal");
msg.position = [11:2:25]; % array of length 8
send(pub, msg);

Observe the Display outputs in the Work with Variable-length Arrays subsystem. Note that Current Length and Received Length are equal.
Execute the following at the MATLAB command line.

msg.position = 1:130; % array of length 130
send(pub, msg);

Under the Debug tab, select Diagnostics > Diagnostic Viewer. Observe that a warning is emitted, indicating that a truncation has happened. The Received Length is now 130 and Current Length is 128. Warnings are typically routed here to the Simulink Diagnostic Viewer (see Systematic Diagnosis of Errors and Warnings (Simulink)).

Modify Maximum Size of a Variable-length Array

Change the maximum size of a variable-length array in Simulink. The default maximum of the Position array in the sensor_msgs/JointState message type is 128. You will change this limit to 256.

Open the example model, and double-click on the Work with Variable-length Arrays subsystem.
From the Simulation tab, select ROS Toolbox > Variable Size Messages.
From the list box on the left, click on sensor_msgs/JointState. Then, unselect the Use default limits for this message type checkbox. Finally, enter the new value (256) in the row for the position array property, and click OK to close the dialog.
Click Play to start simulation.
Run the following at the MATLAB command line. Observe that a warning is not emitted in the Diagnostic Viewer.

msg.position = 1:200; % array of length 200
send(pub, msg);

Run the following at the MATLAB command line. Observe that a warning is emitted in the Diagnostic Viewer.

msg.position = 1:300; % array of length 300
send(pub, msg);

Close the model without saving.

Note:

The maximum size information applies to all instances of the sensor_msgs/JointState message type. For example, if other messages used in the model include a sensor_msgs/JointState message, the updated limit of 256 will apply to all those nested instances as well.
The maximum size information is specific to the model, and is saved with the model. You can have two models open that use sensor_msgs/JointState, with one model using the default limit of 128, and another using a custom limit of 256.

Work with Messages Using MATLAB Function Block

The Bus Assignment block in Simulink does not support assigning to an element inside an array of buses.

For example, a geometry_msgs/PoseArray message has a Poses property, which is required to be an array of geometry_msgs/Pose messages. If you want to assign to specific elements of the Poses array, that is not possible with the Bus Assignment block.

Explore how to use the MATLAB Function block for advanced message manipulation such as assignment of nested messages.

Open the example model. Select the Work with Nested Arrays of Messages subsystem and copy.
Open a new Simulink model. Paste and save the new model to a temporary location, with the name FunctionTest.slx.
Close all models, and clear the base workspace by typing clear in the MATLAB command line.

Configure the MATLAB Assign Block

Open the FunctionTest.slx model, double-click on the Work with Nested Arrays of Messages subsystem, and open the MATLAB Function - Assign block. Observe that it uses MATLAB notation to assign values inside a nested array.
The Function Block requires the datatype of bus outputs (in this case, msg) to be explicitly specified. Create all buses required for this model by typing the following at the MATLAB command line. Note that the bus objects are created using the name SL_Bus_<messageType> and stored in the Simulink data dictionary ros2lib. You can find this data dictionary under External Data > From Libraries in Model Explorer.

ros.ros2.createSimulinkBus(gcs)

Double-click the MATLAB Function - Assign block. Double-click the MATLAB Function - Assign block. In the MATLAB Editor toolstrip, under Modeling tab, click Symbols Pane. Then right click on msg, select Inspect and set its type to SL_Bus_geometry_msgs_PoseArray.
If you do not see SL_Bus_geometry_msgs_PoseArray listed as an option in the Type dropdown, select Refresh data types.
If you are using variable-size messages within MATLAB Function block, you must enable Dynamic memory allocation in MATLAB functions setting under Model Settings > Simulation Target > Advanced parameters. You can open the advanced parameters by hovering over the two dots (..) at the bottom of the Simulation Target dialog.

Run Simulation

Under the Simulation tab, set Stop Time to 1.0, and click Play to run the simulation. Verify that the values in the Display blocks are equal to pi/2 and pi/2 + 1.
The ros.ros2.createSimulinkBus(gcs) statement has to be re-run each time the model is loaded. To avoid these issues, include this statement in the InitFcn callback for the model (see Model Callback Parameters (Simulink)).

Work with String Arrays

A string array in a ROS message is represented in Simulink as an array of std_msgs/String messages. Each std_msgs/String message has a data property that has the actual characters in the string. Each string is represented as an array of uint8 values.

By default, the maximum number of std_msgs/String messages in a string array is 16, and the maximum length of an individual string is 128 characters. The following steps show how to change these defaults:

Open the example model, and double-click the Work with Strings and String Arrays subsystem.

Change Maximum Array Lengths

From the Simulation tab, select ROS Toolbox > Variable Size Messages.
In the Message types in model column, click on the sensor_msgs/JointState entry. Observe that the right-hand pane shows a Name property that is an array of std_msgs/String, with a maximum length of 16. To change the maximum number of strings in Name, deselect the Use default limits for this message type checkbox and enter the desired value.

In the Message types in model column, click on the std_msgs/String entry. Observe that the right-hand pane shows a data property that is an array of uint8, with a maximum length of 128. To change the maximum length of the string, deselect the Use default limits for this message type checkbox and enter the desired value.
Once you change the default values, open the Work with Strings and String Arrays subsystem and simulate the model. The Display blocks should now reflect the updated maximum values.

Note: The maximum length of data applies to all instances of std_msgs/String in the model. For example, the Blank String block in Work with Strings and String Arrays subsystem uses a std_msgs/String message, so these messages would inherit the updated maximum length. Likewise, if the model has another ROS message type with a string array property, the individual strings in that array will also inherit the updated maximum length.
