Balun

R2026b

Model balanced-to-unbalanced conversion circuit

Since R2026b

expand all in page

Libraries:
RF Blockset / Circuit Envelope / Elements

Description

Use the Balun block to:

Connect balanced circuits such as differential LNAs with unbalanced sources such as antennas.
Generate equal‑amplitude, 180° out‑of‑phase signals for linear and symmetric operation.
Enable impedance transformation for maximum power transfer.

Examples

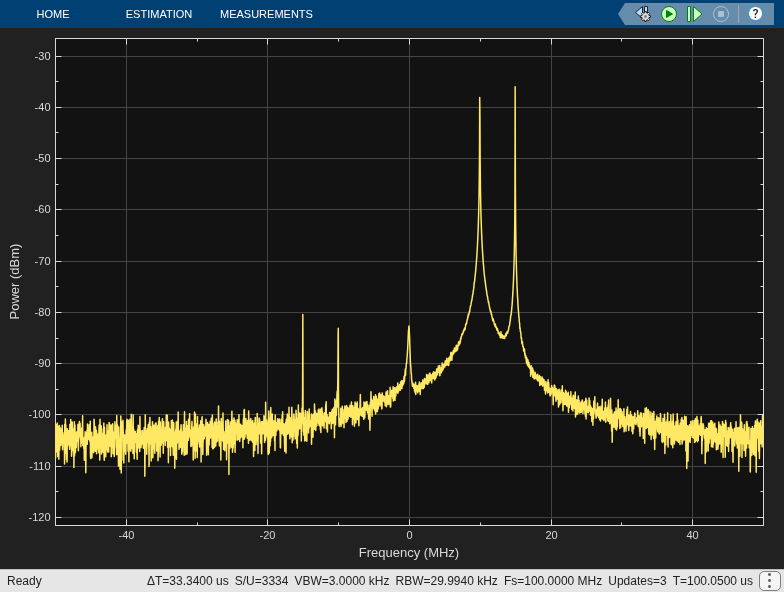

Build RF System Using Baluns

How baluns enable differential signaling in a RF transmitter chain.

Open Script

Parameters

expand all

To edit block parameters interactively, use the Property Inspector. From the Simulink^® Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.

Reference impedances (Ohm) — Reference impedance of divider
`50` (default) | positive scalar | three-tuple vector

Reference impedance of balun, specified as a positive scalar or three-tuple vector.

Ground and hide negative terminals — Ground RF circuit terminals
`on` (default) | `off`

Select this parameter to ground and hide the negative terminals. To expose the negative terminals, clear the parameter. By exposing these terminals, you can connect them to other parts of your model.

By default, this option is selected.

Version History

Introduced in R2026b
