Lamp

Display color that reflects signal value on lamp with customizable appearance

Since R2021b

Libraries:
Simulink / Dashboard / Customizable Blocks

Description

The Lamp block displays a color that reflects the value of the connected signal. When you use the Lamp block in the Customizable Blocks library, you can modify the appearance of the block so it looks like a real indicator lamp in your system. Use the Lamp block with other dashboard blocks to build an interactive dashboard of controls and indicators for your model.

To configure the Lamp block, specify one or more states. A state pairs a state value with a color for the Lamp block to display. When the value of the connected signal is the same as the state value, the Lamp block displays the color. You can also specify the state value as a range, such that the block displays the color when the value of the connected signal falls into the specified range.

Customize Lamp Blocks

When you add a Lamp block to your model, the block is preconfigured with a default design. You can use the block with the default design or customize the appearance of the block.

To customize the appearance of the block, use design mode. After selecting the block, you can enter design mode in one of three ways:

In the Simulink^® Toolstrip, on the block-specific tab, under Design, click Edit.
In the Property Inspector, on the Design tab, click Edit.
Pause on the ellipsis that appears over the block and click the Edit Custom Block button .

In design mode, you can use the toolbar above the block to customize the lamp. To access additional customization options or to enter exact values for design settings, use the Design tab in the Property Inspector.

Customizable Lamp block in design mode with the toolbar and the Design tab in the Property Inspector visible.

When you customize a Lamp block, you configure the block appearance for each state. To select a state to customize, use the drop-down list in the toolbar. Alternatively, on the Design tab, select the States component, and then select from the Select State list. To add a state, in the toolbar, click the Add State button . To delete a state, click the Remove State button .

Design Mode Actions that Customize the Selected State

Action	Available in Toolbar	Available in Design Tab
Specify the state value as a number or a range.	No	Yes
Select a shape for the region whose color reflects the signal value.	Yes	Yes
Select the color of the shape.	Yes	Yes
Select from an icon set that includes wireless icons and automotive indicator lamps, or upload a custom icon.	Yes	Yes
Specify how to combine the shape and the icon.	Yes	Yes
Change the size of the shape and icon.	No	Yes
Change the position of the shape and icon.	No	Yes

In addition to customizing the block design using the toolbar and Design tab, you can also resize and reposition components interactively in the canvas. To resize a component specific to a state, such as the icon, select the state in the toolbar, and then resize or reposition the component.

To combine the shape and icon, in the third section of the toolbar from the left, choose one of these combination styles:

Simple — Overlay the icon on top of the shape.
Intersect — Retain the intersection of the shape and icon as the area whose color reflects the signal value.
Subtract — Retain the shape with the icon cut out of it as the area that changes color.

Three Lamp blocks, each configured for one of the three ways you can combine the shape and icon: simple, intersect, or subtract.

Tip

The intersect and subtract combination styles use transparency in the icon asset to produce the area that changes color. For custom icons, consider using image formats that support transparency, such as SVG or PNG.

Design Mode Actions that Apply to All States

Action	Available in Toolbar	Available in Design Tab
Upload a background image.	No	Yes
Set a solid background color.	No	Yes
Upload a foreground image.	No	Yes

When you finish editing the design, to exit design mode, click the X in the upper right of the canvas.

Connect Dashboard Blocks

Dashboard blocks do not use ports to connect to model elements. To connect a dashboard block, use connect mode. To enter connect mode on an unconnected block, pause on the block you want to connect and click the Connect button . To enter connect mode on a connected block, select the block, pause on the ellipsis that appears (…), and in the action menu that expands, click the Connect button.

To connect a display block to a signal in your model or change the connection of a display block, enter connect mode. Select the signal line to which you want to connect. From the list that appears, select the signal to which you want to connect. Then, pause on the dashboard block and click the Done Connecting button . To see the dashboard block display the value of the connected block, run the simulation.

For more information about connecting dashboard blocks, see Connect Dashboard Blocks to Simulink Model.

You can also connect dashboard blocks to a Stateflow^® chart. For more information, see Connect Dashboard Blocks to Stateflow (Stateflow).

This animation shows how to connect the Lamp block to your model.

An unconnected Lamp block connects to the signal that a Constant block sends to an Outport block.

Examples

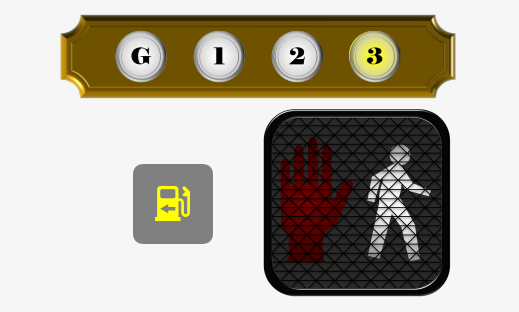

Design Custom Lamps

Design lamps using the customizable Lamp block.

Open Model

Limitations

Except for the Dashboard Scope block and the Display block, dashboard blocks can only connect to real scalar signals.
You cannot use the Connection table in the Block Parameters dialog box to connect a dashboard block to a block that is commented out. When you connect a dashboard block to a commented block using connect mode, the dashboard block does not display the connected value until the you uncomment the block.
Dashboard blocks cannot connect to model elements inside referenced models.
When you simulate a model hierarchy, dashboard blocks inside referenced models do not update.
Dashboard blocks do not support rapid accelerator simulation.

During simulation, you cannot connect a dashboard block to Stateflow chart data or state activity.
You cannot programmatically connect a dashboard block to Stateflow chart data or state activity.
Some signals do not have data available during simulation due to block reduction or optimization for accelerator mode simulations. To view such a signal using a dashboard block, mark the signal for logging.

Parameters

expand all

Use the Property Inspector and the Block Parameters dialog box to specify the values of the block parameters. To set the core parameters of the dashboard block, use the Block Parameters dialog box or the Parameters tab in the Property Inspector. To customize the block, use the Design tab in the Property Inspector. To open the Block Parameters dialog box for a block, double-click the block. To open the Property Inspector, on the Modeling tab, under Design, select Property Inspector.

Parameters

To set the core parameters of the dashboard block, open the Property Inspector and click the Parameters tab.

Signal

Connection — Signal to connect and display
signal connection options

Dashboard blocks do not use ports to connect to model elements. To connect dashboard blocks to parameter values in your model, use connect mode, the Simulink Toolstrip, or the Connection table in the Block Parameters dialog box. For information about connect mode and how to connect using the toolstrip, see Connect Dashboard Blocks to Simulink Model.

To connect a display block or change the connection of a display block using the Connection table:

Select the block.
To connect the block, in the Property Inspector, on the Parameters tab, click Connect. To change the connection of the block, click Change instead.
Select the signal line to which you want to connect.
In the table, select the signal to which you want to connect.
Click Apply.

You can also connect dashboard blocks to a Stateflow chart. For more information, see Connect Dashboard Blocks to Stateflow (Stateflow).

Programmatic Use

Block Parameter: Binding

Type: Simulink.HMI.SignalSpecification

Default: []

Main

Label — Position of label displaying name of connected element
`Hide` (default) | `Bottom` | `Top`

You can display the name of the element to which the dashboard block connects in a label positioned at the top or bottom of the block, or you can hide the label. If you want the label to be visible, specify the position. If you do not want the label to be visible, select Hide.

Note

When the dashboard block is not connected to an element, the label is blank.

Programmatic Use

Block Parameter: LabelPosition

Type: character vector

Values: 'Hide' | 'Bottom' | 'Top'

Default: 'Hide'

Lock Aspect Ratio — Option to maintain block aspect ratio
`on` (default) | `off`

Select this parameter to maintain the aspect ratio when resizing the block in the Simulink canvas.

When the aspect ratio is locked, adding a new background image changes the aspect ratio of the block to match the aspect ratio of the background image. When the aspect ratio is unlocked, adding a new background image does not change the aspect ratio of the block, but instead changes the aspect ratio of the background image to fit the size of the block.

When the aspect ratio is locked, pressing the Shift key while resizing a block temporarily unlocks the aspect ratio. When you release the Shift key, the aspect ratio locks. When the aspect ratio is unlocked, pressing the Shift key while resizing a block temporarily locks the aspect ratio. When you release the Shift key, the aspect ratio unlocks.

States

Specify State Values as Ranges — Option to specify ranges of values that activate states
`off` (default) | `on`

You can specify ranges of signal values that activate the Lamp block states. Select Specify State Values as Ranges and specify the minimum and maximum of the value range that activates each state.

Programmatic Use

To programmatically specify whether the states are each activated by a signal value or by a range of signal values, specify the StateValueType parameter as a string or a character vector. To activate each state with a signal value, set StateValueType to "Discrete". To activate each state with a range of signal values, set StateValueType to "Range".

Block Parameter: StateValueType

Type: character vector | string

Values: "Discrete" | "Range"

Default: "Discrete"

States — Pairings of lamp color with signal value
scalar and `[r g b]` vector

States pair a lamp color with a value of the connected signal. Each state consists of a Color and a State.

State — Connected signal value or range of signal values that cause the Lamp block to display the specified color. To specify a range of values, select Specify State Values as Ranges and specify the minimum and maximum of the range of values that activates each state.
Color — Lamp color when the connected signal value matches the corresponding State value. You can select from a palette of standard colors or specify a custom color with RGB values.

The [undefined] state specifies the color of the Lamp block when the connected signal value does not match any of the values specified in the States table. Click the + button to add another state.

Programmatic Use

To programmatically specify the State and Color parameter values for a Lamp block, use an array of structures that contain these fields:

Value — Scalar double signal value or vector specifying the minimum and maximum of a range of double signal values that cause the Lamp block to display the specified color indication.

Note
Specifying a vector enables the Specify State Values as Ranges option.
Color — 1-by-3 [r g b] vector with values between 0 and 1 that specifies the color for the Lamp block to display.

lampState1.Value = [1 2];
lampState1.Color = [0 0 1];
lampState2.Value = [2 3];
lampState2.Color = [1 0 0];
lampStates = [lampState1 lampState2];

Block Parameter: StateColors

Type: structure array

Default: structure

The ColorDefault parameter specifies the color for the Lamp block when the value of the connected signal does not match any of the specified state values. Specify the ColorDefault parameter as a 1-by-3 [r g b] vector with values between 0 and 1.

Block Parameter: ColorDefault

Type: [r g b] vector

Default: [0.7529 0.7529 0.7529]

Design

To customize the dashboard block, open the Property Inspector, click the Design tab, and click Edit.

Lamp

Lock Aspect Ratio — Option to maintain block aspect ratio
`on` (default) | `off`

Select this parameter to maintain the aspect ratio when resizing the block in the Simulink canvas.

When the aspect ratio is locked, adding a new background image changes the aspect ratio of the block to match that of the background image. When the aspect ratio is unlocked, adding a new background image does not change the proportions of the block but instead stretches or scales the background image to fit the size of the block.

When the aspect ratio is locked, pressing the Shift key while resizing a block unlocks the aspect ratio. When you release the Shift key, the aspect ratio locks. When the aspect ratio is unlocked, pressing the Shift key while resizing a block locks the aspect ratio. When you release the Shift key, the aspect ratio unlocks.

States

Select State — Selection of state to configure
scalar and `[r g b]` vector

Select a state that you want to configure from the drop-down menu in the Select State section of the States component. You can use a customizable Lamp block to design a lamp with any number of states greater than or equal to 1. Click + to add another state. Click X to delete the current state.

States match a display color to the value of the connected signal. Each state consists of a State and a Color.

State — Connected signal value or range of signal values that cause the Lamp block to display the specified color. To specify a range of values, select Specify State Values as Ranges and specify the minimum and maximum of the range of values that activates each state.
Color — Lamp color when the connected signal value matches the corresponding State value. You can select from a palette of standard colors or specify a custom color with RGB values.

The [default] state specifies the color of the Lamp block when the connected signal value does not match any of the values specified in the States table.

Note

You can configure more than the value and color of a state: you can configure all of the parameters in the States component of the Design tab for a state. For example, you can select an icon that will appear on the lamp when it is in the state. When you configure any of the parameters in the States component, the changes are applied to the state that is selected in the Select State section of the States component.

Tips

You can also configure the values and colors of the states for the block using the Parameters tab in the Property Inspector.

Programmatic Use

To programmatically specify the State and Color parameter values for a Lamp block, use an array of structures that contain these fields:

Value — Scalar double signal value or vector specifying the minimum and maximum of a range of double signal values that cause the Lamp block to display the specified color indication.

Note
Specifying a vector enables the Specify State Values as Ranges option.
Color — 1-by-3 [r g b] vector with values between 0 and 1 that specifies the color for the Lamp block to display.

lampState1.Value = [1 2];
lampState1.Color = [0 0 1];
lampState2.Value = [2 3];
lampState2.Color = [1 0 0];
lampStates = [lampState1 lampState2];

Block Parameter: StateColors

Type: structure array

Default: structure

Block Parameter: ColorDefault

Type: [r g b] vector

Default: [0.7529 0.7529 0.7529]

Apply Default Settings to All States — Option to apply settings of default state to all other states
`off` (default) | `on`

Apply the settings of the default state to all other states. This option applies to all settings in the States component except for the settings in the Value and Color section.

Specify State Values as Ranges — Option to specify ranges of values that activate states
`off` (default) | `on`

You can specify ranges of signal values that activate the states. Select Specify State Values as Ranges and specify the minimum and maximum of the value range that activates each state.

Programmatic Use

Block Parameter: StateValueType

Type: character vector | string

Values: "Discrete" | "Range"

Default: "Discrete"

Value — State value
scalar

Each state pairs a Value with a Color. Specify the Value that activates the state selected in the Design tab.

Note

When the Specify State Values as Ranges option is enabled, the Value parameter changes to the parameters Minimum and Maximum, which allow you to define a range by specifying its minimum and maximum values.

Example: 0

Color — State color
`[r g b]` vector

Each state pairs a Value with a Color. Choose the Color of the state selected in the Design tab from the palette of standard colors, or specify a custom color.

Example: [1 0 0]

Opacity — State color opacity
`1` (default) | scalar

Specify the opacity of the state Color as a scalar value from 0 to 1.

Example: 0.5

Style — Shape and icon combination style
`Intersect` (default) | `Simple` | `Subtract`

A lamp can show up to three different colors:

State Color
Color of the selected icon in the Property Inspector
Background color or the background image, depending on which is activated

The colors that show on the lamp depend on how the shape and icon layers of the Lamp block are combined. Select how to combine the layers:

In the Intersect style, the area where the shape and icon overlap has the state Color. The area where the shape and icon do not overlap has the background color or image.
In the Simple style, the area of the shape that is not covered by the icon has the state Color. The icon on the lamp has the same colors as its counterpart in the Property Inspector. The remaining area has the background color or image.
In the Subtract style, the area of the shape that is not covered by the icon has the state Color. The remaining area has the background color or image.

Three Lamp blocks, each configured for one of the three ways you can combine the shape and icon: simple, intersect, or subtract.

Example: 'Simple'

Shape — State shape

Select a shape that, in combination with the icon, determines the area on the lamp to which the state Color is applied. Choose a circle, a square, or a triangle.

Icon — Lamp block appearance
SVG image

Use an icon to configure the appearance of the Lamp block in the model. You can choose from built-in shape, automotive, and wireless icons, or you can upload your own custom SVG file as an icon.

To view icon options, in the Icon section, select an Icon Type. To use your own SVG file as the block icon, in the Icon section, select Custom as the Icon Type, and in the Custom Icon section, click the plus button to upload the SVG file.

Shape Icons

Icon	Icon Name	Programmatic Use Value
	Lamp	`Default`
	Check1	`Check1`
	Check2	`Check2`
	Check3	`Check3`
	Check4	`Check4`
	Circle	`Circle`
	Ex1	`Ex1`
	Ex2	`Ex2`
	Ex3	`Ex3`
	Ex4	`Ex4`
	Face	`Face`
	Frown1	`Frown1`
	Frown2	`Frown2`
	Hexagon	`Hexagon`
	L-shaped Membrane	`Membrane`
	Pentagon	`Pentagon`
	Rectangle	`Rectangle`
	Smile1	`Smile1`
	Smile2	`Smile2`
	Solid Face	`SolidFace`
	Solid Frown1	`SolidFrown1`
	Solid Frown2	`SolidFrown2`
	Solid Smile1	`SolidSmile1`
	Solid Smile2	`SolidSmile2`
	Square	`Square`
	Triangle	`Triangle`

Automotive Icons

Icon	Icon Name	Programmatic Use Value
	Adaptive Cruise Control	`AdaptiveCruiseControl`
	Adaptive Cruise Control Failure	`AdaptiveCruiseControlFailure`
	Antilock Brake System	`AntilockBrakeSystem`
	Battery	`Battery`
	Check Engine	`CheckEngine`
	Check Engine2	`CheckEngine2`
	Cruise Control	`CruiseControl`
	Eco Mode	`EcoMode`
	Electronic Stability	`ElectronicStability`
	Engine	`Engine`
	Engine Coolant Temp	`EngineCoolantTemp`
	Engine Failure	`EngineFailure`
	Engine Heating	`EngineHeating`
	Engine Oil	`EngineOil`
	Exterior Bulb Failure	`ExteriorBulbFailure`
	Front Fog Light	`FrontFogLight`
	Fuel	`Fuel`
	Hazards	`Hazards`
	Headlamp Leveling	`HeadlampLeveling`
	High Beams	`HighBeams`
	Hill Descent Control	`HillDescentControl`
	Lighting Switch	`LightingSwitch`
	Low Beams	`LowBeams`
	Parking Assistance	`ParkingAssistance`
	Rear Fog Light	`RearFogLight`
	Side Lights	`SideLights`
	Stability Control	`StabilityControl`
	Stability Control Off	`StabilityControlOff`
	Tire Monitor	`TireMonitor`
	Traction Control	`TractionControl`
	Traction Control Off	`TractionControlOff`
	Traction Control Failure	`TractionControlFailure`
	Turn Signal Left	`TurnSignalLeft`
	Turn Signal Right	`TurnSignalRight`

Wireless Icons

Icon	Icon Name	Programmatic Use Value
	Network	`Network`
	Network No Signal	`NetworkNoSignal`
	Network Transmission	`NetworkTransmission`
	Network3G	`Network3G`
	Network4G	`Network4G`
	Network5G	`Network5G`

Tip

The Dashboard library has libraries with a preconfigured Lamp block for each icon.

Programmatic Use

Block Parameter: Icon

Type: string | character vector

Default: 'Default'

X Offset — Horizontal offset of left edge of shape icon combination bounding box from left edge of block
scalar

Specify the horizontal offset of the left edge of the bounding box of the shape and icon combination from the left edge of the block as a ratio of the block width. Relative to the position of the shape and icon combination when the offset is 0, an offset with a negative value moves the combination left and an offset with a positive value moves the combination right.

Example: 1

Y Offset — Vertical offset of top edge of shape icon combination bounding box from top edge of block
scalar

Specify the vertical offset of the top edge of the bounding box of the shape and icon combination from the top edge of the block as a ratio of the block height. Relative to the position of the shape and icon combination when the offset is 0, an offset with a negative value moves the combination up and an offset with a positive value moves the combination down.

Example: 1

Width — Width of shape icon combination
scalar

Specify the width of the bounding box of the shape and icon combination as a ratio of the block width.

Example: 0.5

Height — Height of shape icon combination
scalar

Specify the height of the bounding box of the shape and icon combination as a ratio of the block height.

Example: 0.5

Icon Size — Icon image zoom level
scalar

You can modify how the icon is shown on the lamp by zooming in or out on its center. Specify the zoom level as a scalar value from 0 to 2. When the Icon Size is 1, the icon is zoomed to show the whole image as large as is possible within the limits of the bounding box of the shape and icon combination. When the Icon Size is larger than 1, the image is cut off at the limits of the bounding box.

Example: 0.5

Background Image

Use Background Color — Option to specify solid block background color
`off` (default) | `on`

For the block background, you can provide a background image or select a solid color. To select a solid background color, select this parameter. To provide a background image, clear this parameter.

Note

Changing the background color using the Format tab of the Simulink Toolstrip removes the background image and enables the Use Background Color parameter.

Example: on

Color — Block background color
`[r g b]` vector

To use a solid background color, select the Use Background Color parameter. Then, choose a background color from the palette of standard colors, or specify a custom color.

Tip

You can also specify the Background Color in the Format tab of the Simulink Toolstrip.

To specify the color of the block text, use the Font Color parameter.

Programmatic Use

Specify the BackgroundColor parameter for the block as a 1-by-3 [r g b] vector with values between 0 and 1 that is formatted as a string or a character vector.

Block Parameter: BackgroundColor

Type: string | character vector

Values: [r g b] vector

Opacity — Block background opacity
`1` (default) | scalar

Specify the block background opacity as a scalar value from 0 to 1.

Example: 0.5

Corner Radius — Corner radius of area with block background color
scalar

Specify the corner radius of the area covered by the block background color as a ratio of half of the smaller of the two block dimensions, width or height.

Example: 0.25

Foreground Image

X Offset — Horizontal offset of left edge of foreground image from left edge of block
scalar

Specify the horizontal offset of the left edge of the image from the left edge of the block as a ratio of the block width. Relative to the position of the image when the offset is 0, an offset with a negative value moves the image left, and an offset with a positive value moves the image right.

Example: 1

Y Offset — Vertical offset of top edge of foreground image from top edge of block
scalar

Specify the vertical offset of the top edge of the image from the top edge of the block as a ratio of the block height. Relative to the position of the image when the offset is 0, an offset with a negative value moves the image up, and a positive value moves the image down.

Example: 1

Width — Foreground image width
scalar

Specify the width of the foreground image as a ratio of the block width.

Example: 0.5

Height — Foreground image height
scalar

Specify the height of the foreground image as a ratio of the block height.

Example: 0.5

Lock Aspect Ratio — Option to maintain foreground image aspect ratio
`on` (default) | `off`

Select this parameter to maintain the aspect ratio when resizing the image using the Property Inspector.

Block Characteristics

Data Types	`Boolean` \| `double` \| `enumerated` \| `fixed point` \| `half` \| `integer` \| `single`
Direct Feedthrough	`no`
Multidimensional Signals	`no`
Variable-Size Signals	`no`
Zero-Crossing Detection	`no`

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Dashboard blocks are ignored for code generation.

Version History

Introduced in R2021b

expand all

R2024b: Unlock dashboard block aspect ratio with keyboard

If the aspect ratio of a block from the Dashboard library is locked, you can temporarily unlock the aspect ratio by pressing Shift. When you release the Shift key, the aspect ratio locks.

If the aspect ratio is unlocked, pressing Shift temporarily locks the aspect ratio. When you release the Shift key, the aspect ratio unlocks.

R2024a: Deploy dashboard panel as web app or standalone desktop app

With a Simulink Compiler™ license, you can now deploy a dashboard panel, packaged with the model to which the panel connects, as a standalone desktop app or as a web app. You can use the app to operate the controls and monitor the displays on the panel independent of Simulink.

To learn how to deploy panels, see Deploy Dashboard Panel as App.

R2024a: Dock dashboard panels

You can now dock dashboard panels to the Simulink Editor window. You can use the docked panel to monitor signals and control parameters during simulation without covering the model diagram in the canvas.

For more information, see Dock Panels.

R2023b: Open panel in new window

Starting in R2023b, you can open a dashboard panel in a new window. To do so, select the panel and pause on the ellipsis that appears. In the action menu that expands, click Open In New Window .

You can minimize and restore the new window containing the panel separately from the model window. From the panel window, you can run, pause, stop, and step through the simulation. In the panel window, you can edit the panel and the blocks it contains.

To return the panel to the model canvas, in the panel window toolstrip, click Open in canvas .

For more information about opening a panel in a new window, see Open Panels in New Window.

R2023a: Persistent panels tab in Simulink Toolstrip

When you add a dashboard panel to a model, the Panels tab appears in the Simulink Toolstrip and shows options for managing and editing panels.

Previously, the Panels tab was only visible when a panel was selected. Starting in R2023a, the Panels tab stays visible when no panel is selected.

The Panels tab also contains these new options:

You can add an empty panel.
You can rename the selected panel.
You can hide the selected panel.

R2022b: Undo and redo support for customizable dashboard blocks in panel

Starting in R2022b, you can undo and redo the changes you make to customizable dashboard blocks that are in a panel.

To undo or redo a change:

Click the panel or a block in the panel.
Press Ctrl+Z to undo the change, or press Ctrl+Y to redo the change.

Note

The keyboard shortcuts are based on Windows^®. On a Mac, press command (⌘) instead of Ctrl.

R2022b: Toolstrip support for panels

Starting in R2022b, you can use the Simulink Toolstrip to manage and edit panels and the dashboard blocks that they contain.

When you click a dashboard block in a panel, the toolstrip tab for the block appears. For example, when you click a Circular Gauge block, the Gauge tab appears in the toolstrip.

When you click a panel, the Panel tab appears in the toolstrip. The tab provides these options:

Manage the visibility of panels in the model.
Fit all unhidden panels within the current view.
Collapse the selected panel.
Customize the size and the contents of the panel.
Set a custom background image for the selected panel.
Add a new tab to the selected panel.

R2022b: Extended support for customizable Dashboard blocks on Raspberry Pi boards

Starting in R2022b, the Simulink Support Package for Raspberry Pi^® Hardware supports deploying these blocks from the Customizable Blocks library on your Raspberry Pi boards:

Horizontal Gauge
Horizontal Slider
Lamp
Push Button
Rocker Switch
Rotary Switch
Slider Switch
Toggle Switch
Vertical Gauge
Vertical Slider

You can customize the visual aspects of the blocks in a Simulink model and obtain the what you see is what you get (WYSIWYG) visualization on a web browser you launch from a Raspberry Pi terminal.

R2022b: Extended support for customizable Dashboard blocks on Android devices

Starting in R2022b, the Simulink Support Package for Android^® Devices supports deploying these blocks from the Customizable Blocks library on your Android devices:

Horizontal Gauge
Horizontal Slider
Lamp
Push Button
Rocker Switch
Rotary Switch
Slider Switch
Toggle Switch
Vertical Gauge
Vertical Slider

You can customize the visual aspects of the blocks in a Simulink model and obtain the what you see is what you get (WYSIWYG) visualization on your Android device as well as on your web browser.

R2022a: View and edit each state in design mode

Starting in R2022a, you can view and edit each state for the customizable Lamp block in design mode. You can modify more aspects of the block appearance for each state. For example, you can now design a lamp that uses a different icon for each state.

R2022a: Lamp block supports specifying state values as ranges

In previous releases, the Lamp block would only enter a state if the connected signal had a single unique value that you specified for that state. Starting in R2022a, you can specify a range of signal values that activate each state.

R2022a: Change opacity of state colors

Starting in R2022a, for the customizable Lamp block, you can change the opacity of the state color.

R2022a: Resize and reposition foreground image

The blocks in the Customizable Blocks library have an option to add a foreground image as part of the design for a block. Starting in R2022a, you can rotate, resize, and reposition the foreground image within the block design.

Lamp

Description

Customize Lamp Blocks

Connect Dashboard Blocks

Examples

Design Custom Lamps

Limitations

Parameters

Parameters

Connection — Signal to connect and display signal connection options

Programmatic Use

Label — Position of label displaying name of connected element Hide (default) | Bottom | Top

Programmatic Use

Lock Aspect Ratio — Option to maintain block aspect ratio on (default) | off

Specify State Values as Ranges — Option to specify ranges of values that activate states off (default) | on

Programmatic Use

States — Pairings of lamp color with signal value scalar and [r g b] vector

Programmatic Use

Design

Lock Aspect Ratio — Option to maintain block aspect ratio on (default) | off

Select State — Selection of state to configure scalar and [r g b] vector

Tips

Programmatic Use

Apply Default Settings to All States — Option to apply settings of default state to all other states off (default) | on

Specify State Values as Ranges — Option to specify ranges of values that activate states off (default) | on

Programmatic Use

Value — State value scalar

Color — State color [r g b] vector

Opacity — State color opacity 1 (default) | scalar

Style — Shape and icon combination style Intersect (default) | Simple | Subtract

Shape — State shape image

Icon — Lamp block appearance SVG image

Programmatic Use

X Offset — Horizontal offset of left edge of shape icon combination bounding box from left edge of block scalar

Y Offset — Vertical offset of top edge of shape icon combination bounding box from top edge of block scalar

Width — Width of shape icon combination scalar

Height — Height of shape icon combination scalar

Icon Size — Icon image zoom level scalar

Use Background Color — Option to specify solid block background color off (default) | on

Color — Block background color [r g b] vector

Programmatic Use

Opacity — Block background opacity 1 (default) | scalar

Corner Radius — Corner radius of area with block background color scalar

X Offset — Horizontal offset of left edge of foreground image from left edge of block scalar

Y Offset — Vertical offset of top edge of foreground image from top edge of block scalar

Width — Foreground image width scalar

Height — Foreground image height scalar

Lock Aspect Ratio — Option to maintain foreground image aspect ratio on (default) | off

Block Characteristics

Extended Capabilities

C/C++ Code Generation Generate C and C++ code using Simulink® Coder™.

Version History

R2024b: Unlock dashboard block aspect ratio with keyboard

R2024a: Deploy dashboard panel as web app or standalone desktop app

R2024a: Dock dashboard panels

R2023b: Open panel in new window

R2023a: Persistent panels tab in Simulink Toolstrip

R2022b: Undo and redo support for customizable dashboard blocks in panel

R2022b: Toolstrip support for panels

R2022b: Extended support for customizable Dashboard blocks on Raspberry Pi boards

R2022b: Extended support for customizable Dashboard blocks on Android devices

R2022a: View and edit each state in design mode

R2022a: Lamp block supports specifying state values as ranges

R2022a: Change opacity of state colors

R2022a: Resize and reposition foreground image

See Also

Blocks

Tools

Topics

Connection — Signal to connect and display
signal connection options

Label — Position of label displaying name of connected element
`Hide` (default) | `Bottom` | `Top`

Lock Aspect Ratio — Option to maintain block aspect ratio
`on` (default) | `off`

Specify State Values as Ranges — Option to specify ranges of values that activate states
`off` (default) | `on`

States — Pairings of lamp color with signal value
scalar and `[r g b]` vector

Lock Aspect Ratio — Option to maintain block aspect ratio
`on` (default) | `off`

Select State — Selection of state to configure
scalar and `[r g b]` vector

Apply Default Settings to All States — Option to apply settings of default state to all other states
`off` (default) | `on`

Specify State Values as Ranges — Option to specify ranges of values that activate states
`off` (default) | `on`

Value — State value
scalar

Color — State color
`[r g b]` vector

Opacity — State color opacity
`1` (default) | scalar

Style — Shape and icon combination style
`Intersect` (default) | `Simple` | `Subtract`

Shape — State shape

Icon — Lamp block appearance
SVG image

X Offset — Horizontal offset of left edge of shape icon combination bounding box from left edge of block
scalar

Y Offset — Vertical offset of top edge of shape icon combination bounding box from top edge of block
scalar

Width — Width of shape icon combination
scalar

Height — Height of shape icon combination
scalar

Icon Size — Icon image zoom level
scalar

Use Background Color — Option to specify solid block background color
`off` (default) | `on`

Color — Block background color
`[r g b]` vector

Opacity — Block background opacity
`1` (default) | scalar

Corner Radius — Corner radius of area with block background color
scalar

X Offset — Horizontal offset of left edge of foreground image from left edge of block
scalar

Y Offset — Vertical offset of top edge of foreground image from top edge of block
scalar

Width — Foreground image width
scalar

Height — Foreground image height
scalar

Lock Aspect Ratio — Option to maintain foreground image aspect ratio
`on` (default) | `off`

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
