Enumerated Constant

Generate enumerated constant value

expand all in page
  • Enumerated Constant block

Libraries:
Simulink / Sources
HDL Coder / Sources

Description

The Enumerated Constant block outputs a scalar, array, or matrix of enumerated values. You can also use the Constant block to output enumerated values, but it provides block parameters that do not apply to enumerated types, such as Output minimum and Output maximum. When you need a block that outputs only constant enumerated values, use Enumerated Constant rather than Constant. For more information, see Simulink Enumerations.

Examples

Control Algorithm Execution Using Enumerated Signal

Control Algorithm Execution Using Enumerated Signal

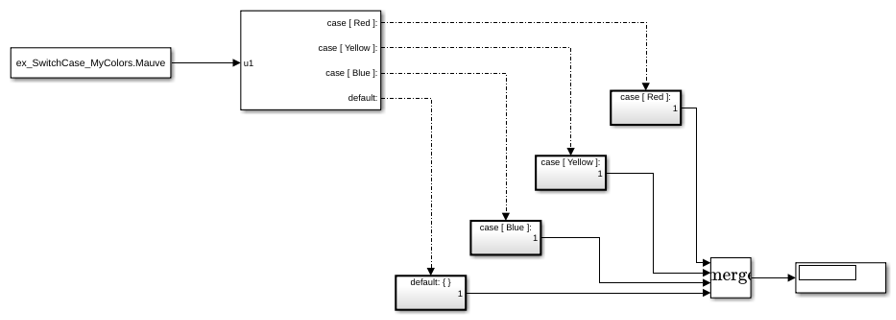

Use a signal of an enumerated data type to control the execution of a block algorithm.

Data Typing in Simulink

Data Typing in Simulink

Use data types in Simulink®. The model used in this example converts a double-precision sine wave having an amplitude of 150 to various data types and displays the converted signals on two scopes.

Switch Between Sets of Parameter Values During Simulation and Code Execution

Switch Between Sets of Parameter Values During Simulation and Code Execution

Switch between independent sets of values for the same block parameters by storing the sets in an array of structures.

Ports

Output

expand all

Enumerated constant value, specified as a scalar, vector, or matrix.

Data Types: enumerated

Parameters

expand all

Specify the enumerated type from which you want the block to output one or more values. The initial value, Enum:SlDemoSign, is a dummy enumerated type that prevents a newly cloned block from causing an error. To specify the desired enumerated type, select it from the drop-down list or enter Enum:ClassName in the Output data type field, where ClassName is the name of the MATLAB® class that defines the type.

Programmatic Use

Block Parameter: OutDataTypeStr
Type: character vector
Values: 'Enum:<ClassName>'
Default: 'Enum: SlDemoSign'

Select the category of data to specify.

Enumerated

Enumerated data types. Selecting Enumerated enables a second menu/text box to the right, where you can enter the class name.

Specify the value or values that the block outputs. The output of the block has the same dimensions and elements as the Value parameter. The initial value, SlDemoSign.Positive, is a dummy enumerated value that prevents a newly cloned block from causing an error.

To specify the desired enumerated values, select from the drop-down list or enter any MATLAB expression that evaluates to the desired result, including an expression that uses tunable parameters. All specified values must be of the type indicated by the Output data type. To specify an array that includes every value in the enumerated type, use the enumeration function.

Programmatic Use

Block Parameter: Value
Type: character vector
Values: 'SlDemoSign.Positive' | 'SlDemoSign.Zero' | 'SlDemoSign.Negative' | 'Enum:<ClassName.Value>'
Default: 'SlDemoSign.Positive'

Specify the interval between times that the block output can change during simulation (for example, due to tuning the Value parameter). The default value of inf indicates that the block output can never change. A sample time of inf speeds the simulation and generated code by avoiding the need to recompute the block output. For more information, see Specify Sample Time.

Programmatic Use

Block Parameter: SampleTime
Type: character vector
Values: scalar | vector
Default: 'inf'

Block Characteristics

Data Types

enumerated

Direct Feedthrough

no

Multidimensional Signals

yes

Variable-Size Signals

no

Zero-Crossing Detection

no

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

PLC Code Generation
Generate Structured Text code using Simulink® PLC Coder™.
