Analyze Simulation Execution Using Simulink Profiler

This example shows how to use the Simulink Profiler to examine the execution of the model slAccelDemoF14 in simulation. Use the Simulink Profiler to identify and remove performance bottlenecks in your model and to analyze the effect of modifying block and model parameters on simulation execution.

To analyze your model and simulation configuration settings for potential performance problems, use the Performance Advisor. The Performance Advisor generates suggestions for specific changes that might improve performance and can automatically apply each change and verify whether performance improved. For more information, see Improve Simulation Performance Using Performance Advisor.

For more information about accelerator and rapid accelerator simulation, see What Is Acceleration?.

Open Example Model

Open the example, which contains the model slAccelDemoF14.

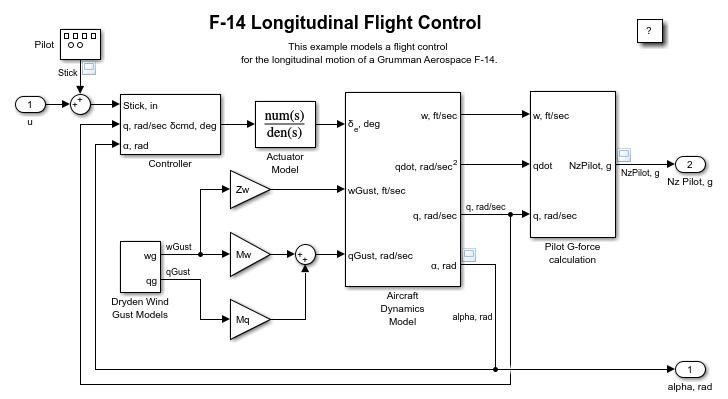

The model slAccelDemoF14.

To profile a model using the Simulink Profiler, you run a profiling simulation. The profiling simulation measures and logs information about the simulation execution. Because the extra monitoring and logging incurs some performance overhead compared to a typical simulation, you need to run a profiling simulation by using the Simulink Profiler in the Simulink Editor or by programmatically enabling the Simulink Profiler for the simulation.

Analyze Model Using Simulink Profiler in Simulink® Editor

To open the Simulink Profiler in the Simulink Editor, in the Simulink® Toolstrip, on the Debug tab, click the Performance button arrow and select Simulink Profiler.

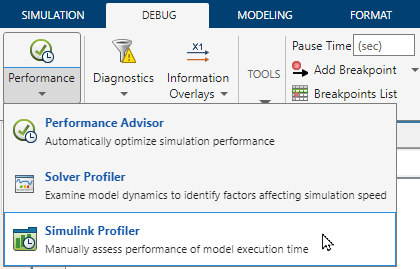

The Debug tab of the Simulink Toolstrip has the Performance list expanded with the pointer paused on the Simulink Profiler option.

To run the profiling simulation, in the Simulink Profiler, on the Profile tab, click Profile.

The Profiler Report pane displays the profiling results when the profiling simulation completes. By default, the Profiler Report pane displays the results using the model hierarchy view, with all nodes collapsed to show results only for the top model. To expand the results to view more detailed information, click the arrow (>)next to the row for the model slAccelDemoF14 in the table. Then, select a row in the table to view detailed profiling results for that model element in the Property Inspector.

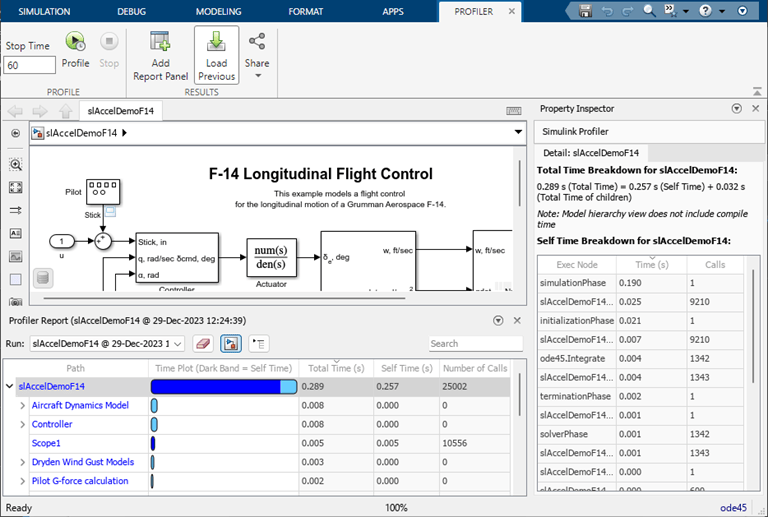

The Simulink Toolstrip has the Profile tab selected. The Property Inspector displays information from the profiling simulation in a panel on the right side of the Simulink Editor. The Profiler Report pane at the bottom of the Simulink Editor displays a summary of profiling results.

You can share the profiling reports you generate using the Simulink Profiler with others by saving the report as an HTML file or as a MAT-file. To save a profiling report:

  1. In the Profiler Report pane, from the Run list, select the profiling report you want to save.

  2. In the Profile tab, in the Results section, click Share. Then, select whether to generate an HTML report or export the profiling results to a MAT-file.

Programmatically Analyze Model Using Simulink Profiler

You can also analyze models using the Simulink Profiler programmatically.

To open or load the model programmatically, use the open_system or load_system function.

mdl = "slAccelDemoF14";

To programmatically enable the Simulink Profiler, you can:

  • Use the set_param function to enable the Profile parameter for the model. The Simulink Profiler remains enabled for simulation until you disable the Profile parameter.

  • Enable the Profile parameter for a specific simulation by specifying the parameter as a name-value argument for the sim function, setting the parameter on a SimulationInput object, or setting the parameter on a Simulation object.

For this example, run the profiling simulation by specifying the Profile parameter as a name-value argument for the sim function.

out = sim(mdl,Profile="on");

The profiling information is saved in the simulation metadata as a Simulink.profiler.Data object. Get the profiling results from the Simulink.SimulationOutput object that contains all the simulation results and metadata.

profresults = out.SimulationMetadata.TimingInfo.ProfilerData;

To save the profiling results in a MAT-file, use the save function.


To save the profiling results as an HTML report, use the generateReport function. The HTML report is saved in the current working directory with a name that includes the time the profiling simulation ran and the name of the model.


To analyze the results using the Profiler Report pane and the Property Inspector:

  1. Save the profiling results in a MAT-file.

  2. Open the Simulink Profiler.

  3. On the Profile tab, click Load Previous.

  4. Select the MAT-file with the profiling results.

  5. Click OK.

The Profiler Report pane shows the profiling results from the MAT-file.
