Power Analysis of Spring Mass Damper System

This example uses:

Powertrain Blockset Powertrain Blockset

This example shows how to analyze the mechanical power and energy of a spring mass damper system using functionality available with the Powertrain Blockset™. The model subsystems contain Power Accounting Bus Creator blocks that report system power and energy consumption across the spring mass damper system.

Run Simulation

Click Run to create an autoblks.pwr.PlantInfo object that analyzes the model energy consumption. Use the PwrUnits and EnrgyUnits properties to set the units.

SysName = 'powerAnalysis';
open(SysName);
SysPwrAnalysis = autoblks.pwr.PlantInfo(SysName);
SysPwrAnalysis.PwrUnits = 'kW';
SysPwrAnalysis.EnrgyUnits = 'MJ';

Use run method to turn on logging, run simulation, and add logged data to the object.

SysPwrAnalysis.run;

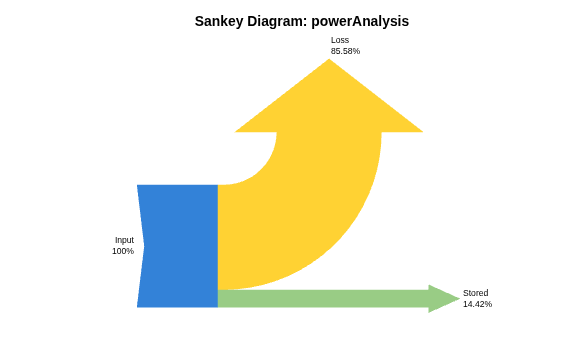

Overall Summary

Display the final energy values for each subsystem.

SysPwrAnalysis.dispSysSummary


      System Name        Efficiency    Energy Loss (MJ)    Energy Input (MJ)    Energy Output (MJ)    Energy Stored (MJ)
--------------------------------------------------------------------------------------------------------------------------
powerAnalysis                 0.158            -0.00162              0.00193                     0              0.000304
  Mass1Spring1Damper1         0.514           -0.000479             0.000984             -0.000385               0.00012
  Mass2Spring3Damper3         0.352            -0.00114              0.00175             -0.000477               0.00014
  Spring2Damper2              0.993            -5.7e-06             0.000862             -0.000812              4.43e-05

Write summary to spreadsheet.

SysPwrAnalysis.xlsSysSummary(fullfile(fileparts(which('GenerateEnergyReport')), 'EnergySummary.xlsx'))

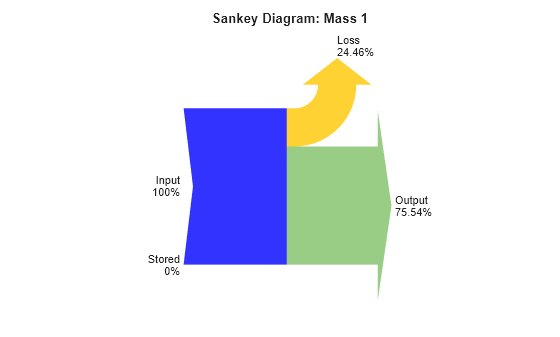

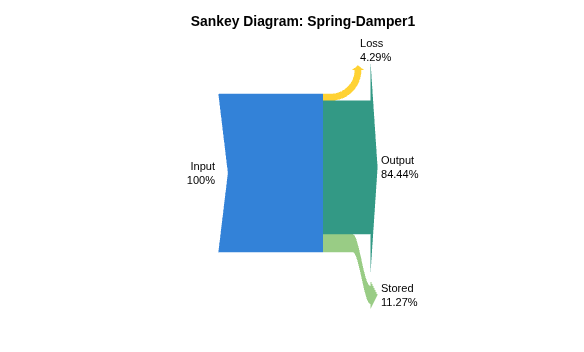

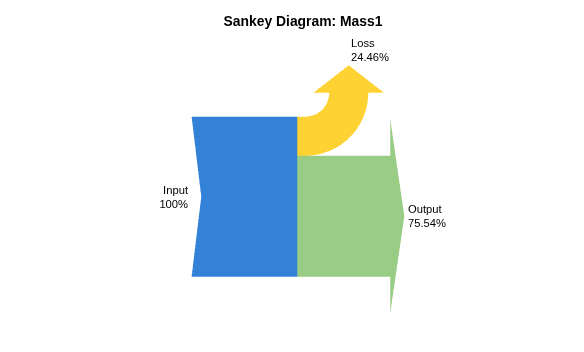

Subsystem1 Summary

SubSys1Name = 'powerAnalysis/Mass1Spring1Damper1';
SubSys1PwrAnalysis = SysPwrAnalysis.findChildSys(SubSys1Name);
SubSys1PwrAnalysis.dispSignalSummary;


powerAnalysis/Mass1Spring1Damper1
Average Efficiency = 0.51

       Signal         Energy (MJ)
-----------------------------------
Inputs                   0.000984
  Transferred            0.000417
                         0.000413
                         3.88e-06
  Not transferred        0.000567
                         0.000567
                                0
Outputs                 -0.000385
                        -0.000381
                        -3.46e-06
Losses                  -0.000479
                        -0.000434
                        -4.46e-05
Stored                    0.00012
                         0.000117
                         3.47e-06

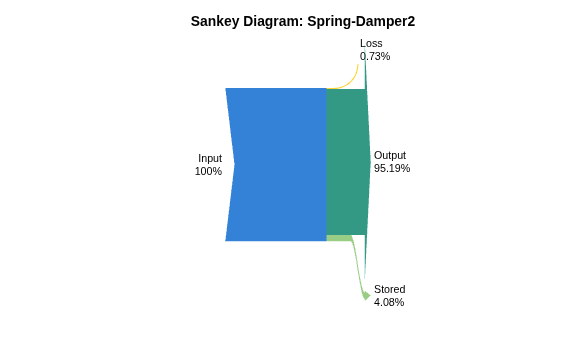

Subsystem2 Summary

SubSys2Name = 'powerAnalysis/Spring2Damper2';
SubSys2PwrAnalysis = SysPwrAnalysis.findChildSys(SubSys2Name);
SubSys2PwrAnalysis.dispSignalSummary;


powerAnalysis/Spring2Damper2
Average Efficiency = 0.99

       Signal         Energy (MJ)
-----------------------------------
Inputs                   0.000862
  Transferred            0.000862
                         0.000469
                         7.97e-06
                         0.000381
                         3.46e-06
  Not transferred               0
                                0
Outputs                 -0.000812
                        -0.000393
                        -1.86e-06
                        -0.000413
                        -3.88e-06
Losses                   -5.7e-06
                         -5.7e-06
Stored                   4.43e-05
                         4.43e-05

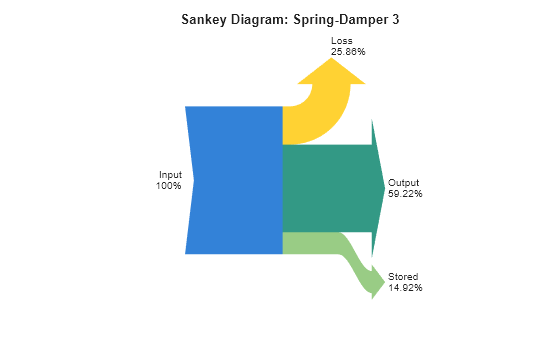

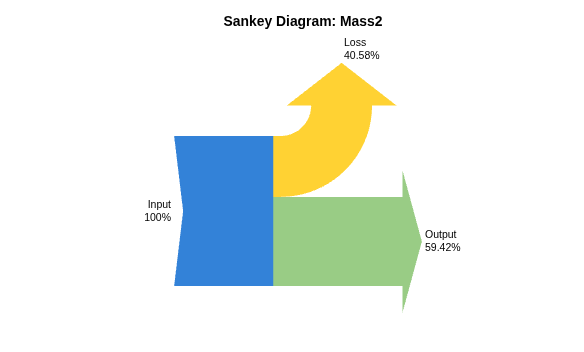

Subsystem3 Summary

SubSys3Name = 'powerAnalysis/Mass2Spring3Damper3';
SubSys3PwrAnalysis = SysPwrAnalysis.findChildSys(SubSys3Name);
SubSys3PwrAnalysis.dispSignalSummary;


powerAnalysis/Mass2Spring3Damper3
Average Efficiency = 0.35

       Signal         Energy (MJ)
-----------------------------------
Inputs                    0.00175
  Transferred            0.000395
                         0.000393
                         1.86e-06
  Not transferred         0.00136
                          0.00136
                                0
Outputs                 -0.000477
                        -0.000469
                        -7.97e-06
Losses                   -0.00114
                        -0.000894
                        -0.000244
Stored                    0.00014
                         0.000147
                        -7.46e-06

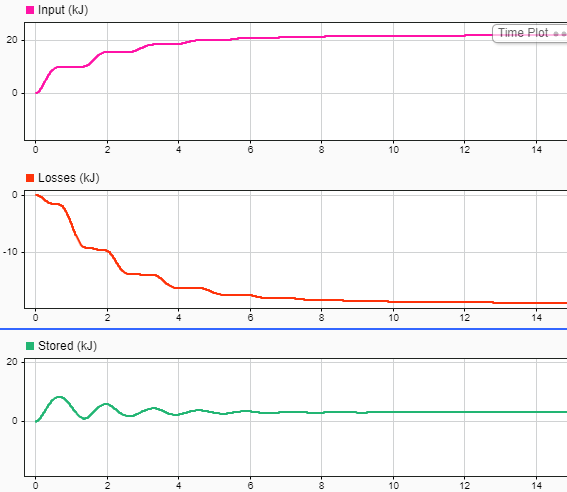

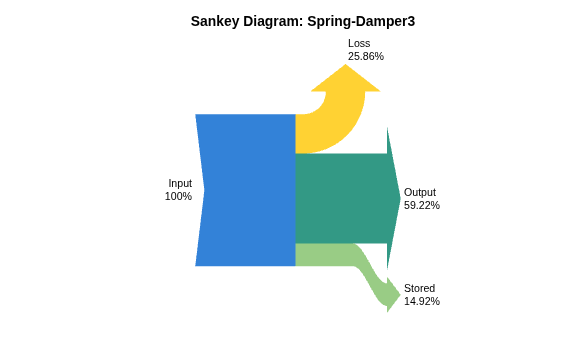

SDI Plots

SysPwrAnalysis.sdiSummary({SubSys1Name, SubSys2Name, SubSys3Name})
