Linearize Models Using Different Rate Conversion Methods

The scdmrate Simulink model contains five blocks with various sample times. All linear systems in this model are in zero-pole-gain format.

Open the Simulink model.

mdl = 'scdmrate';
open_system(mdl)

In this example, you linearize the model between the output of the sysTs1 block and the output of the Zero-Order Hold block. To compute an open-loop response, you add a loop opening at the output of the Zero-Order Hold block.

io(1) = linio('scdmrate/sysTs1',1,'input');
io(2) = linio('scdmrate/Zero-Order Hold',1,'openoutput');

Using these linearization points, the linearization effectively results in the linearization of the model scdmrate_ol.

open_system('scdmrate_ol')

When linearizing a model that contains both continuous and discrete signals, the software first converts the continuous signals to discrete signals, using a rate conversion method. To specify the rate conversion method, create a linearizeOptions object and set the RateConversionMethod property. The default rate conversion method is zero-order hold ('zoh').

opt = linearizeOptions;
opt.RateConversionMethod

ans =

    'zoh'

Linearize the model using the default zero-order hold method. Since the linearization includes the Zero-Order Hold block, the sample time of the linearization is 0.01 seconds.

syszoh = linearize(mdl,io,opt);

Change the rate conversion method to the Tustin (Bilinear transformation) method and linearize the model using this method. The sample time of the resulting model is also 0.01 seconds.

opt.RateConversionMethod = 'tustin';
systust = linearize(mdl,io,opt);

You can also create a continuous-time linearized model by specifying the sample time as 0 in the linearizeOptions object. The rate conversion method creates a single discrete-time linearized model and then converts the discrete-time model to a continuous-time model.

opt.SampleTime = 0;
sysc = linearize(mdl,io,opt);

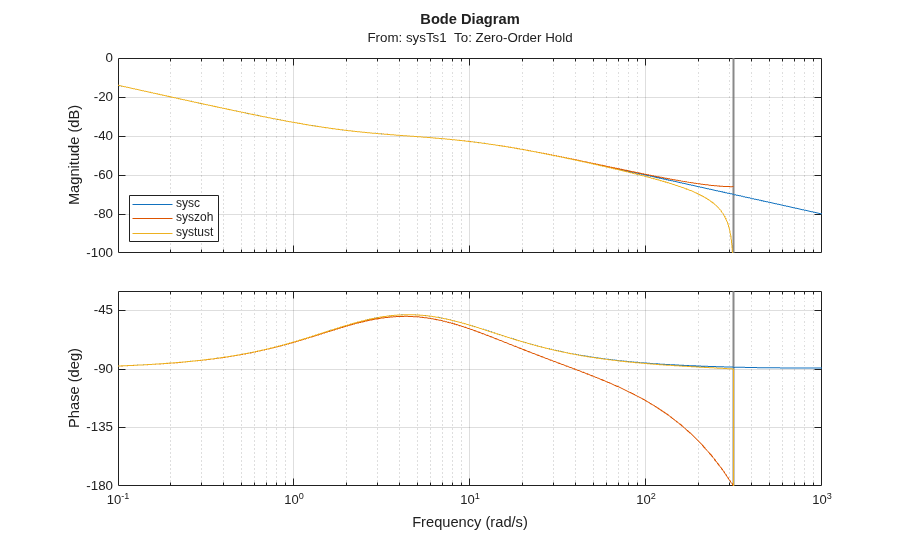

The Bode plots for the three linearizations show the effects of the two rate conversion methods. In this example, the Tustin rate conversion method gives the most accurate representation of the phase response of the continuous-time system and the zero-order hold gives the best match to the magnitude response.

bp = bodeplot(sysc,syszoh,systust);
bp.YLimits = {[-100 0];[-180 -30]};
legend('sysc','syszoh','systust','Location','SouthWest');
grid on
